How to Unfix a Component in Solidworks?
To Fix or Float an Assembly Component: Right-Click the Component in the Graphics Area or the Component's Name in the Featuremanager Design Tree. Select Fix or...

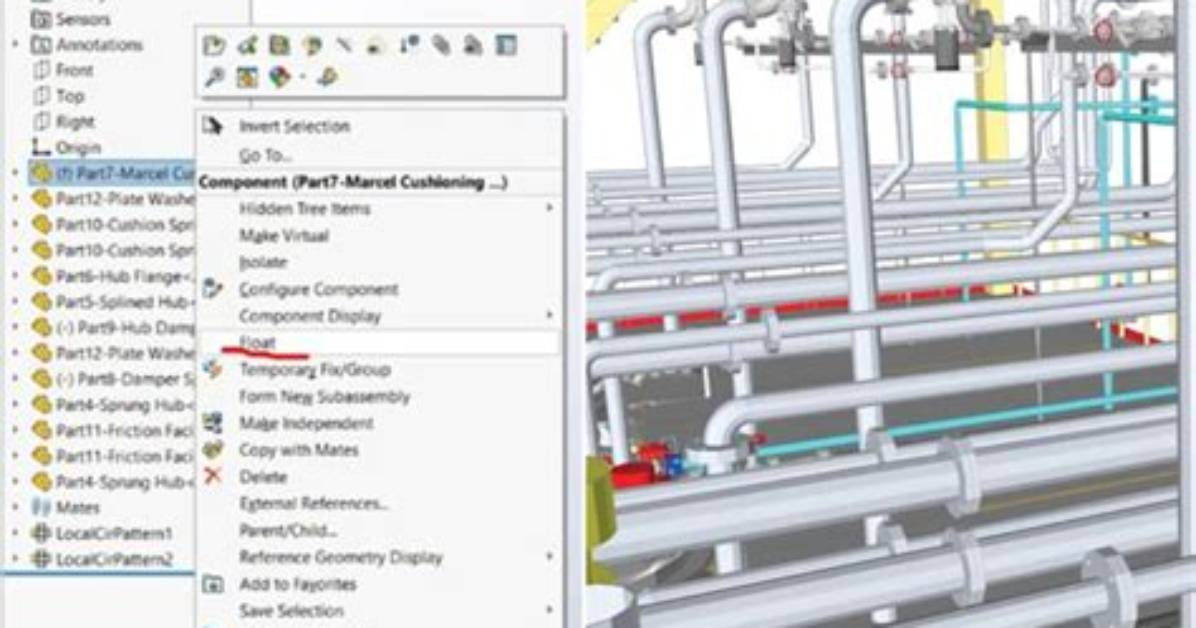

To fix or float an assembly component:
- Right-click the component in the graphics area or the component's name in the FeatureManager design tree.
- Select Fix or Float.
- In assemblies with multiple configurations, select This Configuration, All Configurations, or Specified Configurations.
How do you align components in Solidworks?
Align Components PropertyManager
- Add the component by dragging it in the graphics area.
- Right-click the component and click Align Components.
How do you rotate a fixed component in Solidworks?
Click Rotate Component (Assembly toolbar) or Tools > Component > Rotate. The Rotate Component PropertyManager appears, and the pointer changes to . Select one or more components in the graphics area. Select a component and drag in any direction.
