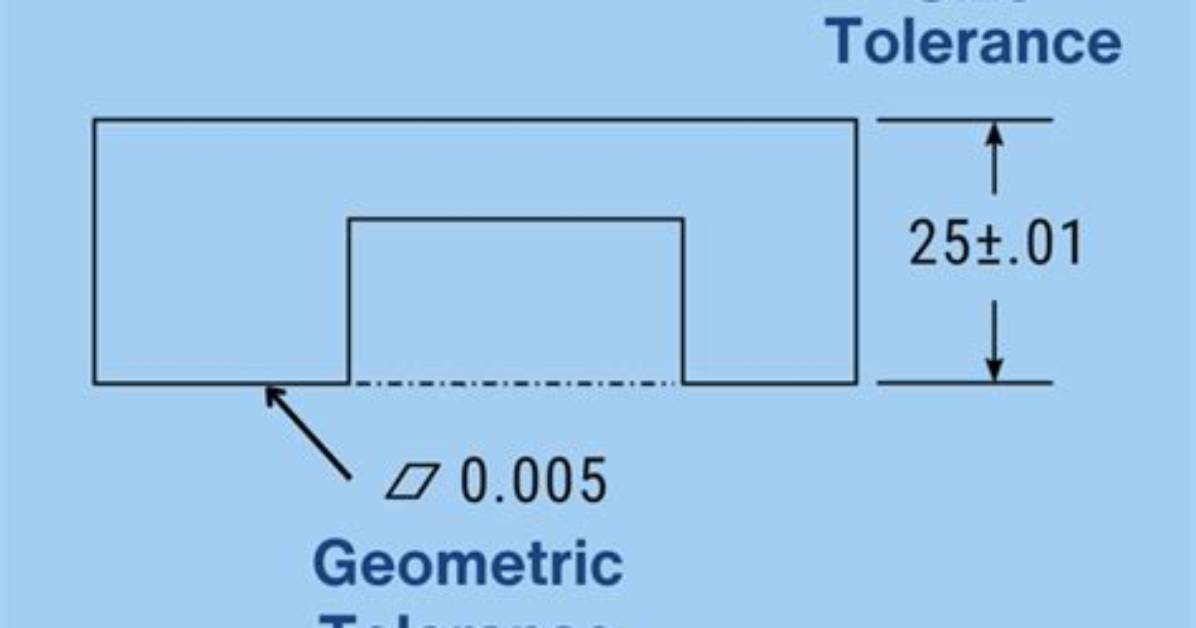

How Tolerance Are Specified?

ASME Y14. 5M defines tolerance as “the total amount a specific dimension is permitted to vary.” Tolerance is the difference between the maximum and minimum limits. This can be shown as upper and lower limits or an allowable amount above and below a nominal dimension.

What is a specific tolerance?

Specific Tolerances are used for specific goals in your PCB Project. ... Of course this has to be visible in your PCB data. We will analyse your data accordingly and report back in case your requirements should not match our manufacturing capabilities or we need to introduce extra costs need to achieve your request.

Why is tolerance specified?

Explanation: Tolerances are provided to the parts because variations in the material properties introduce errors and production machines themselves have inherent inaccuracies. Another reason to introduce tolerance is that it is not possible to make perfect settings by operator so some tolerances are provided.
