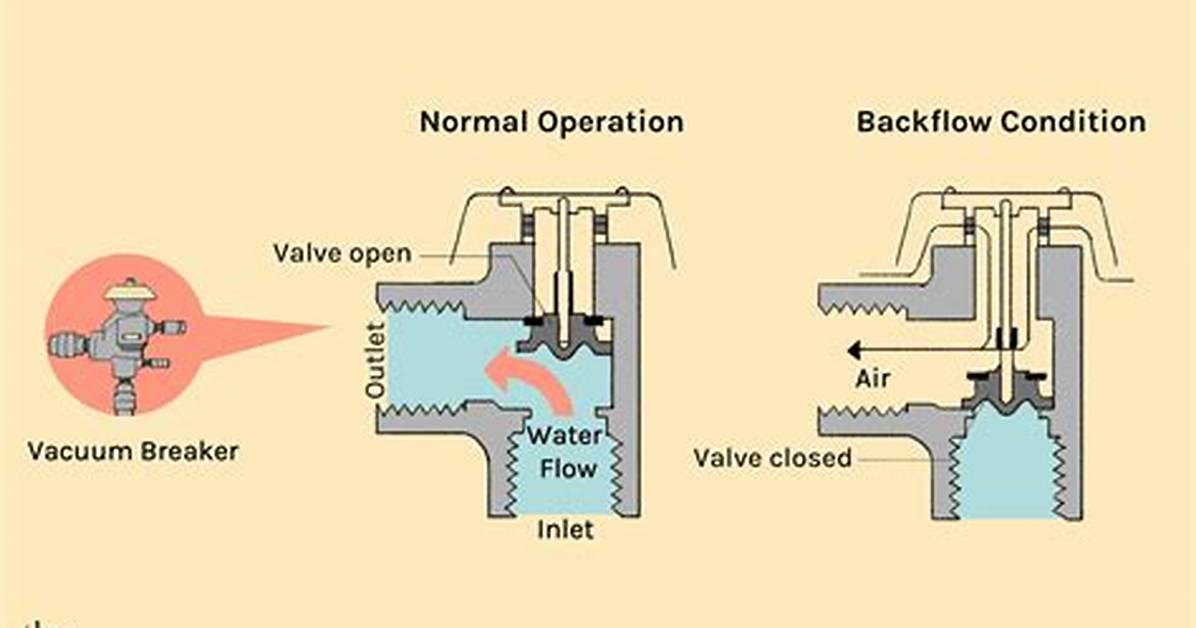

How Vacuum Breakers Work

Any place where water is supplied for any use other than drinking water needs a vacuum breaker installed. State and federal laws require vacuum breakers be installed on outside spigots, commercial dishwashing machines, mop-sink faucets, and dish sink sprayer hose spigots.

Where do you put a vacuum breaker?

The vacuum breaker must be installed with the supply connected to the bottom inlet of the vacuum breaker. An atmospheric vacuum breaker must be installed downstream of the last valve in the water supply line. The Uniform Plumbing Code requires that “potable water outlets with hose attachments

Does vacuum breaker reduce pressure?

No, BK’s back flow preventer may restrict the pressure some – usually it is not noticeable – a pressure regulator is recommended to control water pressure.

Is a vacuum breaker the same as a backflow preventer?

Is vacuum breaker same as backflow preventer? No – vacuum breakers are not the same thing as a backflow preventer. A pressure vacuum breaker is much less reliable and do not provide as much protection as a reduced pressure zone assembly.

Is a vacuum breaker supposed to leak water?

A worn-out vacuum breaker is usually the culprit

When hose connection vacuum breakers start to spray water, it’s a sign they need replacing—and for that you’ll need a metal drill bit and a steady hand.

How high should a vacuum breaker be?

Vacuum breakers shall be installed not less than 6 inches (152 mm) above the flood level rim of the fixture or device in accordance with Section 608. The flood level rim of hose connections shall be the maximum height at which any hose is utilized.

Does a vacuum breaker prevent freezing?

Frost-free sillcocks with an integral vacuum breaker

You should be able to leave the water on to these faucets all year ’round without them freezing. A properly installed frost-free sillcock will have a slight downward pitch, so that when the water is turned off, the water will all drain out of the stem (below).

Why do vacuum breakers fail?

The internal components of a pressure vacuum breaker can become damaged by freezing and through regular use over time. A clear sign that something is not working properly is leaking from under the bell or bonnet assembly of the valve.

How do you test a vacuum pressure breaker?

SLOWLY open the bleed high valve (high valve on a 3-valve test kit) no more than ¼ turn, dropping the pressure slowly. Record pressure reading when the air inlet valve opens. It should be 1 PSI or higher.

What are the 2 types of prevention devices?

There are two different types of testable backflow prevention devices that are commonly specified — a reduced pressure zone backflow device and a double check backflow device.

What is hose bib vacuum breaker?

A hose vacuum breaker (HVB) is a simple device that screws onto the hose threads on your hose bibb. It, in turn, has male hose threads onto which you can attach your garden hose. Use of your garden hose with an HVB is no different than without one.

What is a vacuum breaker vent?

Prevent liquid from mixing or leaving your pipeline by air and vacuum conditions. CSI’s stock of vacuum breakers provide relief in process lines along with the latest in sanitary design and cleanability.
