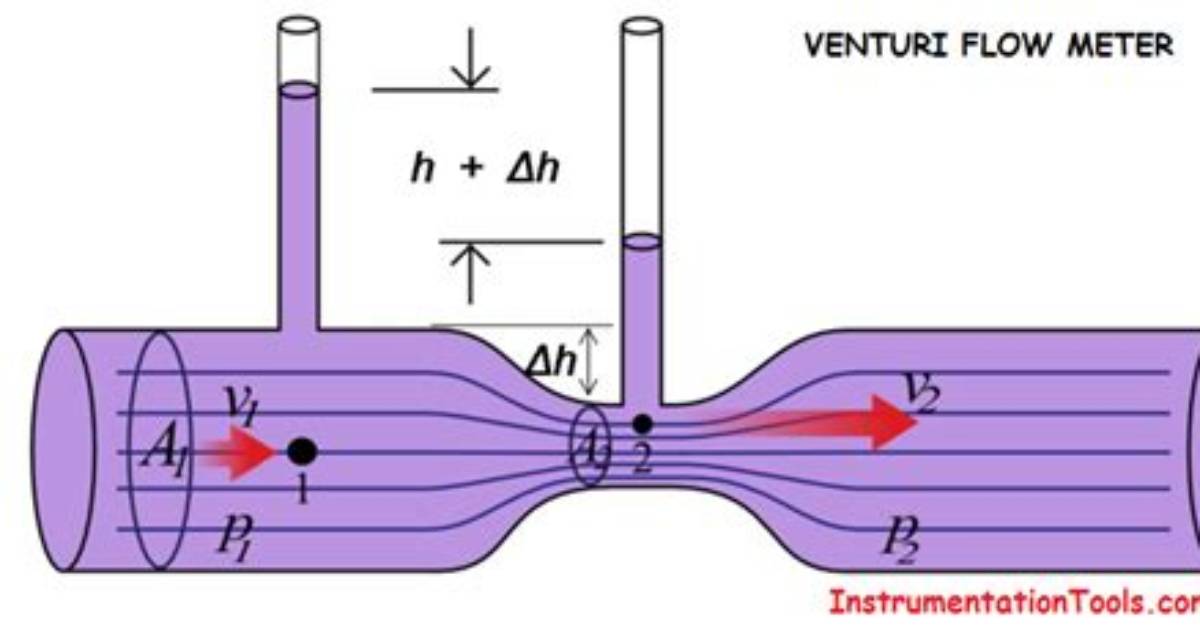

How Venturi Meter Works?
A Venturi Works by Measuring the Difference in Pressure at Two Different Locations. the Pressure Difference Is Created by Reducing the Diameter of the Pipe...
A venturi works by measuring the difference in pressure at two different locations. The pressure difference is created by reducing the diameter of the pipe causing the fluid to flow faster. The fast moving fluid has a lower pressure than the slower fluid in the larger section of the venturi.
How is Venturi meter used for flow measuring?
A Venturi meter is used to measure the flow rate through a tube. It is based on the use of the Venturi effect, the reduction of fluid pressure that results when a fluid runs through a constricted section of pipe. ... - downstream we have a flow through a pipe section of area A1, with a flow velocity v1, and pressure p1.
What is the Venturi effect and how does it work?
The Venturi effect states that in a situation with constant mechanical energy, the velocity of a fluid passing through a constricted area will increase and its static pressure will decrease. The effect utilizes both the principle of continuity as well as the principle of conservation of mechanical energy.
