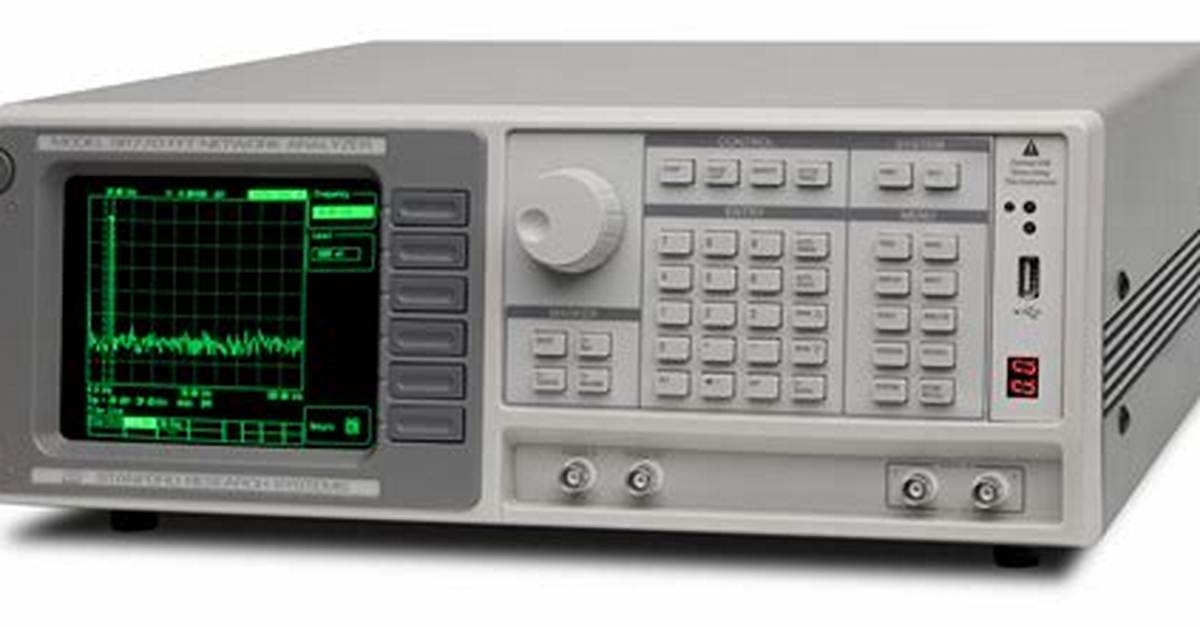

In Fft Spectrum Analyzer the Filter Is Used to?
To Overcome This Problem, the Analyzer Digitally Filters and Decimates the Incoming Data Samples (At 256 kHz) to Limit the Bandwidth and Reduce the Number of...
To overcome this problem, the analyzer digitally filters and decimates the incoming data samples (at 256 kHz) to limit the bandwidth and reduce the number of points in the FFT. This is similar to the anti-aliasing filter at the input except the digital filter's cutoff frequency can be changed.
Which filter is used in spectrum analyzer?
Low-pass filters are often used in radio transmitters, audio devices, and communication systems. They can be viewed as a two-port network when using a spectrum analyzer to characterize. The following steps are used to measure the low-pass filter characteristics using the Siglent SSA3000X spectrum analyzer.
Must Read
What is a spectrum analyzer used for?
A spectrum / signal analyzer measures the magnitude of an input signal versus frequency within the full frequency range of the instrument. The primary use is to measure the power of the spectrum of known and unknown signals.
