In Which Condition Is Strap Footing Provided?

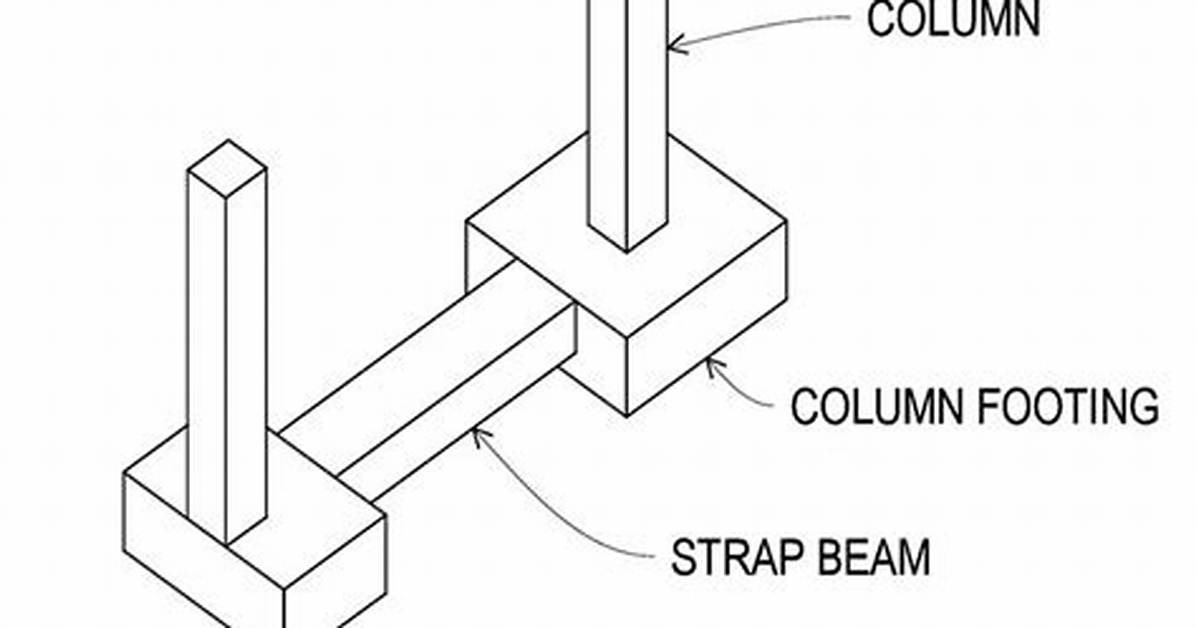

Strap Footing. When the Independent Footings of Two Columns Are Connected by a Beam, It Is Called a Strap Footing. It Is Used When the Distance Between the...
.
Also asked, what are the assumptions in design of strap footing?
Design assumptions Strap does not provide bearing. Strap is ridge enough to transfer moment from one footing to the other.
Subsequently, question is, what is the difference between strap footing and combined footing? A strap footing is more economical than a combined footing when the allowable soil pressure is relatively high and distance between the columns is large. It supports two columns as shown in figure below. It is used when the two column are so close to each other that their individual footings would overlap.
Likewise, what is the use of strap?
strap. The definition of a strap is something used to carry, bind, fasten or connect. An example of a strap is a narrow piece of leather to carry a purse over the shoulder; a shoulder strap.
What are foundation straps?
Foundation Straps offer an economical, one-piece method of achieving a continuous load path from a 2x8 to 2x14 dimensional rim joist through concrete block to foundation. All models require a 6" embedment into concrete footings.
How do you make a strap footing?
- 1- Select trial footing depths.
- 2- Proportion footing dimensions.
- 3- Evaluate factored net soil pressure under the footings.
- 4- Design column footings for beam shear and moment.
- 5- Design the strap beam for moment and shear.
