Is a King Stud Necessary

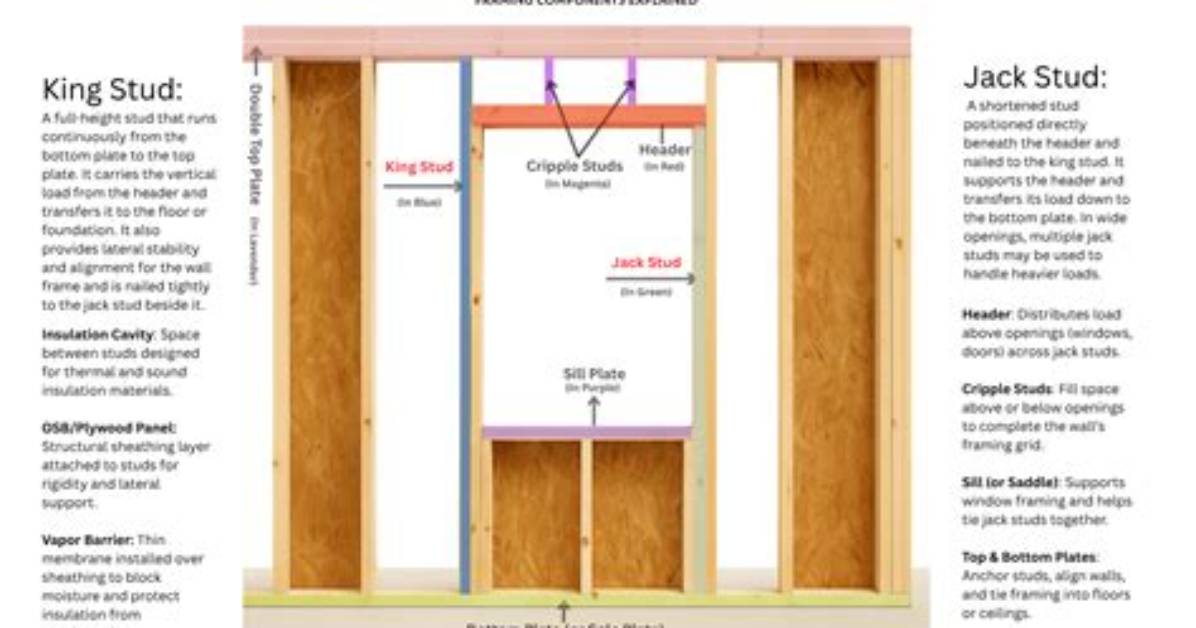

King Studs A header needs a full or king wall stud on each side of the opening, extending from the bottom wall plate to the top wall plate. These can be regular studs or special studs added if the regular spacing doesn’t conform to the door opening.

What do cripple studs do?

A cripple stud is located above a door or window or below a window. A cripple rafter runs from hip to valley on a roof or is cut short to allow for an opening such as a chimney or skylight. Cripple studs are non-structural but provide a nailing base for siding or interior wall coverings.

How thick should a header be?

Measure the width of your door frame. Most door frames that are 4 feet wide or less require a 2-by-6 header. Between 4 and 5 feet, the header should be built 2 inches wide and 8 inches long while a larger opening needs a header that is 2-by-12. When in doubt, use 2-by-12-inch headers.
