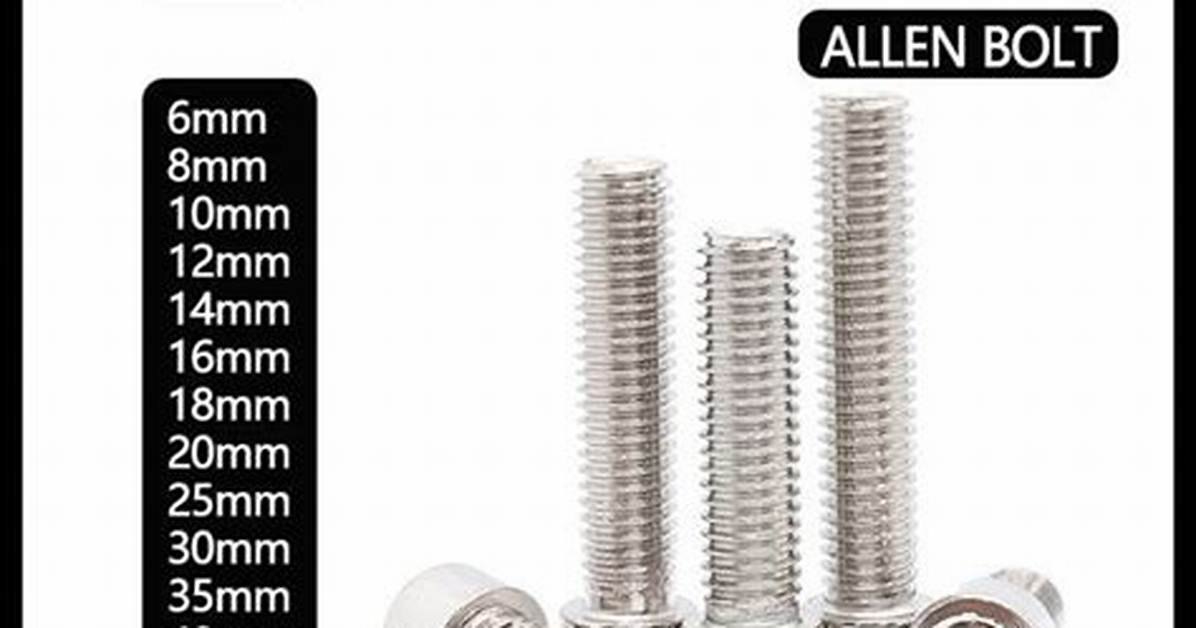

Is M5 Bolt 5Mm?
M5 (5Mm) Thread Size. What Is the Diameter of a 5 Mm Bolt? Product Details Thread Density: Coarse Diameter: 5Mm Thread Pitch: 0.8Mm Length: 60Mm What Sizes Do...
M5 (5mm) Thread Size.
What is the diameter of a 5 mm bolt?
| Product details | |
|---|---|
| Thread density: | Coarse |
| Diameter: | 5mm |
| Thread pitch: | 0.8mm |
| Length: | 60mm |
What sizes do hex bolts come in?
Hex bolts range in size from 1/4″ to 4″ in diameter; 1/4″ to 1 1/2″ sizes are commonly available. Lengths range from 3/8″ to 24″; 1/2″ to 10″ is typical. From 3/8″ to 1″, lengths are in 1/8″ increments. Between 1″ and 4″, 1/4″ steps are common.
What size is M5 screw?
Metric clearance and tapping drill hole sizes.
| Size | Clearance Hole mm | Tapping Drill (std Pitch) |
|---|---|---|
| M5 | 5.5 | 4.2 mm |
| M6 | 6.5 | 5.0 mm |
| M8 | 9 | 6.75 mm |
| M10 | 11 | 8.5 mm |
Does M4 mean 4mm?
At the threaded bit, an M4 would be 4mm across.
What size is M4 in MM?
ISO Metric Machine Screw Thread Dimensions
| Thread Size | Nominal Diameter (mm) | Thread Pitch (mm) |
|---|---|---|
| M3 | 3.0 | 0.50 |
| M3.5 | 3.5 | 0.60 |
| M4 | 4.0 | 0.70 |
| M4.5 | 4.5 | 0.75 |
Is hex head bolt?
Hex bolts, also called hexagon screw head bolts, hex cap bolts, hex-cap screws, or machine bolts, are a very common choice when it comes to construction and repair. Hexagon screw head bolts are made from a variety of materials to accommodate the wide range of applications in which hex cap bolts are used.
What size is a m36 bolt?
Metric Hex Bolt Dimensions
| NOMINAL SIZE (D) | BODY DIAMETER | ACROSS THE FLATS |
|---|---|---|
| m20 | 20.00 | 30.00 |
| m24 | 24.00 | 36.00 |
| m30 | 30.00 | 46.00 |
| m36 | 36.00 | 55.00 |
What diameter is M6 thread?
Thread Geometry – Metric Coarse
| Thread | Major Diameter | Pitch Diameter |
|---|---|---|
| M4 | 4.0 | 3.545 |
| M4.5 | 4.5 | 4.013 |
| M5 | 5.0 | 4.480 |
| M6 | 6.0 | 5.350 |
Is M4 and 4mm the same?
At the threaded bit, an M4 would be 4mm across. It’s a bit more accurate than that, everything from the diameter of the bolt without the thread to the shape of the thread is defined to a tolerance. …
What are the disadvantages of Hex Bolts?
The type of finish also affects friction, which affects torque. In addition, used hex bolts may produce a lower clamping force for the same torque value due to increased friction. Consequently, the connection will not be as “tight” as with a new bolt. Generally speaking, stressed bolts in critical applications should not be reused.
What is the function of a hex bolt?
The primary function of a hex bolt and nut is to fasten and join two different parts together. In pole line technology, they are standard on power line transmissions and overhead power lines. They function as fasteners for accessories on the power lines and pole line hardware.
