Jenkins Git Plugin Cannot Obtain ~/. Ssh/Config File
I'm Using Helm Jenkins Chart Pod Template for Agent Jenkins: Clouds: - Kubernetes: Name: "Kubernetes" serverUrl: "" skipTlsVerify: True Namespace: "Jenkins"...
I'm using helm Jenkins chart
Pod template for agent
jenkins:
clouds:
- kubernetes:
name: "kubernetes"
serverUrl: ""
skipTlsVerify: true
namespace: "jenkins"
jenkinsUrl: ""
jenkinsTunnel: "jenkins-agent:50000"
containerCapStr: 42
maxRequestsPerHostStr: 64
retentionTimeout: 5
connectTimeout: 10
readTimeout: 20
templates:
- name: "test"
label: "jenkins-agent"
# Enable whether the POD Yaml is displayed in each build log or not, `true` by default.
showRawYaml: true
volumes:
- hostPathVolume:
mountPath: "/var/run/docker.sock"
hostPath: "/var/run/docker.sock"
containers:
- name: "backend"
image: "mycustomimage"
privileged: true
alwaysPullImage: true
command: "/bin/sh -c"
args: "cat"
workingDir: "/home/jenkins/agent"
ttyEnabled: true
resourceRequestCpu: "500m"
resourceRequestMemory: "1Gi"
resourceLimitCpu: "2000m"
resourceLimitMemory: "2Gi"
imagePullSecrets:
- name: "registrysecret"
in the end of my dockerfile for "mycustomimage"
base image is debian:buster
RUN useradd -u $JENKINS_USER_UID $JENKINS_USER -m -d $JENKINS_HOME -G docker
USER $JENKINS_USER
RUN mkdir $JENKINS_HOME/.ssh && ssh-keyscan ssh.github.com > $JENKINS_HOME/.ssh/known_hosts
RUN echo "Host github.com\n Hostname ssh.github.com\n Port 443\n User git" > $JENKINS_HOME/.ssh/config
Issue is really tricky.
- If I'm using pipeline from SCM Jenkins can easily obtain JenkinsFile from the repo(that checkout is going through jenkins-master pod for sure) Than inside JenkinsFile I have next
pipeline {
agent {
node { label 'jenkins-agent'}
}
....
stage('Source Code Checkout') {
steps {
container('backend') {
git branch: 'main',
credentialsId: 'git_user_ssh',
url: '[email protected]:org/repo.git'
Jenkins always returns
[2022-08-27T22:03:06.716Z] stderr: ssh: connect to host github.com port 22: Connection timed out
[2022-08-27T22:03:06.716Z] fatal: Could not read from remote repository.
[2022-08-27T22:03:06.716Z]
[2022-08-27T22:03:06.716Z] Please make sure you have the correct access rights
[2022-08-27T22:03:06.716Z] and the repository exists.

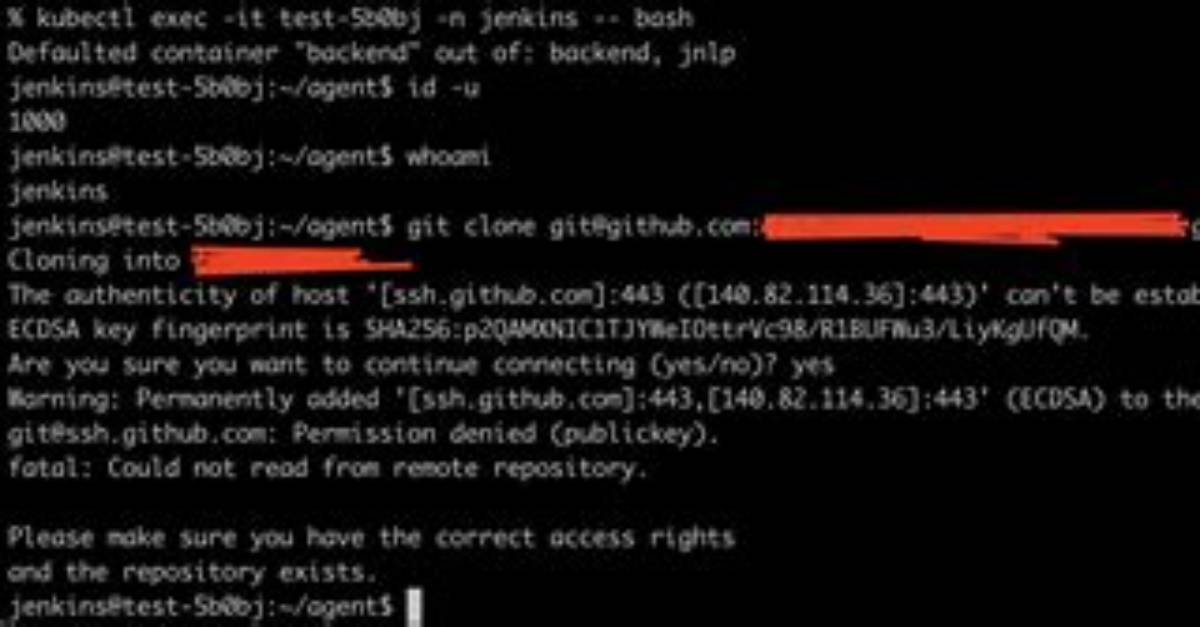

Checking user in container
Exec into pod and try same
as you can see ssh command obtains config and it is trying to clone repo using 443 port(not 22 as jenkins). Then I put private key in .ssh folder and clone works perfectly. That means there isn't network issue.
- Trying to clone in "Pipeline script" with git command in sh
stage('Source Code Checkout') {
steps {
container('backend') {
script{
sh "git clone [email protected]:org/repo.git"
result
- Trying to clone via GitSCM plugin in "Pipeline script"
stage('Source Code Checkout') {
steps {
container('backend') {
git branch: 'main',
credentialsId: 'git_user_ssh',
url: '[email protected]:org/repo.git'
result
jfyi
Could someone please explain to me the cause of problem? Or how to specify port while cloning repo through Jenkins. Thanks in advance.
Jenkins home as was requested
container('backend') {
script{
sh "cd $JENKINS_HOME || true"
sh """cd ~
pwd
ls -la
"""
2 Answers
If you use a non-standard port, specify it in the URL
git clone --help
...
ssh://[user@]host.xz[:port]/path/to/
I detected that next warning appears sometime
warning: JENKINS-30600: special launcher org.csanchez.jenkins.plugins.kubernetes.pipeline.ContainerExecDecorator$1@49c426f3; decorates RemoteLauncher[hudson.remoting.Channel@456b185:JNLP4-connect connection from 172.26.80.22/172.26.80.22:57964] will be ignored (a typical symptom is the Git executable not being run inside a designated container
So I decided to rebuild base jenkins/inbound-agent image with the following
FROM jenkins/inbound-agent:4.13-2-jdk11
ARG JENKINS_HOME=/home/jenkins
ENV JENKINS_HOME=$JENKINS_HOME
USER jenkins
RUN mkdir $JENKINS_HOME/.ssh && ssh-keyscan ssh.github.com > $JENKINS_HOME/.ssh/known_hosts
RUN echo "Host github.com\n Hostname ssh.github.com\n Port 443\n User git" > $JENKINS_HOME/.ssh/config
and.. git checkout is working for now. I don't understand how jnlp container influences on checkout inside another container based on my "mycustomimage" image.
