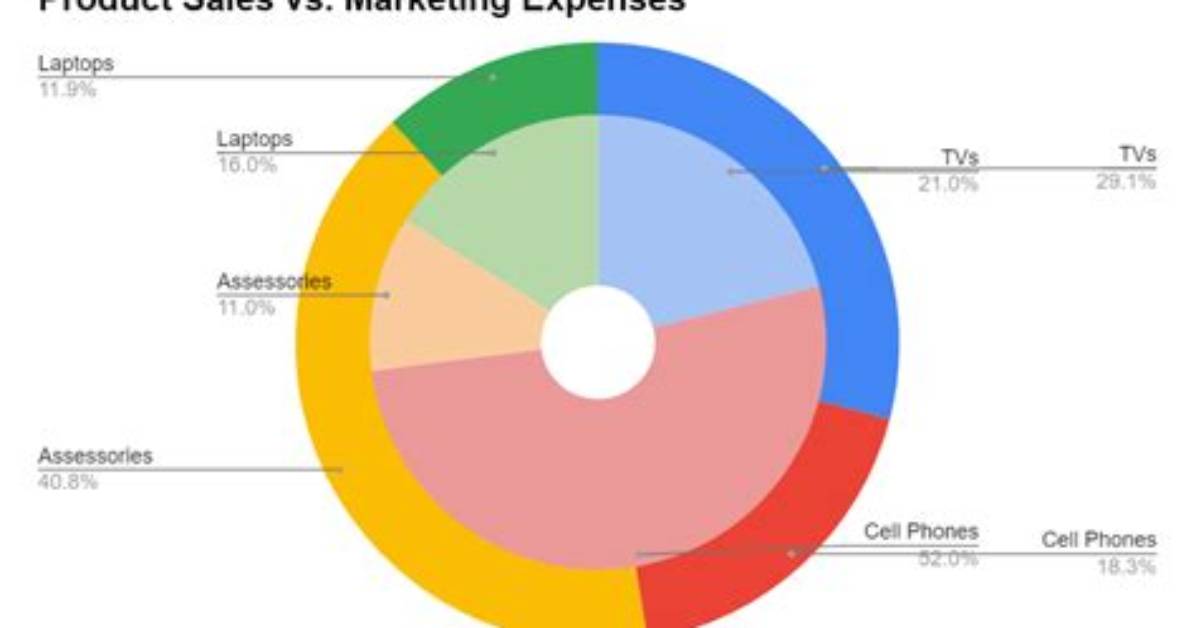

Multi-Level Nested Pie Chart in Google Sheets [Duplicate]

dynamic fx:

=ARRAYFORMULA({TRANSPOSE(QUERY({A1:C}, "select sum(Col3),Col1 where Col1 is not null group by Col1 label sum(Col3)'Base Pie'"));
 {"♀", IFERROR(1/(1/TRANSPOSE(MMULT(TRANSPOSE(IF(SEQUENCE(COUNTUNIQUE(A2:A))<SEQUENCE(1, COUNTUNIQUE(A2:A)),
 QUERY({A2:C}, "select sum(Col3) where Col1 is not null group by Col1 label sum(Col3)''"), )*1), SEQUENCE(COUNTUNIQUE(A2:A), 1, 1, )))));
 QUERY(QUERY({A2:C, ROW(A2:A)}, "select Col2,max(Col3) where Col3 is not null group by Col4,Col2 pivot Col1"), "offset 1", )};
 {"♂", IFERROR(1/(1/TRANSPOSE(MMULT(TRANSPOSE(IF(SEQUENCE(COUNTUNIQUE(A2:A))>SEQUENCE(1, COUNTUNIQUE(A2:A)),
 QUERY({A2:C}, "select sum(Col3) where Col1 is not null group by Col1 label sum(Col3)''"), )*1), SEQUENCE(COUNTUNIQUE(A2:A), 1, 1, )))))}})

• the formula takes data in A:C range and creates all necessary steps, columns and rows that will feed pie charts.

• rows labeled ♀♂ serve as pie chart ratio correctors

• column E can be used as a subcategory labeling system if needed

• in the same manner row 3 can be used as labels for base pie

• first, we create a base pie chart (from the black row) which will serve as background:

• next, for each colored column we create a separate pie chart that we overlay on top of the base pie chart. note that colors and sub-colors needs to be selected manually for each slice by double-clicking a given slice and selecting either color or none in the case of ♀♂ slices

and repeat for the next column...

demo spreadsheet

E2:

=QUERY({A2:C}, "select Col1,sum(Col3) where Col1 is not null group by Col1 label sum(Col3)''")

G2:

={FILTER(B2:C, A2:A=E2); "", SUM(FILTER(B2:C, A2:A<>E2))}

I2:

={"", SUM(FILTER(C2:C, A2:A=E2)); FILTER(B2:C, A2:A=E3); "", SUM(FILTER(B2:C, A2:A=E4))}

K2:

={"", SUM(FILTER(B2:C, A2:A<>E4)); FILTER(B2:C, A2:A=E4)}
