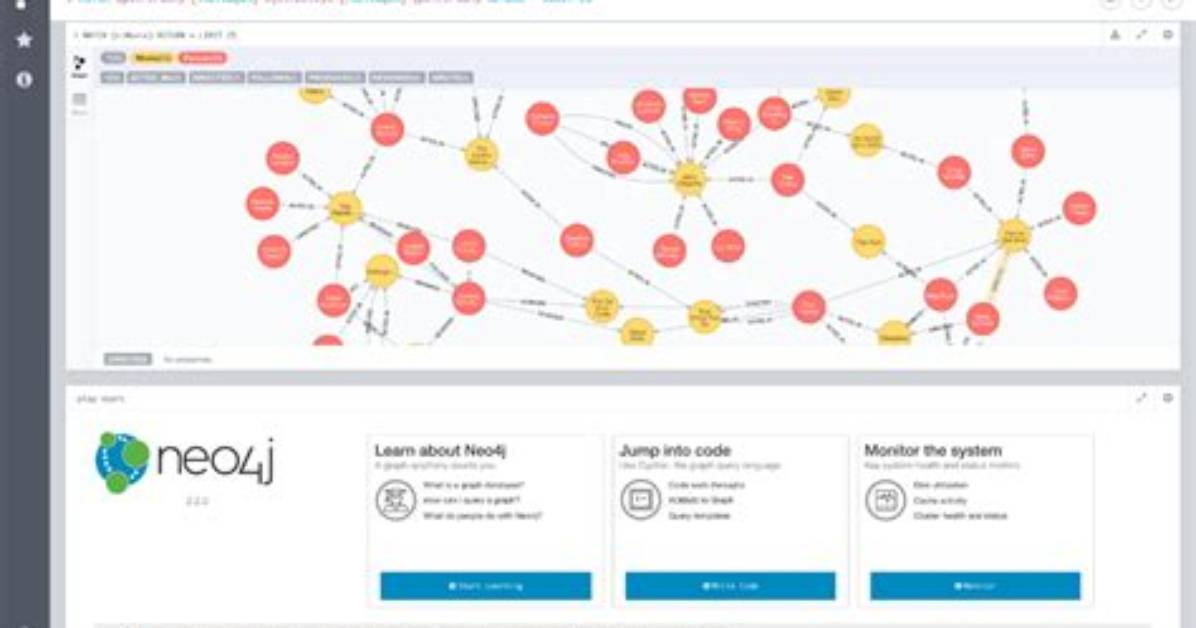

Neo4J Graph Database Queries

In the previous blog post, where we introduced Neo4j. Here we explain queries.

First, start the server then open the shell:

cd neo4j bin
./neo4j start
./cypher-shell   -a bolt://localhost:7687  -u neo4j  -p xxx

(This article is part of our Data Visualization Guide. Use the right-hand menu to navigate.)

Create Node and Relations

Here we create two nodes. They each have label Friends and a name property. Relations both can have properties can have properties too.

CREATE (x:Friends { name: 'Walker' })
CREATE (y:Friends { name: 'Stephen' })
return x,y;
+------------------------------------------------------------+
| x                           | y                            |
+------------------------------------------------------------+
| (:Friends {name: "Walker"}) | (:Friends {name: "Stephen"}) |
+------------------------------------------------------------+
1 row available after 15 ms, consumed after another 0 ms
Added 2 nodes, Set 2 properties, Added 2 labels

Note: Spelling and case is important. Neo4j give you no warning if anything is spelled wrong. So pay attention when creating, for example, relationships as they will be empty with no warning given. So look for created x relationships and x rows available after each statement to make sure it worked.

We then create a relationship (called an edge) from Stephen to Walker. We give this relation the arbitrary name Friend. We put letters x, y, and r in front of objects so that we can refer to them in subsequent steps. So it is shorthand notation. Plus it brings the created object into scope.

The procedure to create a relation is to bring the nodes together with a MATCH and WHERE statement, then issue the CREATE with a directional arrow, to indicate the direction of the relation, or a simple line, if it runs both ways. For example, if Stephen is a Friend of Walker then Walker is a Friend of Stephen. So the arrow could be a simple line.

You use double lines –, →, ← when you want to indicate direction in queries (i.e, MATCH) statement, but not in the creation statement.

MATCH (x:Friends),(y:Friends)
WHERE y.name = "Stephen" AND x.name = "Walker"
CREATE (x)-[r:Friend]->(y)
RETURN type(r);
+----------+
| type(r)  |
+----------+
| "Friend" |
+----------+

List all Friend Nodes

Now, let’s try different queries. This one lists lists all nodes, since we did not give it any WHERE condition.

match(n:Friends)
return n;
+------------------------------+
| n                            |
+------------------------------+
| (:Friends {name: "Walker"})  |
| (:Friends {name: "Stephen"}) |
+------------------------------+

List all Friend relations.

MATCH (a:Friends)-[:Friend]->(b:Friends)
RETURN a.name, b.name;
+----------------------+
| a.name   | b.name    |
+----------------------+
| "Walker" | "Stephen" |
+----------------------+

Make Raj friends of Stephen.

CREATE (y:Friends { name: 'Raj' });
MATCH (x:Friends),(y:Friends)
WHERE y.name = "Stephen" AND x.name = "Raj"
CREATE (x)-[r:Friend]->(y)
RETURN type(r);

Make sure the command(mainly the MATCH statement) worked by paying attention to the numbers returned. Remember what we said about spelling errors and case.

1 row available after 3 ms, consumed after another 0 ms
Created 1 relationships

Show all friends relationships. Note it now includes the one we just added

MATCH (a:Friends)-[r:Friend]->(b:Friends)
RETURN a.name, b.name;
+----------------------+
| a.name   | b.name    |
+----------------------+
| "Walker" | "Stephen" |
| "Raj"    | "Stephen" |
+----------------------+

Add 1 more, Teresa, then make her a Friend with Raj.

CREATE (x:Friends { name: 'Teresa' })
return x;
MATCH (x:Friends),(y:Friends)
WHERE y.name = "Stephen" AND x.name = "Raj"
CREATE (x)-[r:Friend]->(y);
MATCH (x:Friends),(y:Friends)
WHERE y.name = "Raj" AND x.name = "Teresa"
CREATE (x)-[r:Friend]->(y)
RETURN type(r);

Below we shown are friends of friends who are not of each other. That would be Teresa and Stephen are not friends.

To put this in terms of mathematics, which might make it simpler to understand, we could say that we look for the intersection of the set u and notFriend and then applying WHERE NOT that find objects outside that intersection.

To recall what friends we have to make this easier to see, first:

Match (a:Friends)--(b)
return a,b;
+-------------------------------------------------------------+
| a                            | b                            |
+-------------------------------------------------------------+
| (:Friends {name: "Walker"})  | (:Friends {name: "Stephen"}) |
| (:Friends {name: "Stephen"}) | (:Friends {name: "Raj"})     |
| (:Friends {name: "Stephen"}) | (:Friends {name: "Raj"})     |
| (:Friends {name: "Stephen"}) | (:Friends {name: "Walker"})  |
| (:Friends {name: "Raj"})     | (:Friends {name: "Teresa"})  |
| (:Friends {name: "Raj"})     | (:Friends {name: "Stephen"}) |
| (:Friends {name: "Raj"})     | (:Friends {name: "Stephen"}) |
| (:Friends {name: "Teresa"})  | (:Friends {name: "Raj"})     |
+-------------------------------------------------------------+

The friends who.are-not-friends-of query lists Teresa and Stephen because Teresa is not a friend of Stephen. In other words, the first part of the query shows all relations for those people listed in variable u then it lists who is not in u.

Match (u:Friends)-[:Friend]->(:Friends)-[:Friend]->(notFriend:Friends)
WHERE NOT (u)-[:Friend]->(notFriend)
RETURN u, notFriend;
+------------------------------------------------------------+
| u                           | notFriend                    |
+------------------------------------------------------------+
| (:Friends {name: "Teresa"}) | (:Friends {name: "Stephen"}) |
| (:Friends {name: "Teresa"}) | (:Friends {name: "Stephen"}) |
+------------------------------------------------------------+
