Numpy, Dot Products on Multidimensional Arrays

I have some doubts on the numpy.dot product.

I define a matrix 6x6 like:

C=np.zeros((6,6))
C[0,0], C[1,1], C[2,2] = 129.5, 129.5, 129.5
C[3,3], C[4,4], C[5,5] = 25, 25, 25
C[0,1], C[0,2] = 82, 82
C[1,0], C[1,2] = 82, 82
C[2,0], C[2,1] = 82, 82

Then I recast it in a 4-rank tensor by using a multidimensional array

def long2short(m, n):
    """
    Given two indices m and n of the stiffness tensor the function
    return i the index of the Voigt matrix
    i = long2short(m,n)
    """
    if m == n:
        i = m
    elif (m == 1 and n == 2) or (m == 2 and n == 1):
        i = 3
    elif (m == 0 and n == 2) or (m == 2 and n == 0):
        i = 4
    elif (m == 0 and n == 1) or (m == 1 and n == 0):
        i = 5
    return i

c=np.zeros((3,3,3,3))
for m in range(3):
    for n in range(3):
        for o in range(3):
            for p in range(3):
                i = long2short(m, n)
                j = long2short(o, p)
                c[m, n, o, p] = C[i, j]

And then I would like to change the coordinate reference system of the tensor by using the rotation matrix that I define like:

Q=np.array([[sqrt(2.0/3), 0, 1.0/sqrt(3)], [-1.0/sqrt(6), 1.0/sqrt(2), 1.0/sqrt(3)], [-1.0/sqrt(6), -1.0/sqrt(2), 1.0/sqrt(3)]])
Qt = Q.transpose()

The matrix is orthogonal (althought the numerical precision is not perfect):

In [157]: np.dot(Q, Qt)
Out[157]:
array([[  1.00000000e+00,   4.28259858e-17,   4.28259858e-17],
       [  4.28259858e-17,   1.00000000e+00,   2.24240114e-16],
       [  4.28259858e-17,   2.24240114e-16,   1.00000000e+00]])

But why then if I perform:

In [158]: a=np.dot(Q,Qt)
In [159]: c_mat=np.dot(a, c)
In [160]: a1 = np.dot(Qt, c)
In [161]: c_mat1=np.dot(Q, a1)

I get the expected value for c_mat (=c) but not for c_mat1? Is there some subtility to use dot on multidimensional arrays?

2

1 Answer

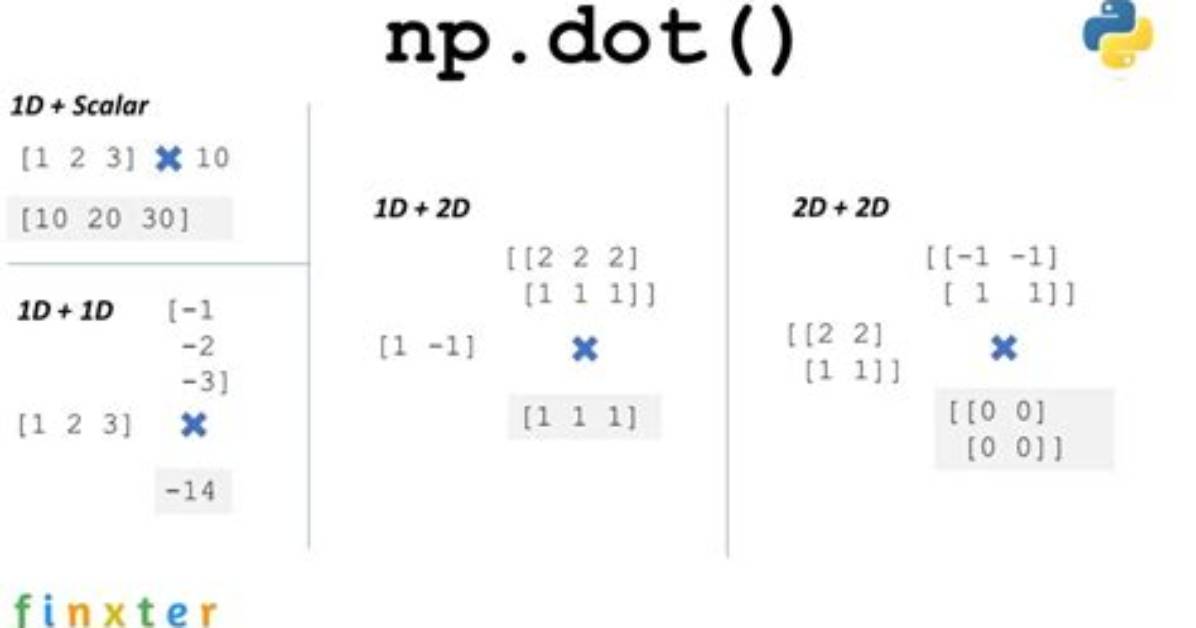

The issue is that np.dot(a,b) for multidimensional arrays makes the dot product of the last dimension of a with the second-to-last dimension of b:

np.dot(a,b) == np.tensordot(a, b, axes=([-1],[2]))

As you see, it does not work as a matrix multiplication for multidimensional arrays. Using np.tensordot() allows you to control in which axes from each input you want to perform the dot product. For example, to get the same result in c_mat1 you can do:

c_mat1 = np.tensordot(Q, a1, axes=([-1],[0]))

Which is forcing a matrix multiplication-like behavior.
