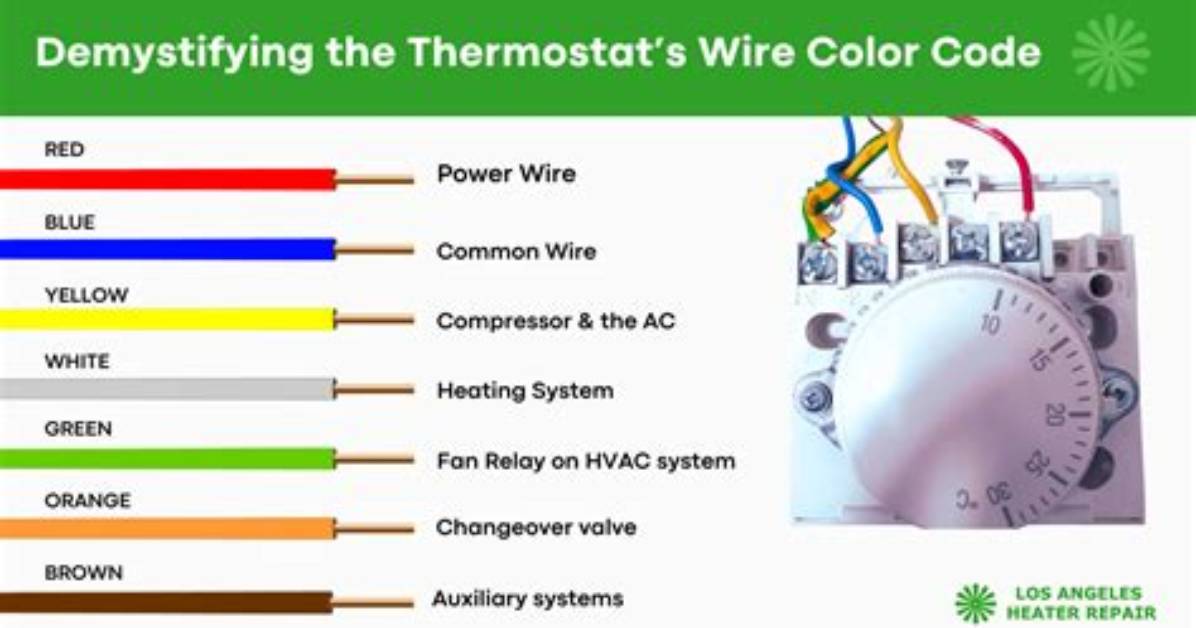

Here Is the Industry Standard Thermostat Wire Color Code Used for Most Systems: White. the White Wire Connects to Your Heat. Yellow. the Yellow Wire Connects...
- White. The white wire connects to your heat.
- Yellow. The yellow wire connects to your compressor.
- Green. The green wire connects to the fan.
- Orange. This wire connects to your heat pump (if applicable).
- Red (C). ...
- Red (H). ...
- Blue.
What wires go where on my thermostat?
FIVE WIRES:
This is the most common type of thermostat wiring, and it covers systems that control both heat and air-conditioning. The usual arrangement of the wires is: red for 24-volt hot, white for heat, yellow for cooling, green for the fan, and blue for common (although the common wire may be another color).
Must Read
What do the wires mean on a thermostat?
Rh stands for Red-Heat and Rc stands for Red-Cool. If you only have a single red wire the jumper between Rh and Rc are required for some heating and cooling hybrid systems depending on your thermostat. Yellow/Y is the AC compressor. White/W is the Heating element. Green/G runs the fan.
