On Current Divider Rule?
Kirchhoff's Current Divider Rule Can Also Be Used to Find Individual Branch Currents When the Equivalent Resistance and the Total Circuit Current Are Known...
Kirchhoff's current divider rule can also be used to find individual branch currents when the equivalent resistance and the total circuit current are known. ... If the two parallel resistive branches are of equal value, the current will divide equally.
What does Current Divider Rule state?
When You Can Use the Current Divider Rule

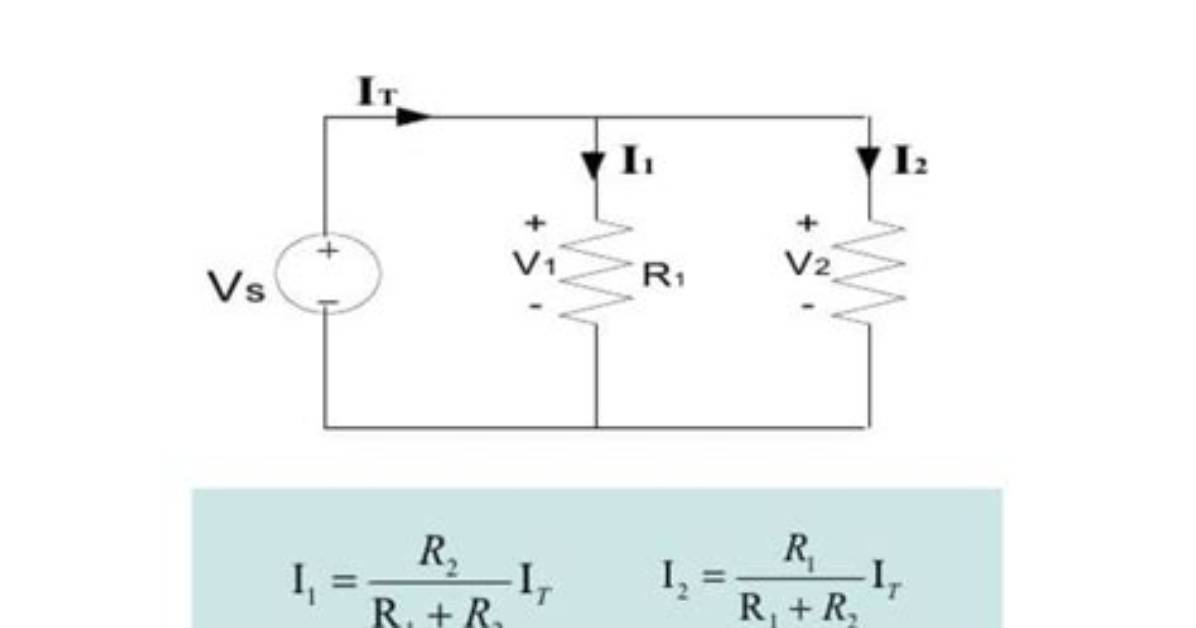

When two resistors are connected in a parallel circuit, the current in any branches will be a fraction of the total current (IT)). If both the resistors are of equal value, then the current will divide equally through both the branches.
What is the rule of divider?
Voltage division rule is one of the basic rules of circuit analysis. The voltage across any resistor in a series connection of resistors shall be equal to the ratio of the value of the resistor divided by the equivalent resistance of the circuit. ...
