Panel Height

General Requirements for Panel Installation

This space must be at least 6.5 feet high and three square feet away from the wall, and must have a 30-inch width. This allows for safe, simple service when needed.

What is the standard height of panel board?

The actual panelboard height is 5 feet, 4 inches, but it is mounted 20 inches from the floor. The top of the panelboard is 84 inches (7 feet) above the floor. In this installation, no circuit breaker (in its highest position) is more than 6 feet, 7 inches above the floor.

How high does an electrical box have to be from the floor?

Generally, you want to mount receptacle boxes with the bottom of the box about 16-inches off the floor. Coincidentally, this roughly equates to the same height as your garden variety 22-ounce framing hammer.

What is the maximum height of a breaker?

All switches and circuit breakers must be installed so the center of the grip of the operating handle of the switch or circuit breaker, when in its highest position, isn’t more than 6 feet 7 inches above the floor or working platform.

Is there a minimum height for a subpanel?

There’s no minimum height, but it can’t be higher than 6’7″ at the highest point of the “operating handle.”

How deep is an electrical panel?

Electrical Panel Clearance Requirements

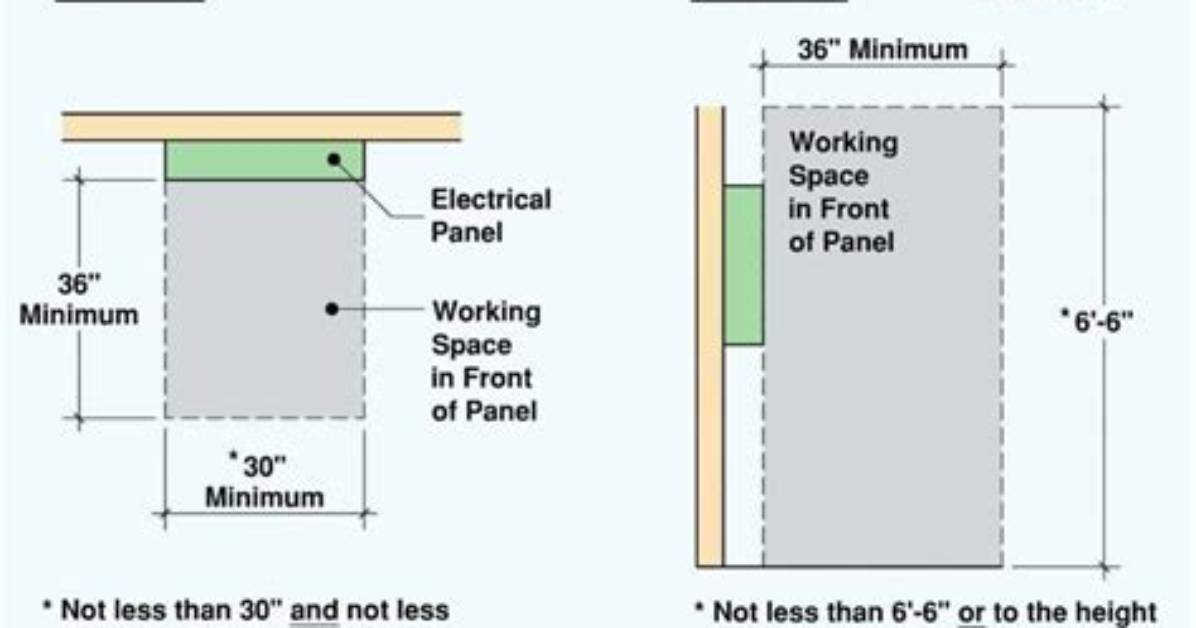

The depth of the working space is 36 inches. The width of the working space must be at least 30 inches, or the width of the panel, whichever is greater. However, the panel is not required to be centered on the working space, it could be offset to one side or the other.

What is the height of switch?

Wall Switches in Standard Construction

Typically, light fixture wall switches in standard residential construction are set so that wall switch boxes are somewhere between 48 and 52 inches above the floor.

What is the maximum height of electrical panel?

A height limit applies to mounting a panel box. The circuit breaker at the top of the box may not be higher than 6-foot 7-inches from the floor. A permanent platform must be below the panel box if the top circuit breaker exceeds this specific height. No defining height is mandated from floor to panel box base.

How high can a circuit breaker panel be?

Height. The minimum height for a circuit breaker box is 4 feet, though the ideal height is between 5 feet and 6 feet. The maximum height allowed for the circuit breaker box is 6 feet.

What is the minimum height for a disconnect?

The minimum working space height required for the disconnect switch is 61/2 feet (see Figure 6). The minimum working space height for electrical equipment has not always been 61/2 feet. For many years, the working space height (or headroom) was required to be at least 61/4 feet (or 6 feet, 3 inches).

Can a breaker panel be installed sideways?

The NEC (National Electric Code) does allow an electric panel to be mounted horizontally, but only if vertical mounting is not possible due to space limitations or otherwise impractical (NEC 240.33).

How far does an electrical panel need to be from a pool?

Electrical Outlet Receptacles

Outlet receptacles for general use can be no closer than 20 feet from a pool or in-ground spa if they are not GFCI-protected, and no closer than 6 feet away if they are GFCI protected.

How high does a spa disconnect have to be?

In the absence of any manufacturer’s instructions that require a disconnect behind the skirt of the hot tub or spa, a single switch meeting the requirements of 430-109, located not less than 5 feet from the inside walls of the spa or hot tub, readily accessible, and identified as an emergency switch if necessary,
