Pdm Network Diagram
Precedence Diagram Method (Pdm) Is a Visual Representation Technique That Depicts the Activities Involved in a Project. It Is a Method of Constructing a...

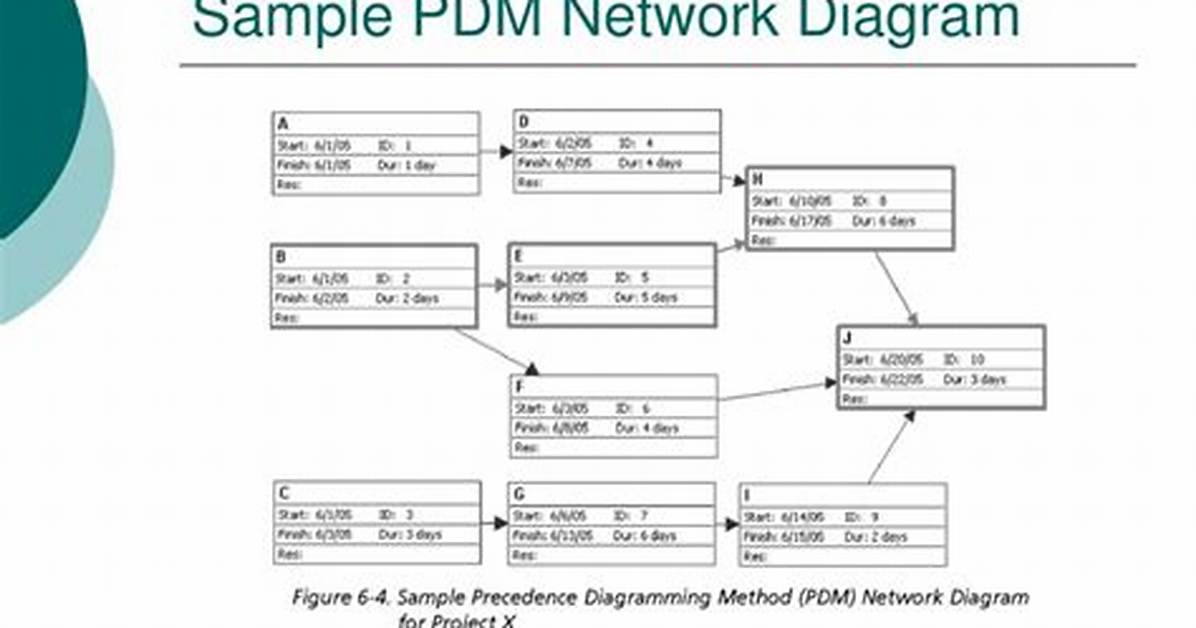

Precedence Diagram Method (PDM) is a visual representation technique that depicts the activities involved in a project. It is a method of constructing a project schedule network diagram that uses boxes/nodes to represent activities and connects them with arrows that show the dependencies.
Which network diagramming method is used for PDM and why?
The precedence diagram method (PDM) is a tool for scheduling activities in a project plan. It is a method of constructing a project schedule network diagram that uses boxes, referred to as nodes, to represent activities and connects them with arrows that show the dependencies.
What is ADM and PDM?
Basically, there are two common techniques to create network diagrams. These techniques are Arrow Diagramming Method (ADM) (or Activity on Arrow) and Precedence Diagram Method (PDM) (or Activity on Node). Schedule network diagrams enable us to determine the critical path of the project.
What are the four types of PDM relationships?
There are four logical relationships or dependencies in the package of PDM, including finish-to-start (FS), finish-to-finish (FF), start-to-start (SS), and start-to-finish (SF), containing a predecessor activity depicted logically prior to a dependent activity of a schedule, and a successor activity as a dependent
What is the difference between PDM and Aon?
Precedence Diagramming Method (PDM) or Activity on Node (AON) Method. The Precedence Diagram (AON diagram) shows activity relationships, and it is an important communication tool for stakeholders. The precedence diagram is made of rectangles known as nodes. These boxes show the project activities.
What is the difference between CPM and PDM?
Re: Difference PDM Method and Critical Path
PDM is used to create schedule and sequencing activities, putting its dependencies and coming up with schedule network diagram. This is a perquisite to really go deeper and apply CPM to determine minimum project duration.
What is ss sf fs ff?
The dependency types for predecessors are FS (finish-to-start), FF (finish-to-finish), SS (start-to-start), and SF (start-to-finish).
What is Aon diagram?
Activity-on-Node (AON) diagram: A basic type of a logic diagram used in scheduling. Critical Activity: Any activity in the schedule that does not possess any float; Total Float=0. Critical Path: The continuous string(s) of critical activities in the schedule between the Start and Finish of the project.
What are the four precedence diagram methods?
The 4 types of logical relationships in the precedence diagraming method are: Finish-to-Start (FS) dependency, Finish-to-Finish (FF) dependency, Start-to-Start (SS) dependency, and.
What is PDM in project management?
The precedence diagramming method (PDM) is a graphical tool used for scheduling activities in a project plan. PDM maps out project development by creating a visual representation of critical paths and dependencies. The primary output of PDM is a project schedule network diagram.
Why is PDM so important to project managers?
The PDM is important to the project manager because it is a pictorial representation of the project’s schedule. The PDM representation will allow the project manager to communicate the activity durations and relationships and allow him or her to work through any issues that management or reviewers have.
What are the 4 types of activity relationships?
The relationships between A and B activity are either of four types:
Finish-to-start (FS)Finish-to-finish (FF)Start-to-start (SS)Start-to-finish (SF)
What is finish-to-finish?
Finish-to-finish (FF) means that one task can only be completed after the other task has been completed. In other words: a successor activity can only finish after its predecessor has been completed.
What is a start to start relationship?
According to the PMBOK Guide, “Start to Start is a Logical Relationship in which a Successor Activity cannot start until a Predecessor Activity has started.” In simple words, the start of the successor activity depends on the start of the predecessor activity.
What is dummy event?
While establishing the relationships and drawing the network diagram sometimes it so happens that there does not exist any real activity between two events but an event cannot be said to have occurred unless and until some other event has occurred. Such cases are shown on the network diagram as dummy activities.
