Routed Port

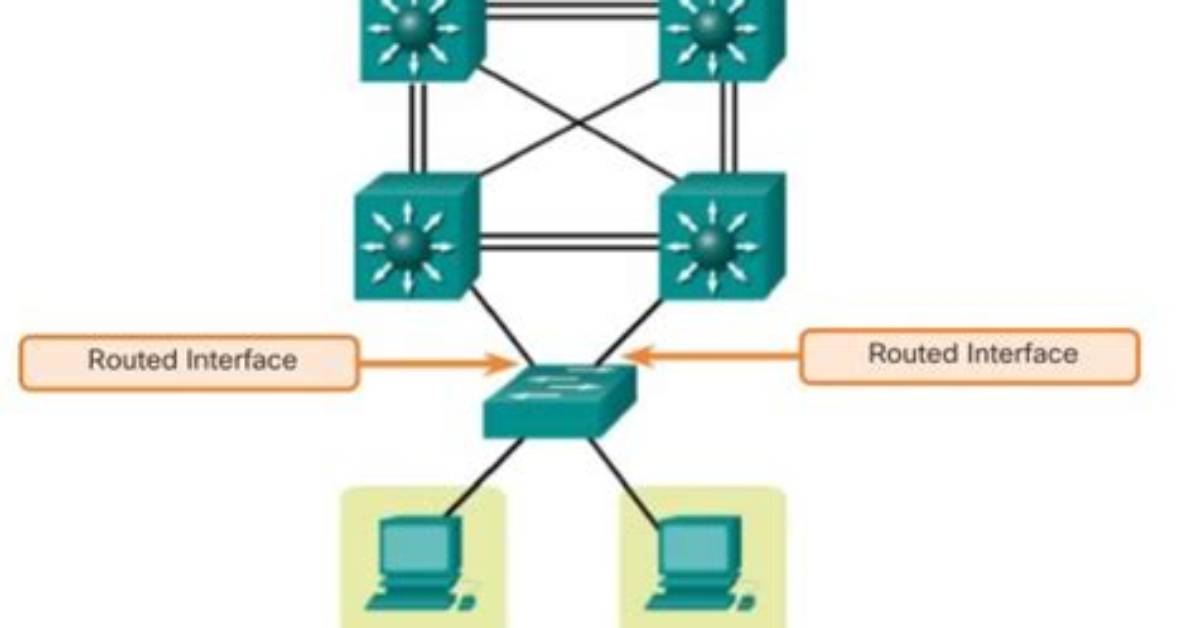

Explanation: A routed port on a Layer 3 switch is commonly used for connecting between distribution and core layer switches or between a Layer 3 switch and a router. This port does not get VLAN or trunking commands assigned to it. Instead, the port is programmed with an IP address.

What is a routed VLAN?

Was this article helpful? In a LAN environment, VLANs divide broadcast domains. When a host in one VLAN must communicate with a host in another VLAN, the traffic must be routed between them. This type of routing is called inter-VLAN routing.

How are IP addresses routed?

IP routing is the process of sending packets from a host on one network to another host on a different remote network. This process is usually done by routers. Routers examine the destination IP address of a packet , determine the next-hop address, and forward the packet.

What is routing port?

A routed port is a physical port that acts similarly to an interface on a router. Unlike an access port, a routed port is not associated with a particular VLAN. A routed port behaves like a regular router interface.

Can switch do routing?

Layer 3 switches are thus able to segregate ports into separate VLANs and perform the routing between them. Like traditional router, a layer 3 switch can also be configured to support routing protocols such as RIP, OSPF, and EIGRP.

What is Intervlan routing Cisco?

Inter-VLAN routing is the process of forwarding network traffic from one VLAN to another VLAN.

Does a Layer 3 switch have a routing table?

The Layer 3 switching function needs a virtual interface connected to each VLAN internal to the switch. These VLAN interfaces act like router interfaces, with an IP address and mask. The Layer 3 switch has an IP routing table, with connected routes off each of these VLAN interfaces.

What is the characteristics of a routed?

It is assigned an IP address. It runs STP to prevent loops. It supports subinterfaces. It is associated with a single VLAN.

What is a characteristic of a routed port on a Layer 3 switch it supports trunking?

It supports trunking. It is not assigned to a VLAN. It is commonly used as a WAN link.

What is a characteristic of a routed port on a Layer 3 switch ??

What is a characteristic of a routed port on a Layer 3 switch? It cannot have an IP address assigned to it. It is commonly used as a WAN link.

Why do we use inter VLAN routing?

Inter-VLAN routing refers to the movement of packets across the network between hosts in different network segments. VLANs make it easier for one to segment a network, which in turn improves the performance of the network and makes it more flexible, since they are logical connections.

What is a non routed VLAN?

A non routeable VLAN is simply a normal VLAN that lacks a router, thereby not being routable to other networks. One common use of non-routable VLANs is for storage networks.

What is a non routed switch?

A non routed VLAN won’t have a router interface that’s a member of that VLAN i.e. has an IP address within the VLAN range. So basically a router won’t provide connectivity into or out of the VLAN unless you configure it will a corresponding IP address from that VLAN.

What is routing explain?

Routing is the process of selecting a path for traffic in a network or between or across multiple networks. Broadly, routing is performed in many types of networks, including circuit-switched networks, such as the public switched telephone network (PSTN), and computer networks, such as the Internet.

How a packet is routed through the Internet?

When a packet arrives at a router, the router examines the IP address put there by the IP protocol layer on the originating computer. The router checks it’s routing table. If the network containing the IP address is found, the packet is sent to that network.

How the data from a router is routed?

When a data packet comes in on one of the lines, the router reads the network address information in the packet header to determine the ultimate destination. Then, using information in its routing table or routing policy, it directs the packet to the next network on its journey.
