Should Psrr Be High or Low?
Psrr Should Be a Negative Value Because It Is Used to Calculate Rejection. However, the Graph Shows It as Positive Number So That a Top Number in Graph Denotes...

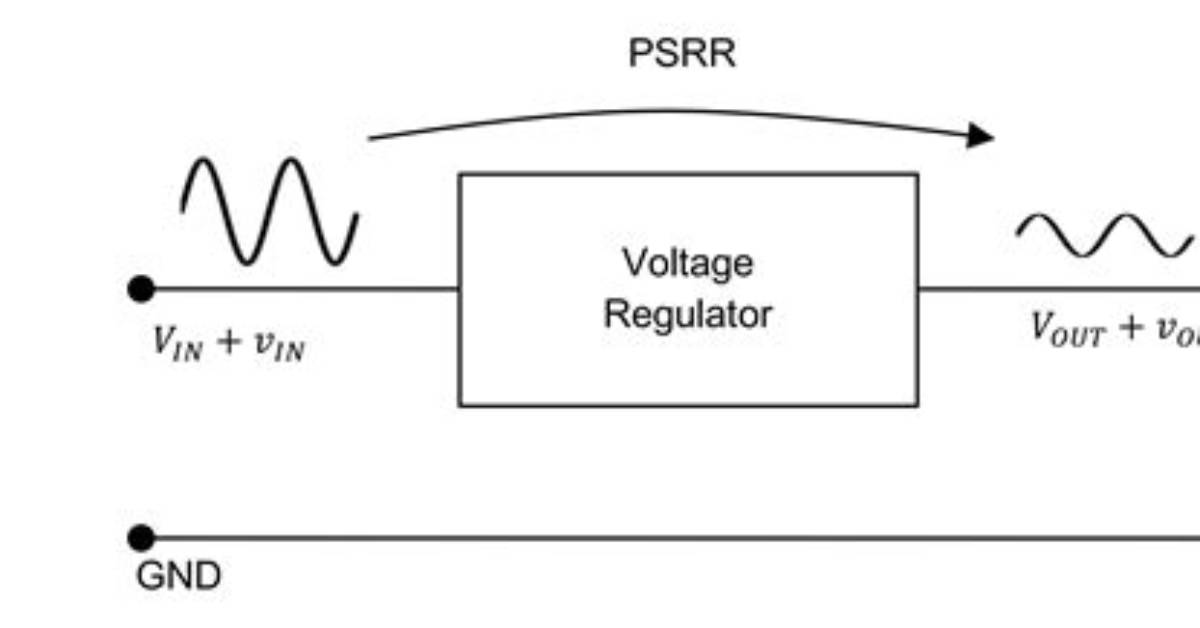

PSRR should be a negative value because it is used to calculate rejection. However, the graph shows it as positive number so that a top number in graph denotes higher noise rejection.
What is the ideal value of PSRR?
PSRR is a measure of exactly how well the op amp reaches this ideal. Typical values for PSRR are in the 100 dB range.
What is high PSRR?
PSRR is equal to 20 multiplied by the log of the input voltage ripple over the output voltage ripple. ... The goal of having a high PSRR on an LDO is to get flat DC signal at the output of the TPS717. The ripple being generated is 50 millivolts on the 4.3 rail on the output of the DC to DC converter.
