Snmp Trap Plug-in - Documentation for Bmc Service Level Management 8.1

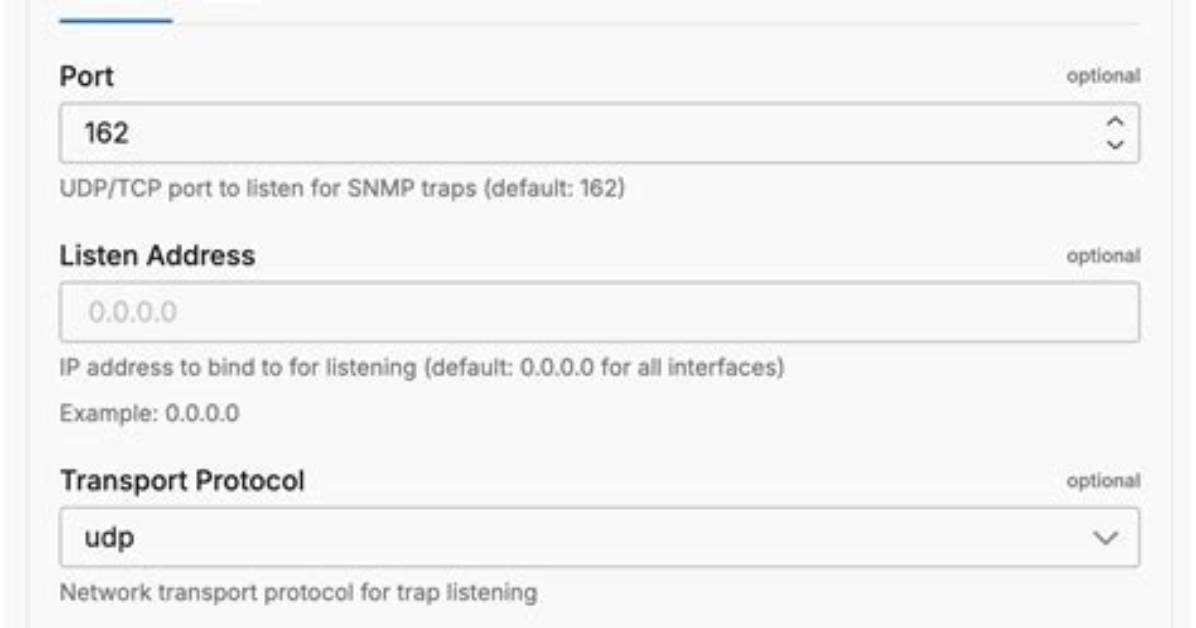

The Simple Network Management Protocol (SNMP) Trap plug-in does not send request to a data source, but instead listens for incoming SNMP traps from SNMP agents. The plug-in is a SNMP manager that runs at port 162 when loaded by the Collection Point. If two Collection Points are installed on the same machine, one of the SNMP plug-ins must change its port.

Discovery

The plug-in loads landscape information from the snmp.conf configuration file. Every time the discovery method is called, snmp.conf is loaded, thus you do not have to restart the Collection Point to discover new landscape information after snmp.conf is modified.

Following is a sample snmp.conf file:

#  Default  status  mapping:  0-ok  1-warn  2-alarm  3-offline
#  For  snmpv1  trap,  TrapID  is  "EnterpriseID  GenericTrapNumber SpecificTrapNumber"
#  For  snmpv2c  trap,  TrapID  is  "snmpTrapOID"
#  Format  1:  label;  status/numeric;  TrapID;  value;  TrapID;  value;...
#  Format  2:  label;  status[:StatusMapping]/numeric;  TrapID;  parameterOID;
#	where  [:StatusMapping]  is  in  the  form  of:parameterValue:statusValue:...
# 	where  statusValue  is  0(OK),1(WARN),2(ALARM),  or  3(OFFLINE)
# for  example,  map  "on"  to  OK  and  "off"  to  ALARM  :on:0:off:2
SNMPAgent 	172.18.53.130  172.18.52.141  localhost
#  v1  trap,  linkup  -  ok,  linkdown  -  alarm
linkStatusV1;  status;	1.3.6.1.4.1.1824  2  0;  0;  1.3.6.1.4.1.1824  3  0;  2
#  v2  trap
linkStatusV2;  numeric;  1.3.6.1.6.3.1.1.5.3;	100;  1.3.6.1.6.3.1.1.5.4;  200
#  Format  1  status  example
enterpV1;  status;  1.3.6.1.4.1.1824  6  1;	0;  1.3.6.1.4.1.1824  6  2;	2
enterpV2;  status;  1.3.6.1.4.1.1824.0.1;	0;  1.3.6.1.4.1.1824.0.2;	2
#  Format  2  status  example
statusV1;  status:on:0:off:2;  1.3.6.1.4.1.1824.1  6  0;
1.3.6.1.4.1.1824.1.0.0.1;
#  Format  2  numeric  example
numericV1;  numeric;  1.3.6.1.4.1.1824.1  6  0;  1.3.6.1.4.1.1824.1.0.0.1;
numericV2;  numeric;  1.3.6.1.4.1.1824.1;	1.3.6.1.4.1.1824.1.0.0.1;
SNMPAgent    wqiu-hou
enterpV1;  status;  1.3.6.1.4.1.1824  6  1;	0;  1.3.6.1.4.1.1824  6  2;	2
enterpV2;  status;  1.3.6.1.4.1.1824.0.1;	0;  1.3.6.1.4.1.1824.0.2;	2

The entries in the file tell the plug-in how a system metric is mapped to one or multiple traps. For example, if a SNMP trap Collection Node is created with "localhost" in the agent IP field, the following parameters are discovered in the landscape:

• linkStatusV1
• linkStatusV2
• enterpV1
• enterpV2
• statusV1
• numericV1
• numericV2

If the agent IP in the Collection Node cannot be matched in the snmp.conf file, the landscape for this Collection Node will be empty. The snmp.conf file can be updated while the Collection Point is running.

The SNMPv1 trap and SNMPv2c trap are different in terms of trap identification. To uniquely identify a trap, a TrapID is defined as:

For SNMPv1:

TrapID  = EnterpriseID[space]GenericTrapNumber[space] SpecificTrapNumber
Example:  1.3.6.1.4.1.1824  5  0

For SNMPv2c:

TrapID  = SNMPTrapOID
Example:  1.3.6.1.4.1.1824.1.0.0.1
