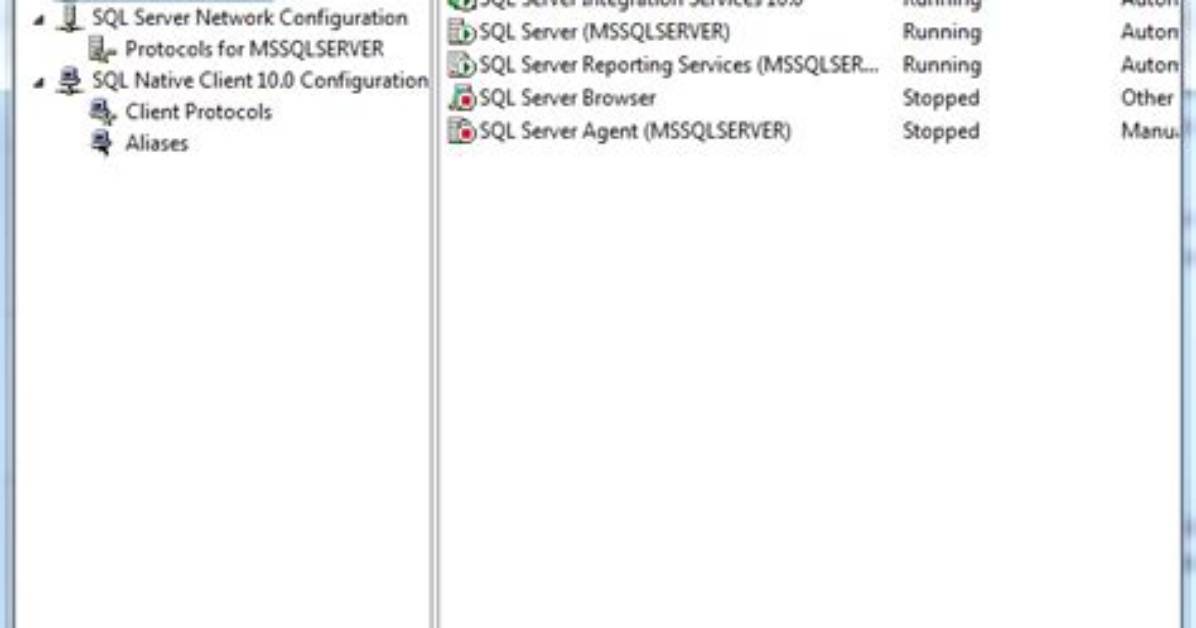

Sql Server Configuration Manager Not Found

If you happen to be using Windows 8 and up, here's how to get to it:

• The newer Microsoft SQL Server Configuration Manager is a snap-in for the Microsoft Management Console program.

• It is not a stand-alone program as used in the previous versions of Microsoft Windows operating systems.

• SQL Server Configuration Manager doesn’t appear as an application when running Windows 8.

• To open SQL Server Configuration Manager, in the Search charm, under Apps, type:

  SQLServerManager15.msc for [SQL Server 2019] or

  SQLServerManager14.msc for [SQL Server 2017] or

  SQLServerManager13.msc for [SQL Server 2016] or

  SQLServerManager12.msc for [SQL Server 2014] or

  SQLServerManager11.msc for [SQL Server 2012] or

  SQLServerManager10.msc for [SQL Server 2008], and then press Enter.

Text kindly reproduced from SQL Server Configuration Manager changes in Windows 8

Detailed info from MSDN: SQL Server Configuration Manager

On windows 10 Control Panel→Administrative Tools→Computer Management

I know this is old but you can directly browse it using this paths..

SQL Server 2019 C:\Windows\SysWOW64\SQLServerManager15.msc

SQL Server 2017 C:\Windows\SysWOW64\SQLServerManager14.msc

SQL Server 2016 C:\Windows\SysWOW64\SQLServerManager13.msc

SQL Server 2014 C:\Windows\SysWOW64\SQLServerManager12.msc

SQL Server 2012 C:\Windows\SysWOW64\SQLServerManager11.msc

SQL Server 2008 C:\Windows\SysWOW64\SQLServerManager10.msc

source is from ms site

One can also specify %systemroot% for the path of Windows directory. For example:

SQL Server 2019: %systemroot%\SysWOW64\SQLServerManager15.msc

From SQL Server 2008 Setup, you have to select "Client Tools Connectivity" to install SQL Server Configuration Manager.

This path worked for me. on a 32 bit machine.

C:\Windows\System32\mmc.exe /32 C:\Windows\system32\SQLServerManager10.msc

If you don't have any version of SQLServerManagerXX.msc, then you simply do not have it installed. I noticed it does not come with SQL server management studio 2019.

It's available (client-connectivity tools) in the SQL Server Express edition or SQL Server Developer edition which is good for dev/test (non-production) usage.

you need to identify sql version.

SQLServerManager15.msc for [SQL Server 2019] or

SQLServerManager14.msc for [SQL Server 2017] or

SQLServerManager13.msc for [SQL Server 2016] or

SQLServerManager12.msc for [SQL Server 2014] or

SQLServerManager11.msc for [SQL Server 2012] or

SQLServerManager10.msc for [SQL Server 2008],

Step :1) open ssms

  2) select version

  3) select above command and run in cmd with admin right.

For SQL Server 2017 it is : C:\Windows\SysWOW64\SQLServerManager14.msc

For SQL Server 2016 it is : C:\Windows\SysWOW64\SQLServerManager13.msc

For SQL Server 2016 it is :C:\Windows\SysWOW64\SQLServerManager12.msc

and to add it back to the start menu, copy it from the original location provided above and paste it to

C:\ProgramData\Microsoft\Windows\Start Menu\Programs\Microsoft SQL Server 2017\Configuration Tools\

This would put back the configuration manager under start menu.

Source: How to open sql server configuration manager in windows 10?

Paste this line in folder path url in file explore: C:\Windows\SysWOW64\SQLServerManager11.msc then press enter.

Go to this location C:\Windows\System32 and find SQLServerManager . Worked for me. Configuration manager was there but somehow wasn't showing up in search results.

You can also launch mmc.exe and choose the SQL Server Configuration Manager from Add Remove Snap-ins:

C:\Windows\System32\SQLServerManager15.msc

The version may be different

SQLServerManager<version>.msc
