Standard Double Glazed Unit Thickness

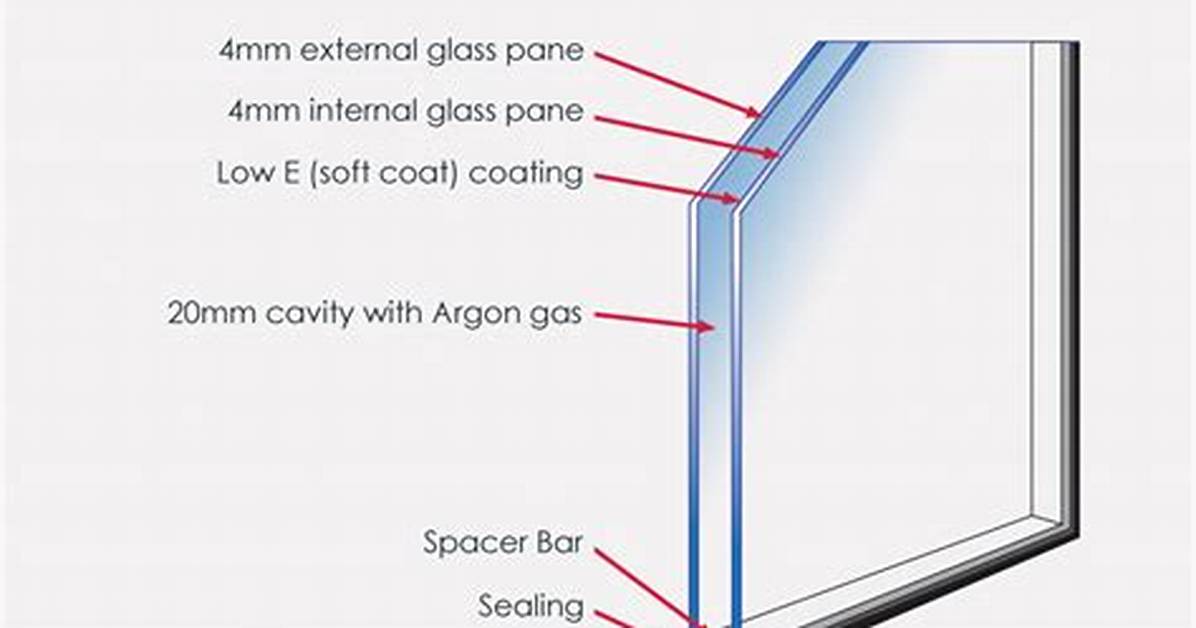

Today’s standard double glazing units are generally 28mm in thickness with a configuration of 4-20-4mm, which represents, glass thickness, cavity depth and glass thickness. As standard, most double glazing should be supplied with argon cavity gas, at least 1 low-e coating and a warm edge spacer.

What is the minimum thickness of double glazing?

The thinnest standard double-glazed windows can be is 14mm, made up of two 4mm glass panes and a 6mm spacer bar.

How thick is a double glazed window frame?

Most double glazed windows use glass panes that are 4mm in depth. So, as there are 2 panes of glass in use, the total window glass thickness is 8mm.

What is the standard used in double glazing unit?

The current industry standard unit consists of one 4mm pane of low emissivity glass, one 4mm pane of plain annealed glass and a 20mm cavity of argon gas (4mm+4mm+20mm=28mm).

Is 6mm glass better than 4mm?

6mm float glass

Both 4.4 & 6.4mm safety laminate are considerably better for security and safety with the price point being very similar as well. In time gone by it was an upgrade from 4mm in terms of security and noise reduction.

What is the standard thickness of glass?

What is the Thickness of Glass Used in Most Residential Replacement Windows? The vast majority of residential windows use Single Strength glass which is 3/32” thick. For larger windows, Double Strength, or 1/8” thick glass may be required.

How thick is a window in mm?

Laminated glass in windows and doors is typically 6.38mm thick.

Is thicker glass a better insulator?

Two panes of glass work better than a single frame because it reduces heat loss, which will in turn lower your heating bill. It will also lower your cooling bill because the temperature in the house stays at a more constant number. The thicker the glass you choose, the better the insulation will be.

How thick is a window frame UK?

Standard thickness of a uPVC window frame

Between the two panes is a space that is around 12mm-16mm. This gives a standard thickness of around 20mm – 28mm for a uPVC window, which is too bulky for some homeowners.

How thick is a standard window frame?

Jambs: The vertical members of the window frame, thicker jambs provide better overall performance of the operating parts of the window called the “sash.” Building-grade windows have jambs from 2-7/16 to 3 inches thick, while premium grade windows offer 3-1/4 inch jambs.

How thick is triple glazing?

Triple Glazed Units

High performance triple glazing requires 2 panes of low e glass, made up as: 4mm clear/4mm low e/4mm low e. It is recommended by the manufacturers that this middle low e pane is toughened to prevent Thermal Stress Cracking.

Is thick glass as good as double glazing?

Double glazing slows this heat flow. The thicker glass makes it more difficult for heat to pass through it, and the air gap provides a barrier to block it. From a scientific perspective, when it’s hot, molecules move quickly which fans out the heat just a fast.

How thick is a double pane window?

How thick are the two glass panes of a double glazing unit? A typical glass pane is 4mm thick.
