Stop Lamp Switch

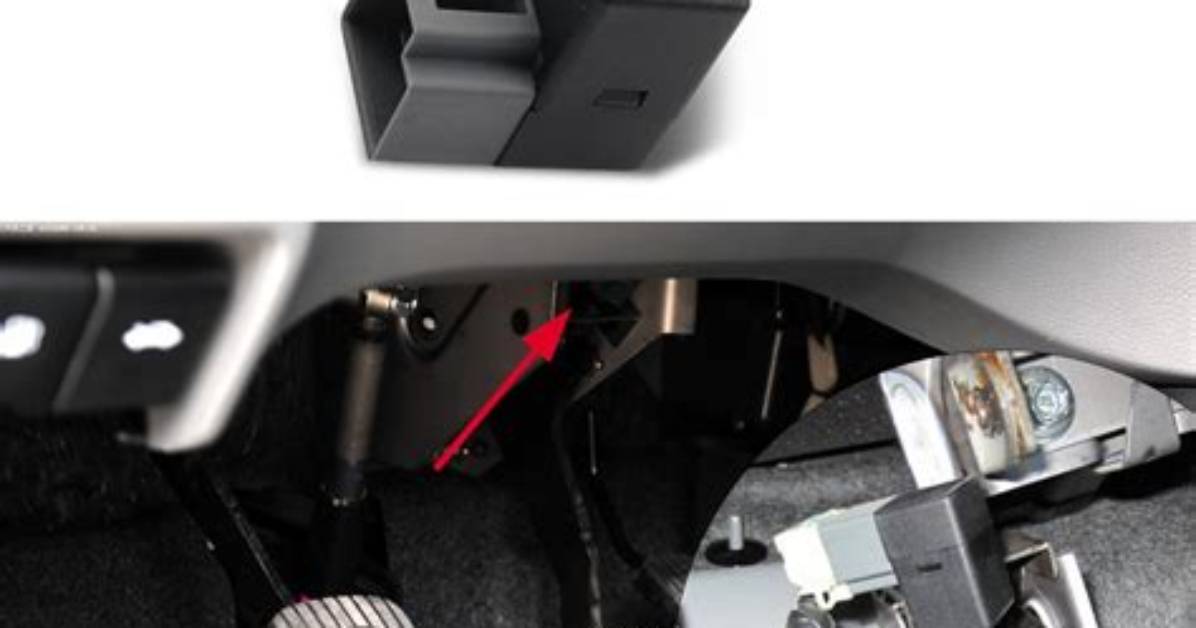

The switch is located right near the tip of your right foot near the brake pedal, so it’s easy to access. The switch may actually snap into place without the use of any tools at all. $20-50 dollars should cover the labor costs on most cars.

What does a stop lamp relay do?

A brake light switch is sometimes called a brake relay. This is the switch that tells your car’s computer and lights that you’ve pressed the brakes. This sends a signal to turn the lights on and also allows you to shift out of park, or in some cases, turn your car on.

What is a stop lamp circuit?

A typical brake light circuit

When the pedal is depressed, the switch automatically closes to turn on the brake lights. The other type of switch works hydraulically and is operated by the pressure of fluid in the pipes when the brake is applied.

What is a lamp switch in a car?

The brake light switch on your vehicle serves an important safety function. When you press the brake pedal, it supplies power to the signal lights at the back of your vehicle to warn other drivers you have slowed.

Will brake lights drain battery?

Tip: When your brake lights stay on while your car is stopped, it can drain your battery. It’s important to resolve brake light issues right away so as to not drain your battery.

Why do lights need a relay?

Relays can be used to switch a low-current trigger to high current, switch a circuit on or off, reverse polarity, and much more. When adding LED lights, such as off-road light bars, driving/work lights, or other auxiliary lights to a vehicle, you must add a circuit to power the light adequately.

What activates the stop switch?

The stop light switch (Fig. 22) is an air-signaled electrical switch which is turned on any time a brake application is made. The switch is usually connected to a double check valve and can be plumbed anywhere in the application side of the circuit.

Do running lights need a relay?

So in short if you do not properly wire the light bar to a battery and use a correct amperage switch which will keep the light bar on it’s own independent circuit a relay is unnecessary. However if you tap into the high beams or another lower voltage switch then you will need a relay to avoid an electrical fire.

What is stop lamp fuse?

The stop lamp fuse is in the left kick panel inside the vehicle. It is a 15amp fuse that powers the stop light switch on the brake pedal. The brake light switch sends power to rear brake lights. fuses. manual transmissions.

What turns on the stop light switch in an air brake system?

5.1.12 – Stop Light Switch

The air brake system does this with an electric switch that works by air pressure. The switch turns on the brake lights when you put on the air brakes.

What is the stop light switch CDL?

A Turns on the brake lights when you put on the air brakes. Drivers behind you must be warned when you put your brakes on. The air brake system does this with an electric switch that works by air pressure.

Where is the car light switch?

The Car Lights Switch

Depending on which car you have, the lights switch will be located in the following places: Dial switch on the dashboard, usually to the right-side of the steering wheel. Twist switch, usually located on the left steering column stalk.

What does a brake pedal stopper do?

The 2011-2012 Sonata has a defective stopper pad, a piece fixed to the brake-pedal arm that contacts the plunger switch controlling the brake lights, that can “deteriorate” and allow the plunger to stay extended when the brake pedal is released.
