Vertical and Horizontal Centered 4X4 Square Grid Using Css Grid
I Want to Write 2048 Game Using Divs and Css-Grid. This Is How I Imagine the Output: I Have the Outer Part, Which Fits to the Browser Window, and I Just Want...

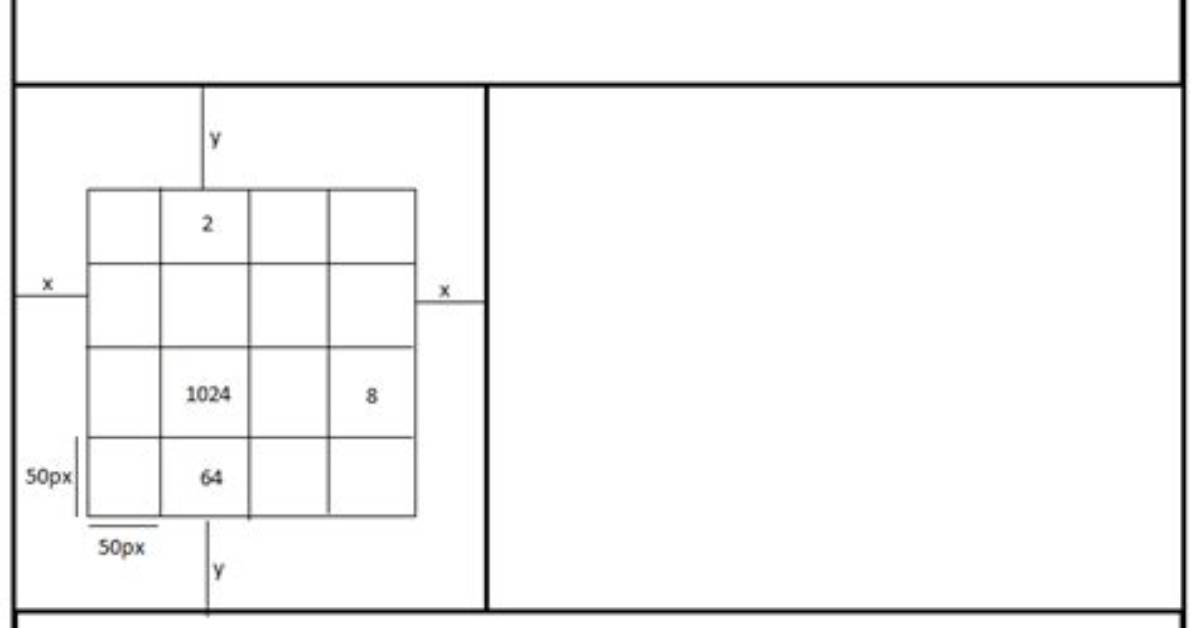

I want to write 2048 game using divs and css-grid. This is how I imagine the output:
I have the outer part, which fits to the browser window, and I just want to write 4x4 grid in the middle (horizontal and vertical) of the middle-left div (called game-container)
<div class = "game-container">
<div class = "game">
<div class = "game-cell"></div>
<!-- 16 game cells total -->
<div class = "game-cell"></div>
</div>
</div>
I made a 4x4 grid using:
div.game {
display: grid;
grid-template-columns: repeat(4, 1fr);
grid-template-rows: repeat(4, 1fr);
}
However, I have a problem with few things:
- How to make each
game-cellsquare (lets say 50px) - How to display a number in the middle of a
game-cell - How to make divs touch each other
I can make each one of this, but not all at once.
Moreover, how to display game div in the middle (as in the picture) of the game-container div.
PS. I don't mind using some Bootstrap if it simplifies something.
Some info concerning outer container:
html, body, div.container{
height: 100%;
margin: 0;
padding: 0;
}
div.container {
display:grid;
grid-template-rows: 3fr 9fr 2fr;
grid-template-columns: 3fr 5fr;
grid-gap: 2px;
background-color: yellow;
}
3 Answers
use flexbox to acheive it outside grid.
div.game {
display: grid;
width: 50vw;
height: 50vh;
grid-template-columns: repeat(4, 1fr);
grid-template-rows: repeat(4, 1fr);
width: 120px;
height: 120px
}
.game-cell {
width: 30px;
height: 30px;
border: 1px solid ;
box-sizing: border-box;
}
.left-half{
width: 50vw;
height: 100vh;
border: 1px solid red;
display: flex;
align-items: center;
justify-content: center;
}
body{
padding: 0;
margin: 0;
}<!DOCTYPE html>
<html>
<head>
<meta charset="utf-8">
<meta name="viewport" content="width=device-width">
<title>JS Bin</title>
</head>
<body>
<div class = "game-container">
<div class="left-half">
<div class = "game">
<div class="game-cell"></div>
<div class="game-cell"></div>
<div class="game-cell"></div>
<div class="game-cell"></div>
<div class="game-cell"></div>
<div class="game-cell"></div>
<div class="game-cell"></div>
<div class="game-cell"></div>
<div class="game-cell"></div>
<div class="game-cell"></div>
<div class="game-cell"></div>
<div class="game-cell"></div>
<div class="game-cell"></div>
<div class="game-cell"></div>
<div class="game-cell"></div>
<div class="game-cell"></div>
</div>
</div>
</div>
</body>
</html>Add this to your .game-container css
display: flex;
align-items: center;
justify-content: center;
.game {
display: grid;
width: 120px;
height: 120px;
border:1px solid black;
}
.game-container{
height: 500px;
width: 500px;
display: flex;
align-items: center;
justify-content: center;
border: 1px solid black;
}<div class = "game-container">
<div class = "game">
</div>
</div>Here is the complete solution combined using answers and comments from comunity.
html, body, div.container{
height: 100%;
margin: 0;
padding: 0;
}
div.container {
display:grid;
grid-template-rows: 3fr 9fr 2fr;
grid-template-columns: 3fr 5fr;
grid-gap: 2px;
background-color: yellow;
}
div.container > div {
background-color: #99c2ff;
}
div.header {
grid-column: 1/3;
grid-row: 1/2;
}
div.game-container {
display: flex;
grid-column: 1/2;
grid-row: 2/3;
text-align: center;
}
div.menu {
grid-column: 2/3;
grid-row: 2/3;
}
div.footer {
grid-column: 1/3;
grid-row: 3/4;
}
div.game {
display: grid;
grid-template-columns: repeat(4, 80px);
grid-template-rows: repeat(4, 80px);
margin: auto;
}
div.grid-cell {
display: flex;
border: 1px solid rgba(0, 0, 0, 0.8);
font-size: 20px;
background-color: #e6f0ff;
}
div.value-cell {
margin: auto;
}
h1, h2, h3, h4 {
text-align: center;
}<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<link rel="stylesheet" type="text/css" href="styles.css">
<title>2048</title>
</head>
<body>
<div class="container">
<div class="header">
<h3>Title</h3>
</div>
<div class = "game-container">
<div class = "game">
<!-- <div class="grid-row"> -->
<div class="grid-cell"><div class="value-cell"></div></div>
<div class="grid-cell"><div class="value-cell"></div></div>
<div class="grid-cell"><div class="value-cell"></div></div>
<div class="grid-cell"><div class="value-cell"></div></div>
<!-- </div> -->
<!-- <div class="grid-row"> -->
<div class="grid-cell"><div class="value-cell"></div></div>
<div class="grid-cell"><div class="value-cell">2</div></div>
<div class="grid-cell"><div class="value-cell"></div></div>
<div class="grid-cell"><div class="value-cell"></div></div>
<!-- </div> -->
<!-- <div class="grid-row"> -->
<div class="grid-cell"><div class="value-cell"></div></div>
<div class="grid-cell"><div class="value-cell"></div></div>
<div class="grid-cell"><div class="value-cell">16</div></div>
<div class="grid-cell"><div class="value-cell"></div></div>
<!-- </div> -->
<!-- <div class="grid-row"> -->
<div class="grid-cell"><div class="value-cell"></div></div>
<div class="grid-cell"><div class="value-cell"></div></div>
<div class="grid-cell"><div class="value-cell">1024</div></div>
<div class="grid-cell"><div class="value-cell"></div></div>
<!-- </div> -->
</div>
</div>
<div class="menu">
<p>Some info</p>
</div>
<div class="footer">
<h4>Footer</h4>
</div>
</div>
</body>
</html>David Miller brings 15 years of experience in global economics, personal finance strategy, and market dynamics. He specializes in turning complex economic trends into actionable insights for everyday readers.
