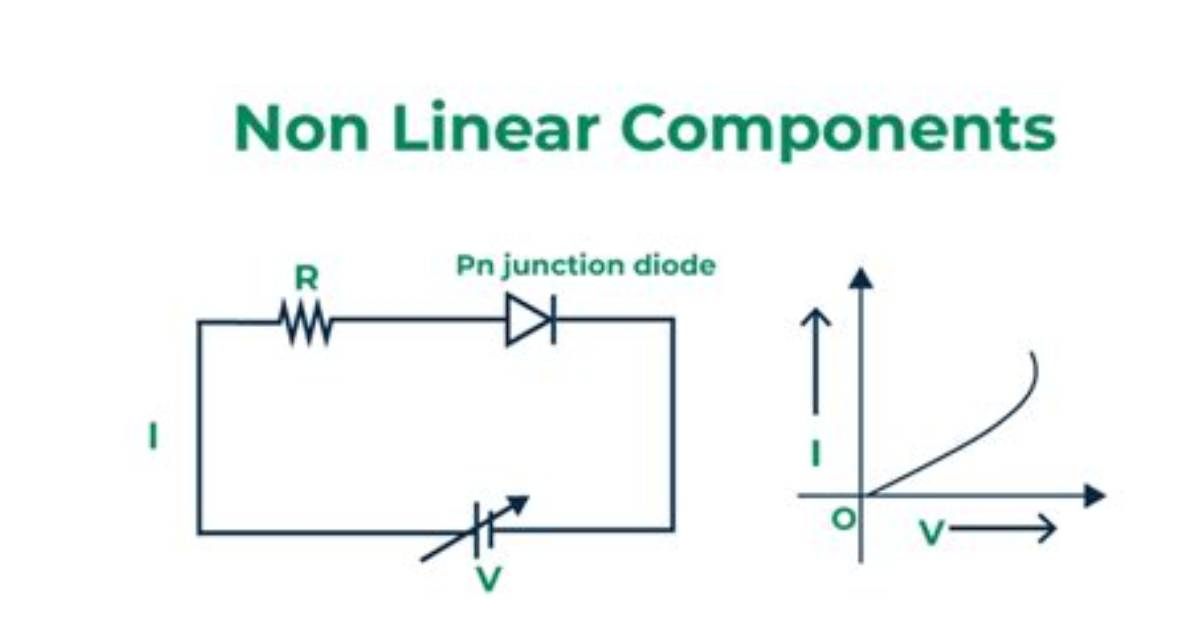

What Are Non Linear Components?
Elements of Linear and Non-Linear Circuit in the Non-Linear Circuit, the Non-Linear Elements Are an Electrical Element and It Will Not Have Any Linear...
.
Thereof, what are linear components?
Linear circuit elements refer to the components in an electrical circuit that exhibit a linear relationship between the current input and the voltage output. Examples of elements with linear circuits include − Resistors. Capacitors. Inductors.
Similarly, what is a non linear conductor? 1. Non-linear conductors such as semiconductors, thermistors and diodes do not have a. constant resistance. Instead, we can write the voltage drop as a function of current in.
Beside above, what are linear and non linear elements?
Linear Elements, in Electrical Circuits, are the devices that follow the linear relation between current and voltage. For example, an Ideal Resistance. Non Linear Elements are devices which don't follow the linear relation between current and voltage. For example, a Diode.
Is capacitor linear or nonlinear?
Linear and nonlinear components Examples of linear circuits are amplifiers, differentiators, and integrators, linear electronic filters, or any circuit composed exclusively of ideal resistors, capacitors, inductors, op-amps (in the "non-saturated" region), and other "linear" circuit elements.
