What Do Civil Drawings Include

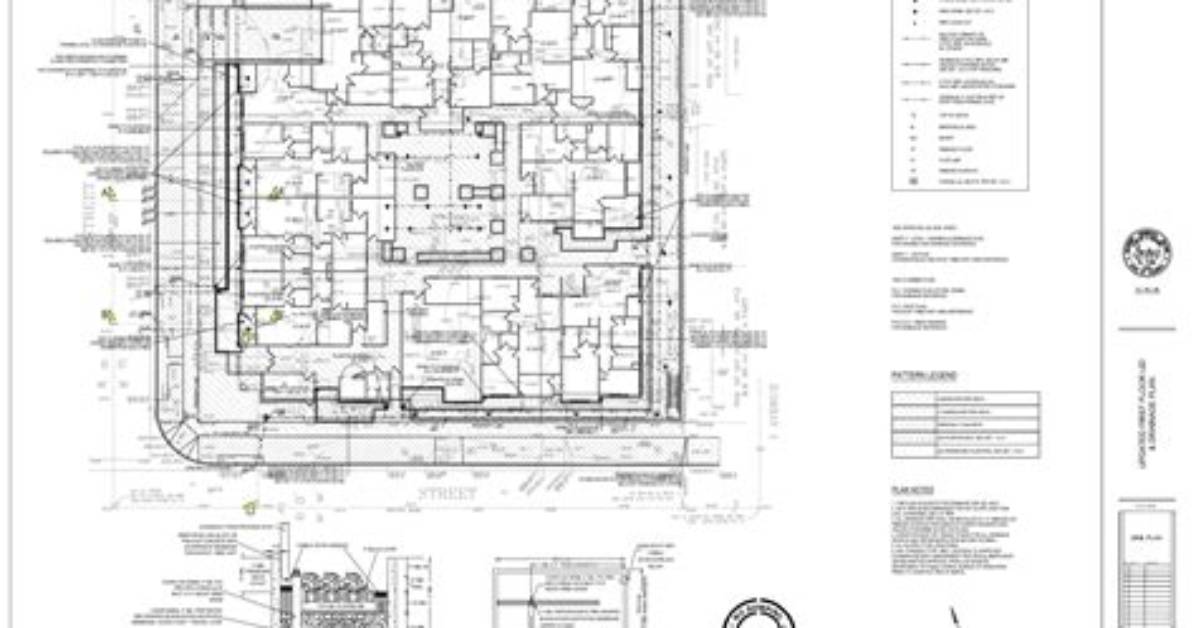

A civil drawing, or site drawing, is a type of technical drawing that shows information about grading, landscaping, or other site details. These drawings are intended to give a clear picture of all things in a construction site to a civil engineer.

What are the basic components of civil drawing?

• Foundation,
• Plinth,
• Walls and columns,
• Floors,
• Lintels and chajjas,
• Roof,
• Doors and windows,
• Stairs and lifts,

What civil works include?

Civil Work is primarily that work which is fixed to the house and cannot be changed easily. It includes tiling, bathroom renovation, breaking any walls, fixing the kitchen platform, electrical work, etc. It is usually more messy and tedious compared to the other work such as furniture and kitchen.
