What Does a Shunt Regulator Do?
The Shunt Regulator or Shunt Voltage Regulator Is a Form of Voltage Regulator Where the Regulating Element Shunts the Current to Ground. the Shunt Regulator...
.
Herein, how does a shunt regulator work?

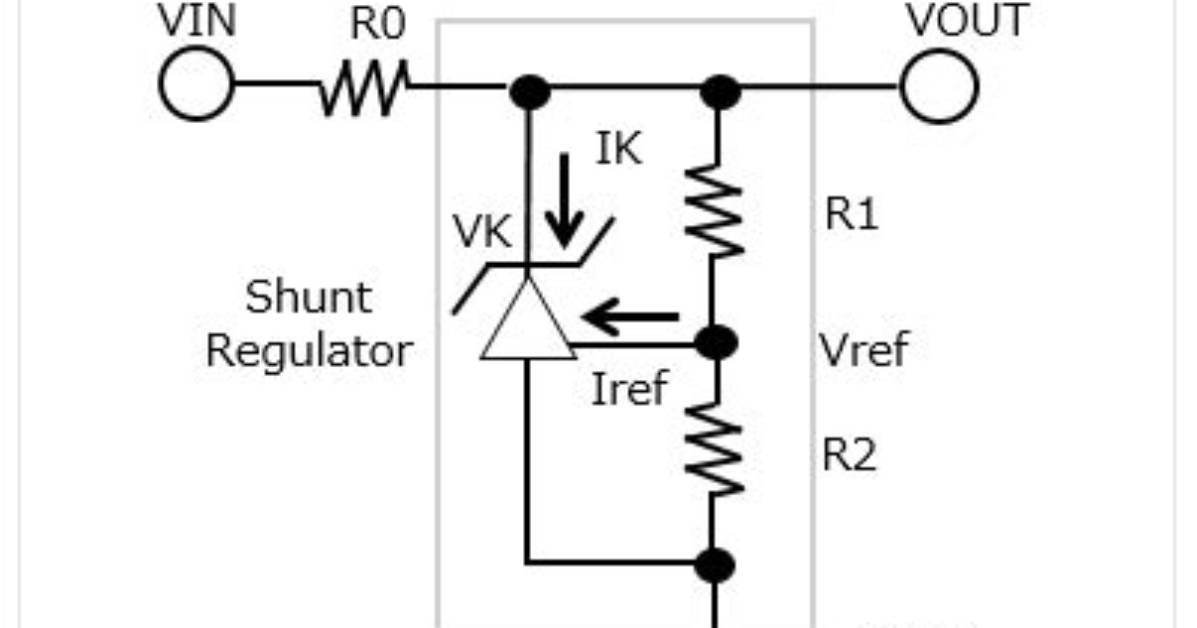

A shunt voltage regulator works by providing a path from the supply voltage to ground through a variable resistance. The current through the shunt regulator has diverted away from the load and flows uselessly to the ground, making this form usually less efficient than the series regulator.
Furthermore, what is the function of regulator? The purpose of a voltage regulator is to keep the voltage in a circuit relatively close to a desired value. Voltage regulators are one of the most common electronic components, since a power supply frequently produces raw current that would otherwise damage one of the components in the circuit.
Correspondingly, what is series and shunt regulator?
A series regulator is connected in series with the load to stabilize the regulator's output voltage. A shunt regulator, on the other hand, is connected in parallel to the load to stabilize the device's output voltage.
What is the function of AVR?
An automatic voltage regulator (AVR) is a electronic device for automatically maintaining generator output terminal voltage at a set value under varying load and operating temperature. It controls output by sensing the voltage Vout at a power-generating coil and comparing it to a stable reference.
