What Does Geometric Constraint Mean?
Geometric Constraints Are Those Geometric Dimensional Conditions That One Imposes Upon Other Geometric Dimensional Operations. Geometric Constraints Are Those...
.
In respect to this, what are the types of geometric constraints?

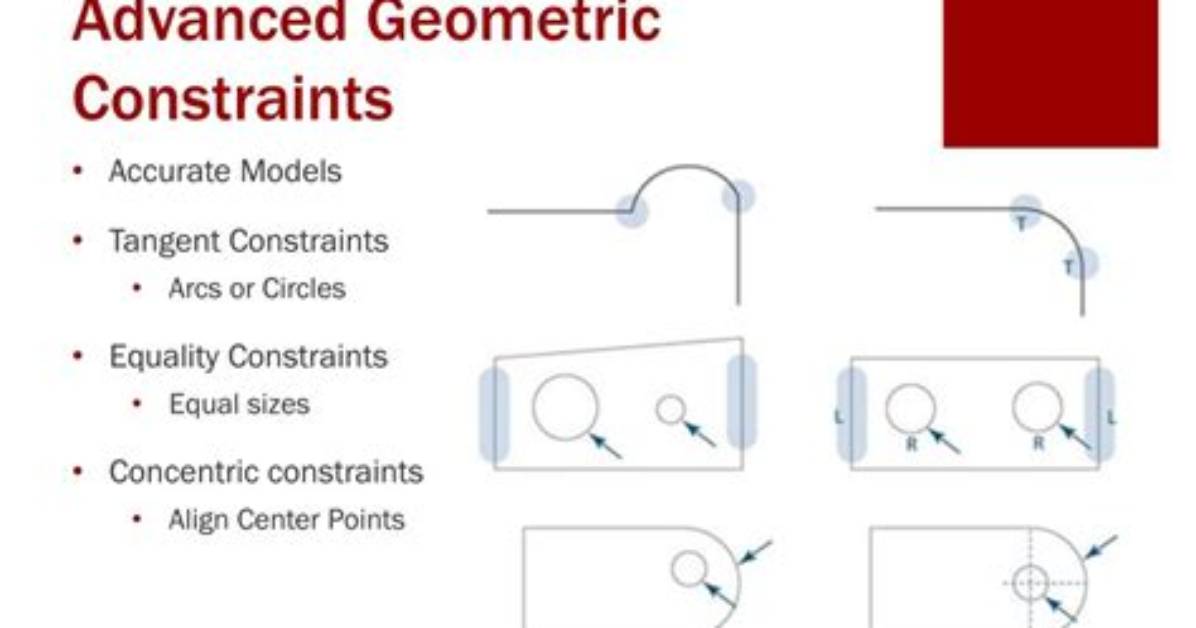

Types of Geometric Constraints Parallelism occurs when two or more lines or axes of curves are equidistant from each other. Perpendicularity is a constraint in which lines or axes of curves intersect at right angles. Concentricity arises when two or more arcs, circles or ellipses share the same center point.
Beside above, what is the difference between geometric and dimensional constraints? Geometric constraints are used to control the relationships of objects in respect to each other. Dimensional constraints are used to control the distance, angle, radius, and length values of objects. With constraints you can: include formulas and equations within dimensional constraints.
Likewise, people ask, what is a geometric constraint Pltw?
A Geometric constraint is a Constant, non-numerical relationship between the parts of a geometric figure.
What are geometric constraints and why do we need them?
Horizontal and vertical geometric constraints force two points, a line or a polyline segment to be parallel to the X-axis (horizontal) or the Y-axis (vertical) of the current coordinate system. Therefore these constraints can be used to keep lines at a fixed angle, rather than only horizontal or vertical.
