What is an offset section? An offset section is produced by bending the cutting plane to show features that don’t lie in the same plane.
What do you mean by offset section?

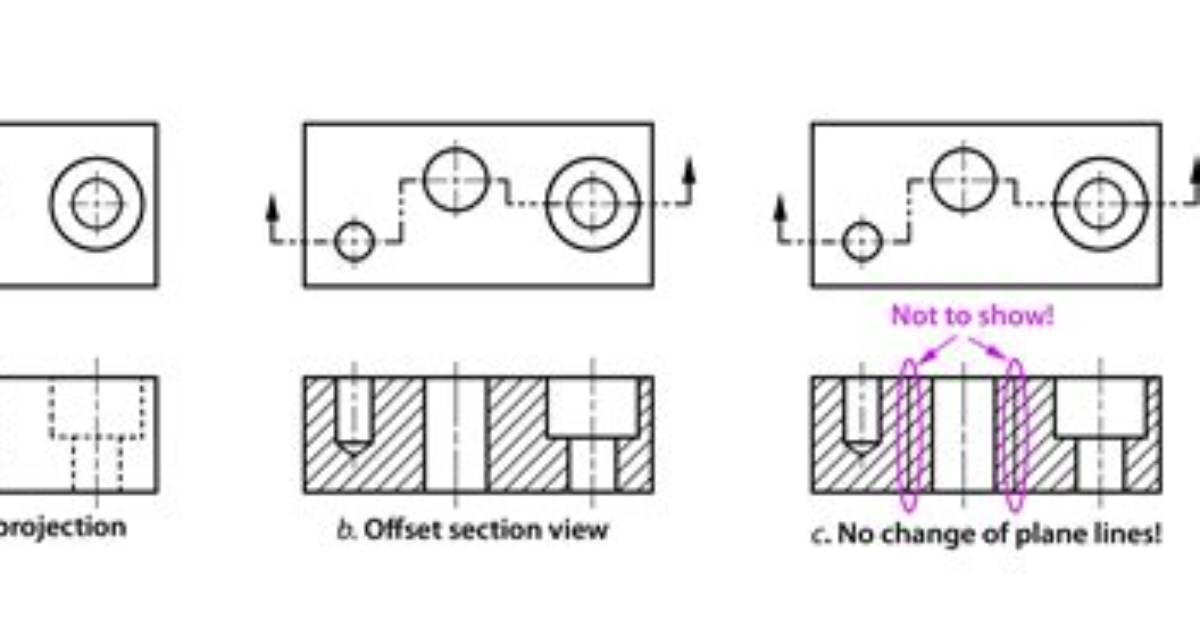

An offset section is a means of including in a single section several features of an object that are not in a straight line. To do this, the cutting plane line is bent, or “OFFSET” to pass through the features of the part.
How do you do an offset section view?
- On the Section View popup, click .
- Move the pointer. to the location of the first point of the arc and click. …
- Move the pointer to the location of the second point of the arc and click.
- Click. to close the Section View popup.
- Drag the preview to a location and click to place the section view.
