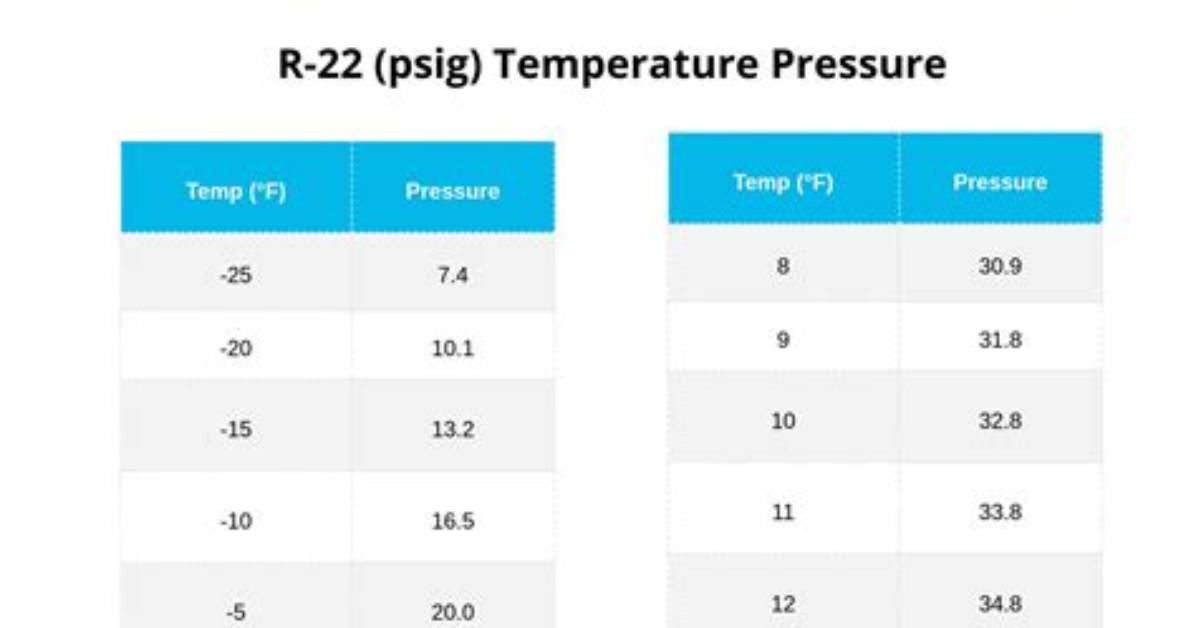

What Is a Pressure Temperature Chart?
Pt Charts Show the Relationship Between Pressure and Temperature of Given Refrigerants. by Changing the Pressure of the Refrigerant, the Technician Can Set Its...
.
Accordingly, what is a pressure temperature chart used for?
PT charts are most often used for three purposes: to set a coil pressure so that the refrigerant produces the desired temperature, to check the amount of superheat above the saturated vapor condition at the outlet of the evaporator and to check the amount of subcooling below the saturated liquid condition at the end of
Likewise, what should the high and low side pressures be? The low-side should be near 30 PSI at 90 degrees Fahrenheit or less. Pressure that is too much lower or higher shows there is a problem. On a properly working system, high-side pressure will be about twice the ambient temperature, plus 50 PSI.
Hereof, what is a saturation pressure temperature chart?
In this case, the difference between the measured temperature and the saturation temperature, is a measure of superheat. Corresponding temperature on the P-T chart for 70 psi = 41F (saturation temperature) The refrigerant tubing's (coming from the evaporator) temperature is measured at the condensing unit at 55F.
What should the low side pressure be in a r22 system?
Low side pressure for ac is going to vary slightly depending on metering device, expansion valve, capillary ect and load/return air temperature. At minimum you want to see above 58 psi which corresponds to 32 degrees f (freezing point of water ) to avoid freeze ups.
