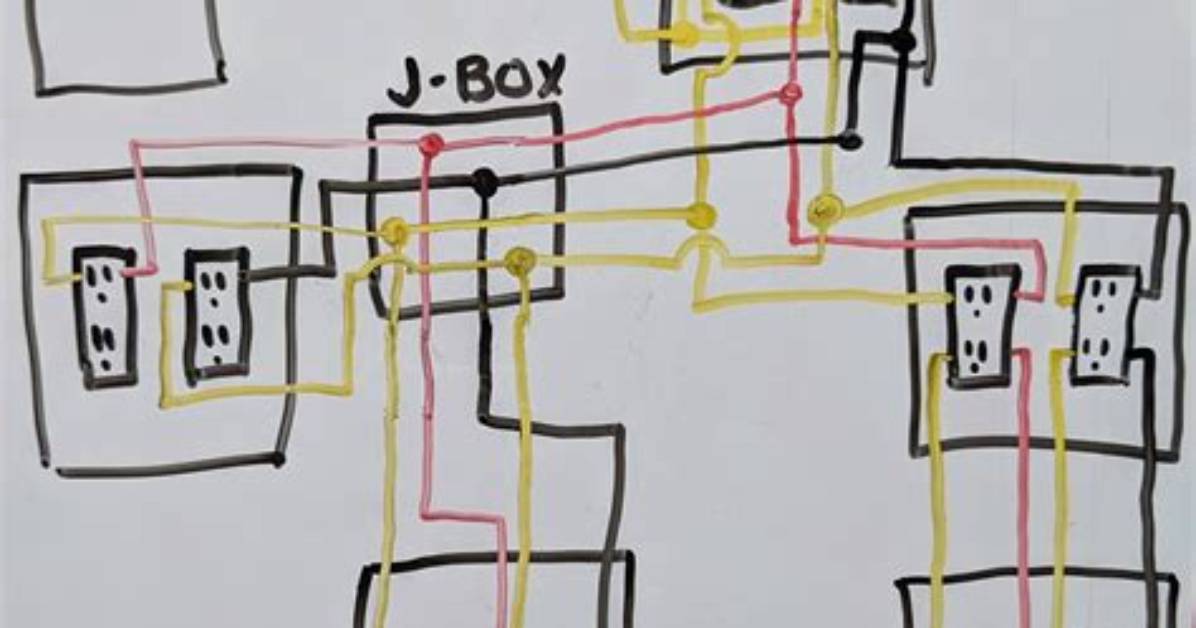

What Is an Mwbc

MWBC is an acronym for multi-wire branch circuit. It is a method of wiring when an electrician uses one cable, for two circuits. The two circuits share one neutral. A more technical definition would be when two ungrounded conductors share one grounded conductor.

Are multi wire branch circuits legal?

The National Electrical Code permits multiwire branch circuits, but adds requirements to make them safer. Section 210.4(B) states that in the panelboard where the branch circuit originates, all ungrounded conductors must be provided with a means to disconnect them simultaneously.

Can 2 different circuits share a neutral?

If the two circuits are from the same line, the main danger is overloading the neutral with too much current. A fire hazard as the neutral is not connected to a breaker. In short, stay safe and run separate neutrals for each circuit. you definitely do not want to share neutrals from different circuits.
