What Is Anti Windup Pi Controller?
When the Actuator Saturates, the Anti-Windup Scheme Will Be Activated and Prevent the Controller Output from Wandering Away. in Effect the Anti-Windup Scheme...
When the actuator saturates, the anti-windup scheme will be activated and prevent the controller output from wandering away. In effect the anti-windup scheme matches the controller output and actuator output. This is why the actuator output is also known as the tracking signal (TR).
What is anti-windup PID?

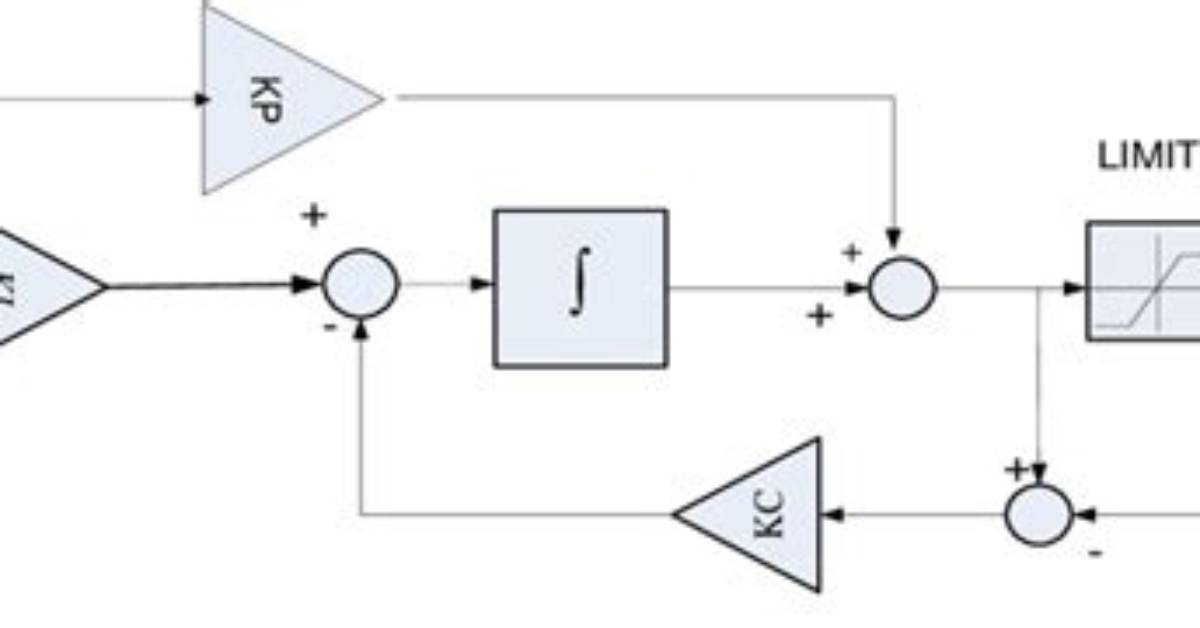

The back-calculation anti-windup method uses a feedback loop to discharge the PID Controller internal integrator when the controller hits specified saturation limits and enters nonlinear operation. ... Once back-calculation is enabled, the block has an internal tracking loop that discharges the Integrator output.
What is windup effect?
Abstract: Windup effect in a PID controller is the condition of cumulative error in the integral action. It saturates the system actuators, letting the system out of control with a higher controller action. Putting a saturator for the controller action, it is limited into a linear range of operating values.
