What Is Critical Thickness of Insulation in Heat Transfer
The Thickness Upto Which Heat Flow Increases and After Which Heat Flow Decreases Is Termed as Critical Thickness. How Do You Calculate Critical Thickness of...

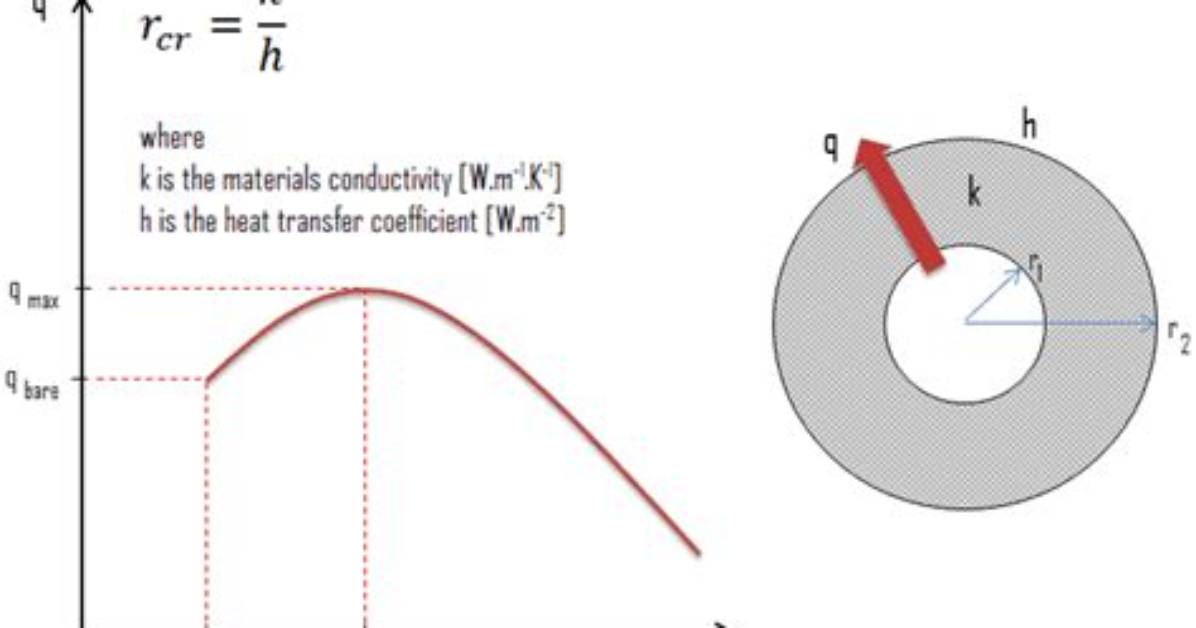

The thickness upto which heat flow increases and after which heat flow decreases is termed as critical thickness.
How do you calculate critical thickness of insulation?
- Find: (1) I (Safe current carried by wire) …
- Solution:
- Calculation for thermal resistance. Thermal resistance due to insulation. …
- Heat transfer rate. Q = dtR = (t1 – t3)R = (348 – 303)13.611. …
- Condition for safe current to flow through wire. Q = I2Re = I2.ρ.LAc. …
- Critical radius of insulation. rc = Kinsh = 0.58.
How does thickness of material affect heat transfer?
The heat rate is inversely proportional to the thickness of the medium travelled. So, the thicker the medium, the more time is required to transfer the thermal energy, and the lower the heat rate is. In addition to that, it also affects the way we deal with transient conduction.
