What Is Dynamic Range in Otdr

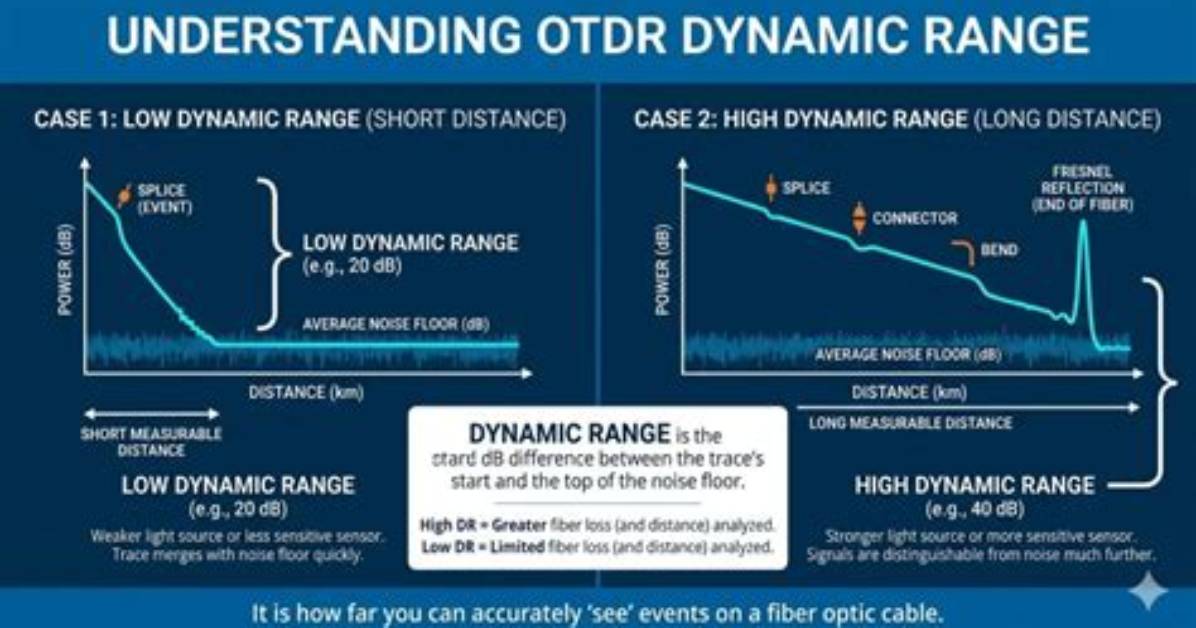

An important OTDR parameter is the dynamic range. This parameter reveals the maximum optical loss an OTDR can analyze from the backscattering level at the OTDR port down to a specific noise level. In other words, it is the maximum length of fiber that the longest pulse can reach.

What is dynamic range in fiber optic?

The Dynamic Range (DR) is the difference between the minimum and maximum signal that you can put through a link for a given traffic bandwidth. … Unlike gain or noise figure, dynamic range cannot be improved using amplification, but the window can be moved to suit higher or lower signals.

What is dB in OTDR?

Whenever tests are performed on fiber optic networks, the results are displayed on a power meter, OLTS or OTDR readout in units of “dB.” Optical loss is measured in “dB” which is a relative measurement, while absolute optical power is measured in “dBm,” which is dB relative to 1mw optical power Loss is a negative …
