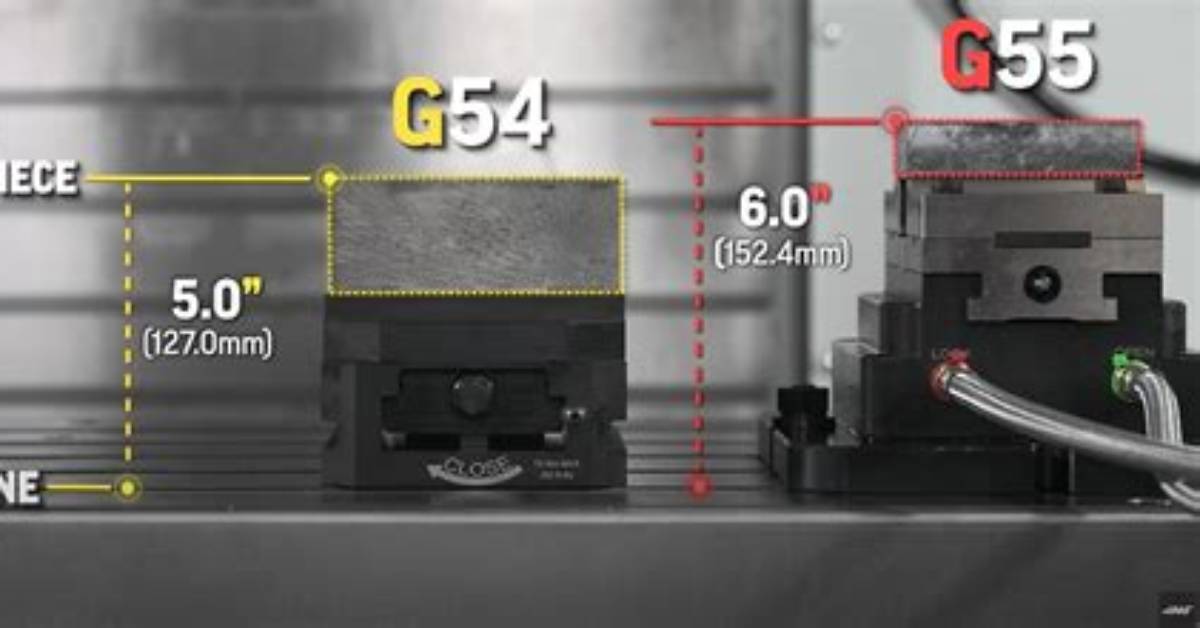

What Is G54 Work Offset
G54 X0. Y0. G54 Holds the Datum’s Distance in Relations with the Tip of the Tool. These Work Offsets Are Registered into the Machine to Hold the Distance from...
G54 X0. Y0. G54 holds the datum’s distance in relations with the tip of the tool. These work offsets are registered into the machine to hold the distance from the X, Y, Z position to part of the datum.
What does G54 mean?
CodeDescriptionMilling ( M )G53Machine coordinate systemMG54 to G59Work coordinate systems (WCSs)MG54.1 P1 to P48Extended work coordinate systemsMG61Exact stop check, modalM
How many work offsets can you have?
The Haas controls have always featured the provision for storage of 26 work offsets, namely G54-G59, and G110 to G129, but with customer’s needing to reset their machines as quickly as possible from one job to the next, having pre-stored work offsets was increasingly important and 26 just wasn’t enough.
