What Is Loop Circuit

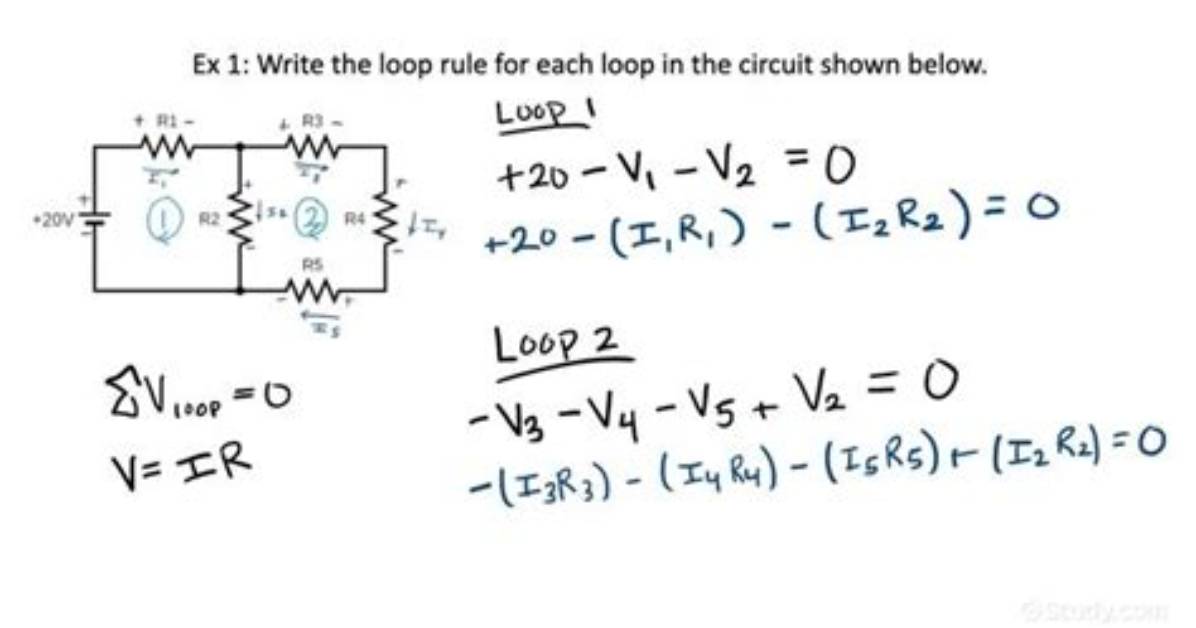

A loop in a circuit is any closed path along a circuit that does not encounter the same node more than once. The polarity of a voltage across an element changes the sign of the voltage in the sum of a loop.

What is a one loop circuit?

There are two different types of circuit. … A Series Circuit. This type of circuit has only one loop, e.g. A Parallel Circuit.

What is difference between circuit and loop?

As nouns the difference between circuit and loop is that circuit is the act of moving or revolving around, or as in a circle or orbit; a revolution; as, the periodical circuit of the earth around the sun while loop is a length of thread, line or rope that is doubled over to make an opening.
