What Is Modeling Coordinates in Computer Graphics?

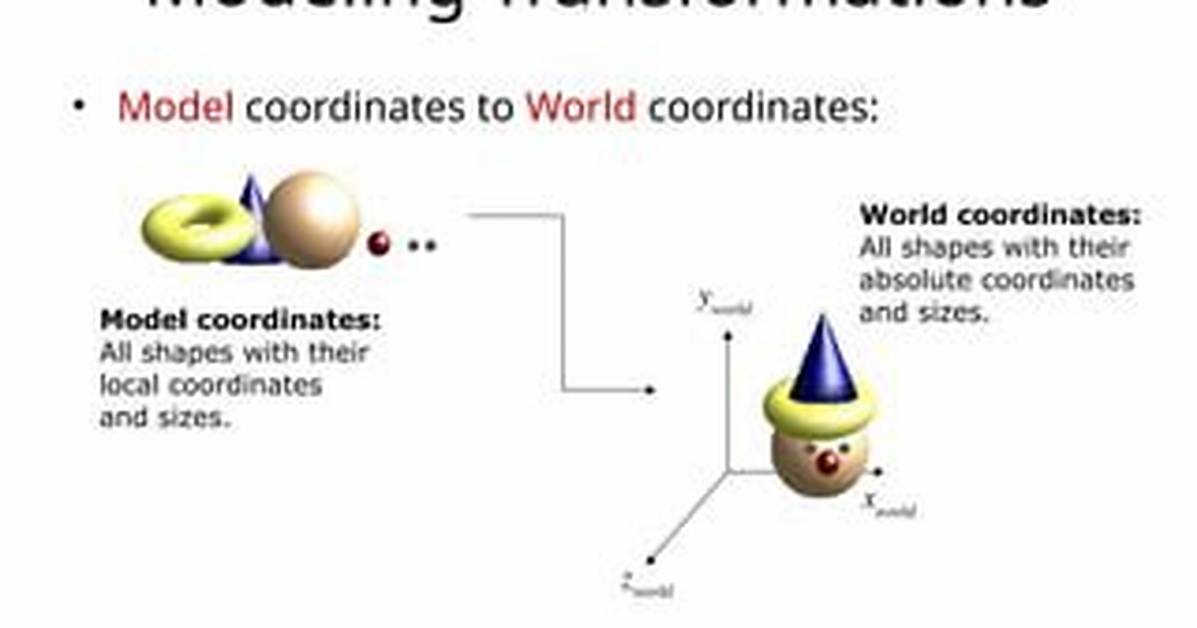

A Model Coordinate System is the unique coordinate space of the model. Two distinct models, each with their own coordinate systems can't interact with each other. There needs to be a universal coordinate system that allows each model to interact with each other. This universal system is called World Coordinate System.

.

Also know, what is coordinate in computer graphics?

Screen Coordinate System - This 2D coordinate system refers to the physical coordinates of the pixels on the computer screen, based on current screen resolution. ( E.g. 1024x768 ) Viewport Coordinate System - This coordinate system refers to a subset of the screen space where the model window is to be displayed.

what is MCS and WCS? The WCS is the coordinate system about which all design geometry is constructed. The MCS represents the natural coordinate system of the Machine Tool as defined by the machine tool vendor. Each machine tool has built into it a coordinate system that is defined by the geometry of the machine.

Accordingly, what is normalized coordinates in computer graphics?

Normalized Device Coordinates (NDC) Normalized device coordinates (NDCs) make up a coordinate system that describes positions on a virtual plotting device. The lower left corner corresponds to (0,0), and the upper right corner corresponds to (1,1).

How are matrices used in computer graphics?

The usefulness of a matrix in computer graphics is its ability to convert geometric data into different coordinate systems. In simple terms, the elements of a matrix are coefficients that represents the scale or rotation a vector will undergo during a transformation.

Related Question Answers

What is the XYZ axis?

The xyz coordinate axis system is denoted 3. , and is represented by three real number lines. meeting at a common point, called the origin. The three number lines are called the x-axis, the y- axis, and the z-axis.

Must Read

What is 3d coordinate system?

A three-dimensional Cartesian coordinate system is formed by a point called the origin (denoted by O) and a basis consisting of three mutually perpendicular vectors. These vectors define the three coordinate axes: the x−, y−, and z−axis. They are also known as the abscissa, ordinate and applicate axis, respectively.
