What Is Offset on Wheels

The higher the number, the less lip there is on the wheel and the more forward the wheel face will be. A 20mm offset means the wheel face is more toward the outside of the vehicle than a 1mm offset.

Does wheel offset matter?

Proper offset assures your new package has enough clearance so nothing rubs against the suspension, brakes or vehicle body (like fenders, bumpers and mud flaps). It’s also important for driving safety, since the wrong offset can reduce vehicle stability or interfere with braking.

What does 25 offset mean on wheels?

– Wheel offset is the distance (in mm) that the hub of the wheel, (where you bolt the wheel to the car) is from the center of the wheel. Example 1: +25 mm offset = The center of the wheel is 25 mm closer to the outside, or curbside, of the wheel.

Is 10mm offset a big difference?

10mm isn’t a huge amount. On some cars it makes little difference. Tough you say. But if you want exact fitsee if the dealer still make it right.

How much offset is too much?

The perils of bad offset

Tire rub is even worse, as it will very quickly rip up the inside sidewall of the tire, an area where the damage is very hard to detect until the tire blows out. This is why that ideally, you don’t want the new offset to be more than 5 millimeters away from the old offset in either direction.

How much offset difference is OK?

It’s best to allow an 1/8-inch of play for potentially wider tires. See all 11 photos Offset not only affects how far the wheel/tire sticks out of the fender well but also its proximity to suspension components like knuckles, and control arms.

How do I know my wheel offset?

Subtract the smaller number from the larger number. That gives you the offset of the wheel. If the centerline number is smaller than the hub measurement, offset is positive.

Can you decrease wheel offset?

Can I change offset without changing wheels? Yes. Companies make wheel spacers with varying thicknesses which allow you to change the offset of your wheel quickly and easily. The wheel spacers essentially reduce the distance from the center of the wheel to the hub, thus reducing positive offset.

How far does offset stick out?

Well-Known Member. Yup.. – 12 offset. Sticks out sbout an inch.

Does positive offset push wheels out?

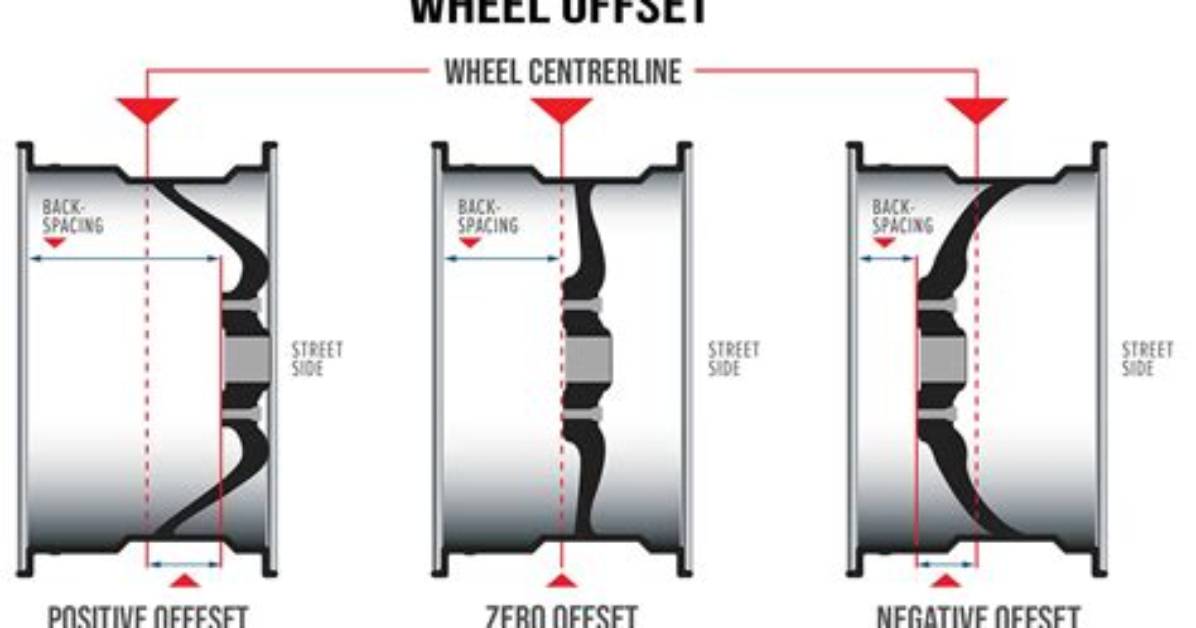

Check out the diagrams below for a visual illustration of each offset type. You can see how a positive offset will tuck the assembly further under the fender, while a zero or negative offset pushes the wheel out towards or even past the fender.

Does wheel offset affect alignment?

Changing wheel size/offset will not affect the settings as they are, the wheels are aligned to the vehicle dependent upon the suspension design, which is in turn designed usually for a specific size and offset tire/rim combination and handling characteristics.

Does negative offset move wheel out?

Negative offset wheels have the opposite effect moving the wheel and tire assembly out and away from the brakes, suspension, and body. Almost all aftermarket 4×4 wheels that are 9 inches wide or wider have a negative offset. They are typically wider than stock wheels to accommodate wider and larger diameter tires.

What does 30mm offset mean?

A stock wheel, no matter what OEM manufacturer, is going to run a +high offset, typically in the +30mm to +40mm range. This allows the wheel to “suck-in” under the vehicle more, keeping your center of gravity under the cockpit and reducing overall machine width.
