What Is Spindle in Cnc Machine?

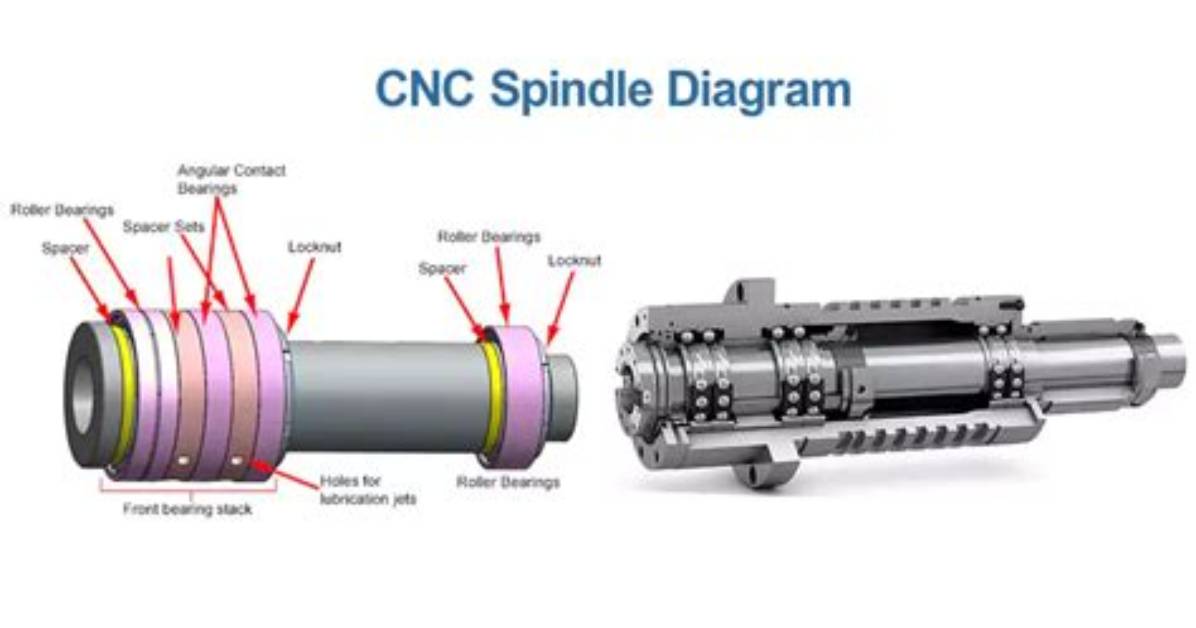

The Cnc Spindle Is the Heart of Any Mill. It Consists of a Rotating Assembly with a Taper Where Tool Holders May Be Installed. a Cnc Spindle Motor with...
.
Accordingly, how does a CNC spindle work?
Machining spindles are often powered by electricity, but they can also be powered by compressed air. A spindle is devised of a motor, a taper for holding tools, and a shaft that holds together all the separate components. Spindles rotate on an axis, which receives input on movement from the accompanying CNC controller.
Additionally, what is the use of spindle in a drilling machine? The spindle holds the drill or cutting tools and revolves in a fixed position in a sleeve. In most drilling machines, the spindle is vertical and the work is supported on a horizontal table. The sleeve or quill assembly does not revolve but may slide in its bearing in a direction parallel to its axis.
Furthermore, what is a machine spindle?
In machine tools, a spindle is a rotating axis of the machine, which often has a shaft at its heart. A machine tool may have several spindles, such as the headstock and tailstock spindles on a bench lathe. The main spindle is usually the biggest one.
How do I choose a CNC spindle?
For steel, we should primarily choose a lower rpm spindle (15,000 to 18,000 rpm) and accordingly cutters up to 10mm - 3.3kW spindle, cutters up to 12mm - 5.6kW spindle, cutters up to 16mm - 7kW spindle, cutters up to 20mm - 10kW spindle.
