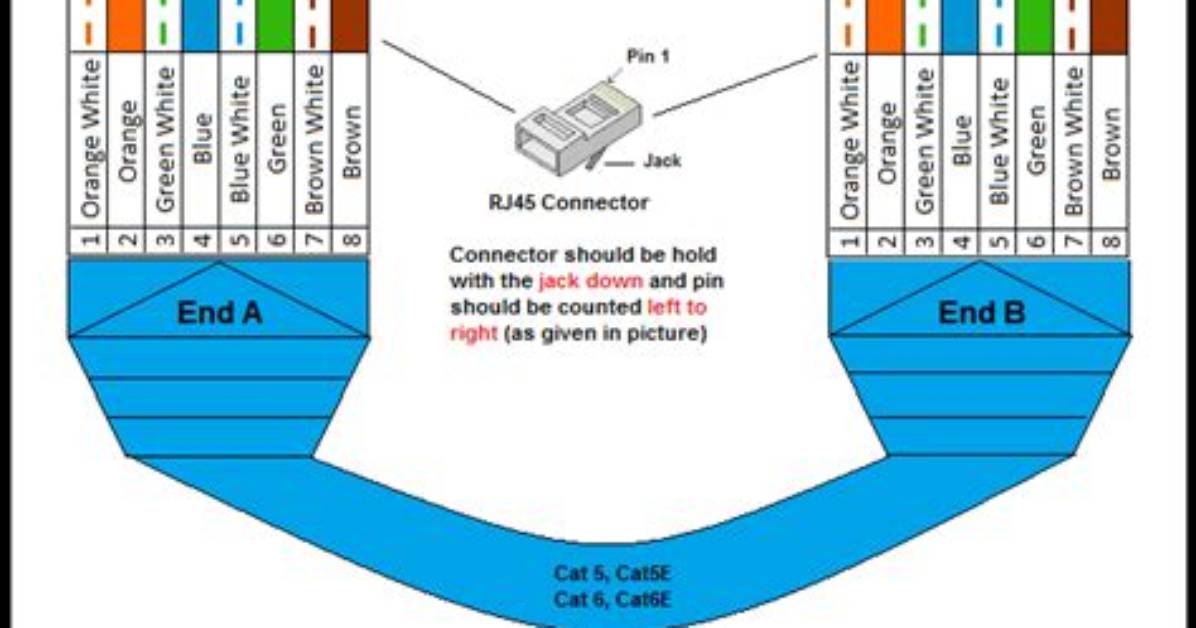

What Is Straight Cable Colour Coding?
A Straight-Thru Cable Has Identical Ends. a Crossover Cable Has Different Ends. a Straight-Thru Is Used as a Patch Cord in Ethernet Connections. a Crossover Is...
.
Furthermore, what is straight cable?
Straight-through Cable Definition Straight-through cable is a type of twisted pair copper wire cable for local area network (LAN) use for which the RJ-45 connectors at each end have the same pinout (i.e., arrangement of conductors). Straight-through cable is also commonly referred to as patch cable.
Beside above, how do you make a straight through cable?
- Step 1: Strip the cable jacket about 1.5 inch down from the end.
- Step 2: Spread the four pairs of twisted wire apart.
- Step 3: Untwist the wire pairs and neatly align them in the T568B orientation.
- Step 4: Cut the wires as straight as possible, about 0.5 inch above the end of the jacket.
Likewise, what do the different colors of Ethernet cables indicate?
Grey-colored cables typically represent standard ethernet connections, while green cables represent crossover ethernet connections. Yellow cables are used to signify POE (power over ethernet), while blue cables are used for terminal server connections.
Are Ethernet cables color coded?
There is no functional difference in cabling of different colours - this coding simply highlights the purpose of the connection. Most commonly vendors sometimes specify the use of colours to help clarify the connection type and what it is being used for, or to distinguish the connection from other vendors.
