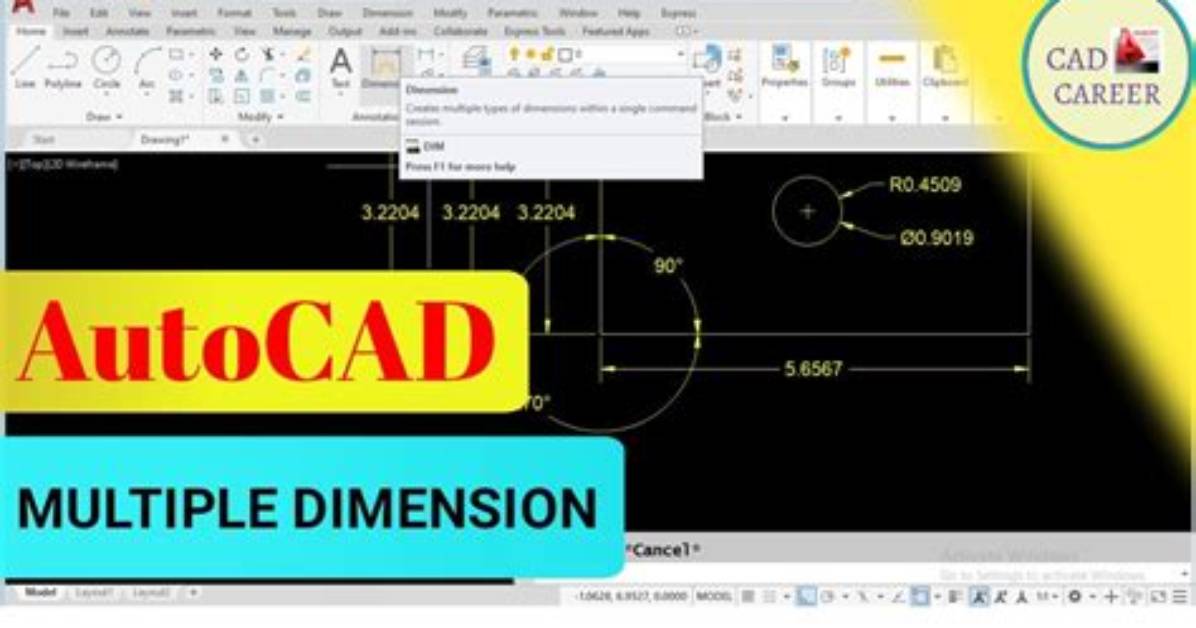

What Is the Command for Dimension in Autocad?

.

Likewise, how do I show dimensions in Autocad?

To Display Dimension Values in Sub-units

1. Click Home tab Annotation panel Dimension Style. Find.
2. In the Dimension Style Manager, select the style you want to change. Click Modify.
3. In the Modify Dimension Style dialog box, Primary Units tab or Alternate Units tab, under Zero Suppression, select Leading.
4. Click OK.
5. Click Close to exit the Dimension Style Manager.

Secondly, how do you do continuous dimension in Autocad? Prompts you to select a linear, ordinate, or angular dimension to use as the continued dimension. After you select a continued dimension, the Specify a Second Extension Line Origin prompt or the Specify Feature Location prompt is redisplayed. To end the command, press Enter twice, or press Esc.

Similarly one may ask, how do I set dimension text in Autocad?

Add text to a dimension

1. On the drawing sheet, right-click the dimension, and then select Text from the menu.
2. In the Format Text dialog box, enter the text in the text box. You can use the options on the dialog box to add symbols and named parameters or change the text formatting.

How do you read dimensions?

For example, a window that is 24 inches wide by 30 inches tall would be written as 24" X 30". In the manufacturing industry, this standard window size is referred to as a 2030 or 2 feet by 3 feet. In a rectangular swimming pool, the dimension might read 16' X 30' X 9' or 16 feet wide by 30 feet long and 9 feet deep.
