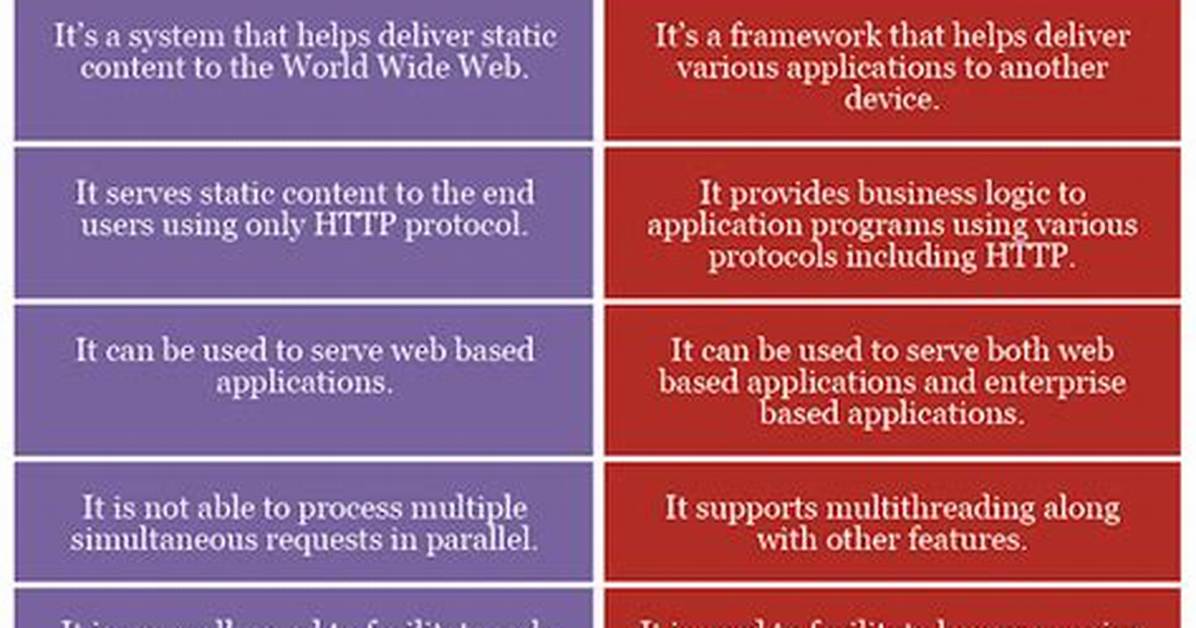

What Is the Difference Between Application Server and Web Server?

Most of the times these terms Web Server and Application server are used interchangeably.

Following are some of the key differences in features of Web Server and Application Server:

• Web Server is designed to serve HTTP Content. App Server can also serve HTTP Content but is not limited to just HTTP. It can be provided other protocol support such as RMI/RPC
• Web Server is mostly designed to serve static content, though most Web Servers have plugins to support scripting languages like Perl, PHP, ASP, JSP etc. through which these servers can generate dynamic HTTP content.
• Most of the application servers have Web Server as integral part of them, that means App Server can do whatever Web Server is capable of. Additionally App Server have components and features to support Application level services such as Connection Pooling, Object Pooling, Transaction Support, Messaging services etc.
• As web servers are well suited for static content and app servers for dynamic content, most of the production environments have web server acting as reverse proxy to app server. That means while servicing a page request, static contents (such as images/Static HTML) are served by web server that interprets the request. Using some kind of filtering technique (mostly extension of requested resource) web server identifies dynamic content request and transparently forwards to app server

Example of such configuration is Apache Tomcat HTTP Server and Oracle (formerly BEA) WebLogic Server. Apache Tomcat HTTP Server is Web Server and Oracle WebLogic is Application Server.

In some cases the servers are tightly integrated such as IIS and .NET Runtime. IIS is web server. When equipped with .NET runtime environment, IIS is capable of providing application services.

This is a detailed answer with some scenarios to clearly understand the difference and similarity, and how both can work in conjunction.

Application Server is a term that sometimes is mixed with a web server. While a web server handles mainly HTTP protocols, the application server deals with several different protocols, including, but not limited, to HTTP.

The Web server's main job is to display the site content and the application server is in charge of the logic, the interaction between the user and the displayed content. The application server is working in conjunction with the web server, where one displays and the other one interacts.

The information traveling back and forth between the server and its client is not restricted to simple display markup, but to interaction between the two.

In most cases, the server creates this interaction through a component API, such as J2EE (Java 2 Platform), EJB (Enterprise JavaBean) and other different application software models.

An example:

The best way to understand the difference between the scenarios where an application server works with the web server versus a scenario where there isn't an application server is through an online store.

Scenario 1: Web server without an application server

you have an online store with only a web server and no application server. The site will provide a display where you can choose a product from. When you submit a query, the site performs a lookup and returns an HTML result back to its client. The web server sends your query directly to the database server (be patient, I will explain this one in our next nugget) and waits for a response. Once received, the web server formulates the response into an HTML file and sends it to your web browser. This back and forth communication between the server and database server happens every time a query is run.

Scenario 2: Web server with an application server

if the query you want to run has already been done previously and no data has changed since then, the server will generate the results without having to send the request to the database server. This allows a real-time query where a second client can access the same info and receive real time, reliable information without sending another duplicate query to the database server. The server basically acts as an intermediate between the database server and the web server. This allows the information pulled to be reusable while in the first scenario, since this info is embedded in a particular and "customized" HTML page, this is not a reusable process. A second client will have to request the info again and receive another HTML embedded page with the info requested -highly inefficient. Not to mention that this type of server is very flexible due to its ability to manage its own resources, including security, transaction processing, messaging and resource pooling.

To support such a variety of complex tasks this server must have a built in redundancy, great processing power and high amount of RAM to handle all the data it's pulling in real time.

Both terms are very generic, one containing the other one and vice versa in some cases.

• Web server: serves content to the web using http protocol.

• Application server: hosts and exposes business logic and processes.

I think that the main point is that the web server exposes everything through the http protocol, while the application server is not restricted to it.

That said, in many scenarios you will find that the web server is being used to create the front-end of the application server, that is, it exposes a set of web pages that allow the user to interact with the business rules found into the application server.

Web server

Run python -m 'SimpleHTTPServer' and go to . What you see is a web server at its workings. The server simply serves files over HTTP stored on your computer. The key point is that all this is done on top of the HTTP protocol. There also exist FTP servers for example which do exactly the same thing (serving stored files) but on top of a different protocol.

Application server

Say we have a tiny application like below (snippet from Flask).

@app.route('/')
def homepage():
    return '<html>My homepage</html>'

@app.route('/about')
def about():
    return '<html>My name is John</html>'

The small example program maps the URL / to the function homepage() and the /about to the function about().

To run this code we need an application server (e.g. Gunicorn) - a program or module that can listen for requests from a client and using our code, return something dynamically. In the example we simply return some very bad HTML.

What's the business logic all the other people talk about? Well, since a URL maps to somewhere specifically in our codebase, we are hypothetically showing some logic about how our program works.

Recapping

web server - serves files stored somewhere (most commonly .css, .html, .js). Common web servers are Apache, Nginx or even Python's SimpleHTTPServer.

application server - serves files generated on the fly. Essentially most web servers have some sort of plugins or even come with built-in functionality to do that. There exist also strict application servers like Gunicorn (Python), Unicorn (Ruby), uWSGI (Python), etc.

Notice that you can actually build a web server with the code of the application server. This is done in some cases during development where you do not want to have a gazillion of different servers running on your computer.

As Rutesh and jmservera pointed out, the distinction is a fuzzy one. Historically, they were different, but through the 90's these two previously distinct categories blended features and effectively merged. At this point is is probably best to imagine that the "App Server" product category is a strict superset of the "web server" category.

Some history. In early days of the Mosaic browser and hyperlinked content, there evolved this thing called a "web server" that served web page content and images over HTTP. Most of the content was static, and the HTTP 1.0 protocol was just a way to ship files around. Quickly the "web server" category evolved to include CGI capability - effectively launching a process on each web request to generate dynamic content. HTTP also matured and the products became more sophisticated, with caching, security, and management features. As the technology matured, we got company-specific Java-based server-side technology from Kiva and NetDynamics, which eventually all merged into JSP. Microsoft added ASP, I think in 1996, to Windows NT 4.0. The static web server had learned some new tricks, so that it was an effective "app server" for many scenarios.

In a parallel category, the app server had evolved and existed for a long time. companies delivered products for Unix like Tuxedo, TopEnd, Encina that were philosophically derived from Mainframe application management and monitoring environments like IMS and CICS. Microsoft's offering was Microsoft Transaction Server (MTS), which later evolved into COM+. Most of these products specified "closed" product-specific communications protocols to interconnect "fat" clients to servers. (For Encina, the comms protocol was DCE RPC; for MTS it was DCOM; etc.) In 1995/96, these traditional app server products began to embed basic HTTP communication capability, at first via gateways. And the lines began to blur.

Web servers got more and more mature with respect to handling higher loads, more concurrency, and better features. App servers delivered more and more HTTP-based communication capability.

At this point the line between "app server" and "web server" is a fuzzy one. But people continue to use the terms differently, as a matter of emphasis. When someone says "web server" you often think HTTP-centric, web UI, oriented apps. When someone says "App server" you may think "heavier loads, enterprise features, transactions and queuing, multi-channel communication (HTTP + more). But often it is the same product that serves both sets of workload requirements.

• WebSphere, IBM's "app server" has its own bundled web server.
• WebLogic, another traditional app server, likewise.
• Windows, which is Microsoft's App Server (in addition to being its File&Print Server, Media Server, etc.), bundles IIS.

As many have said before, web servers handle HTTP petitions, while application servers handle petitions for distributed components. So, maybe the easiest way to understand the difference is to compare the two products in regards to programming environment they offer.

Web Server -> Programming Environment

IIS : ASP (.NET)

Tomcat : Servlet

Jetty : Servlet

Apache : Php, CGI
