What Is the Difference Between Stp Rstp Mstp?

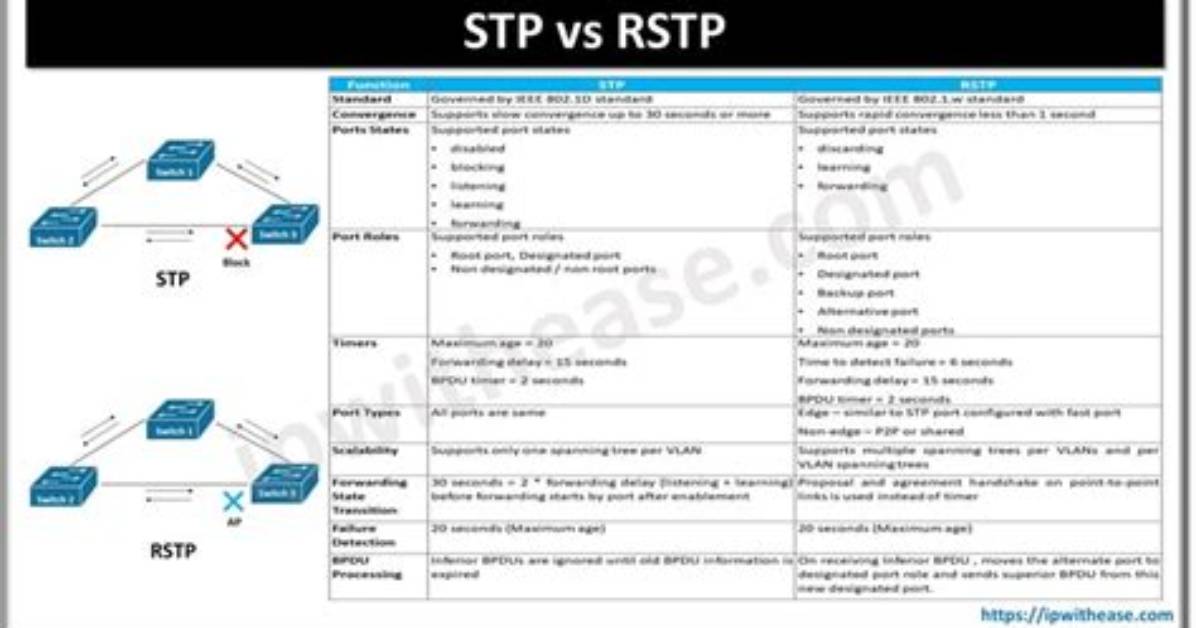

The differences between Spanning Tree Protocol (STP), Rapid Spanning Tree Protocol (RSTP), and Multiple Spanning Tree Protocol (MSTP) are as follows: STP: only supports a single instance. RSTP: supports fast convergence and a single instance. MSTP: includes the advantages of RSTP, and supports multiple instances.

Similarly, you may ask, what is the difference between STP and RSTP?

one difference is that Rapid Spanning Tree Protocol (RSTP IEEE 802.1W) assumes the three Spanning Tree Protocol (STP) ports states Listening, Blocking, and Disabled are same (these states do not forward Ethernet frames and they do not learn MAC addresses).

Must Read

Furthermore, what is MSTP network? The Multiple Spanning Tree Protocol (MSTP) and algorithm, provides both simple and full connectivity assigned to any given Virtual LAN (VLAN) throughout a Bridged Local Area Network. These Regions and the other Bridges and LANs are connected into a single Common Spanning Tree (CST).

Accordingly, is MSTP compatible with RSTP?

MSTP is backwards compatible with STP and with RSTP. BPDUs are sent untagged.

Why RSTP is faster than STP?

The STP process to determine network state transitions is slower than the RSTP process because it is timer-based. RSTP converges faster because it uses a handshake mechanism based on point-to-point links instead of the timer-based process used by STP.

How does Rstp work?

RSTP works by adding an alternative port and a backup port compared to STP. These ports are allowed to immediately enter the forwarding state rather than passively wait for the network to converge. * Alternate port – A best alternate path to the root bridge. This path is different than using the root port.

Why we use STP protocol?

Spanning Tree Protocol (STP) is a Layer 2 protocol that runs on bridges and switches. The main purpose of STP is to ensure that you do not create loops when you have redundant paths in your network. Loops are deadly to a network.

What is the use of STP protocol?

Spanning Tree Protocol. The Spanning Tree Protocol (STP) is a network protocol that builds a loop-free logical topology for Ethernet networks. The basic function of STP is to prevent bridge loops and the broadcast radiation that results from them.

What is STP convergence time?

Spanning Tree Protocol (STP) convergence (Layer 2 convergence) happens when bridges and switches have transitioned to either the forwarding or blocking state. If a port has to go through all four states, convergence takes 50 seconds: 20 seconds in blocking, 15 seconds in listening, and 15 seconds in learning.

What is STP and how does it work?

The Spanning Tree Protocol (STP) is responsible for identifying links in the network and shutting down the redundant ones, preventing possible network loops. In order to do so, all switches in the network exchange BPDU messages between them to agree upon the root bridge.

What does Rstp mean?

Rapid Spanning Tree Protocol

What is protocol 802.1 D used for?

802.1D is the IEEE MAC Bridges standard which includes Bridging, Spanning Tree and others. It is standardized by the IEEE 802.1 working group. It includes details specific to linking many of the other 802 projects including the widely deployed 802.3 (Ethernet), 802.11 (Wireless LAN) and 802.16 (WiMax) standards.

What is Portfast?

Portfast shortens/bypasses normal STP timers to get ports up and forwarding as quickly as practical. This typically is a host PC/Workstation. It's used to minimimize the impact of STP TCN BPDU traffic when a simple host is being rebooted or connected to a switch. It's a Layer 2 function so routers/firewalls are out.

What is STP and its types?

There are many types of STP variants. Cisco's proprietary variants are Per-VLAN Spanning Tree Protocol (PVST), Per-VLAN Spanning Tree Protocol Plus (PVST+) and Rapid PVST+. IEEE's standards are Rapid Spanning Tree Protocol (RSTP) and Multiple STP (MSTP).

How do I configure MSTP?

The overview of configuration is as follows:
  1. Enable MSTP globally on each switch.
  2. Configure Switch A, Switch B and Switch C in the same region.
  3. Configure the priority of Switch B as 4096 to set it as the root bridge in instance 1; configure the priority of Switch C as 4096 to set it as the root bridge in instance 2.

What is the difference between RSTP and Pvst?

“RSTP” stands for “Rapid Spanning Tree Protocol” while “PVST” does the same for “Per-VLAN Spanning Tree.” RSTP is an improvement of STP (Spanning Tree Protocol) in terms of being newer and faster. The RSTP is able to respond to changes in six seconds. Also, it has all the features of previous Cisco proprietary methods.

What is STP in computer?

STP. Short for Spanning Tree Protocol, STP is a networking protocol first designed by Radia Perlman. It creates a single path over a network, preventing any loops from occurring, even if there are multiple paths to the same destination.

What is VLAN in networking?

A virtual LAN (VLAN) is any broadcast domain that is partitioned and isolated in a computer network at the data link layer (OSI layer 2). LAN is the abbreviation for local area network and in this context virtual refers to a physical object recreated and altered by additional logic.

Is MST Cisco proprietary?

MST is a new IEEE standard derived from Cisco's proprietary Multi-Instance Spanning-Tree Protocol (MISTP) implementation. With MST, you can map a single spanning-tree instance to several VLANs.

What is Cisco MST?

Multiple Spanning Tree (MST), which is the IEEE 802.1s standard, allows you to assign two or more VLANs to a spanning tree instance. MST fails over to IEEE 802.1D Spanning Tree Protocol (STP) when it receives an 802.1D message from a neighboring switch.

Which three components are combined to form a bridge ID?

The three components that are combined to form a bridge ID are bridge priority, extended system ID, and MAC address.

What is MST revision number?

The revision number in combination with the MST name is used as a unique way to identify a MST Region. This is what the IEEE 802.1s doc says about the Configuration Identifier ( NAME + Revision Number) --Section 13.7. It is essential that all Bridges within an. MST Region agree on the allocation of VIDs.
