What Is the Difference Between T568A and B

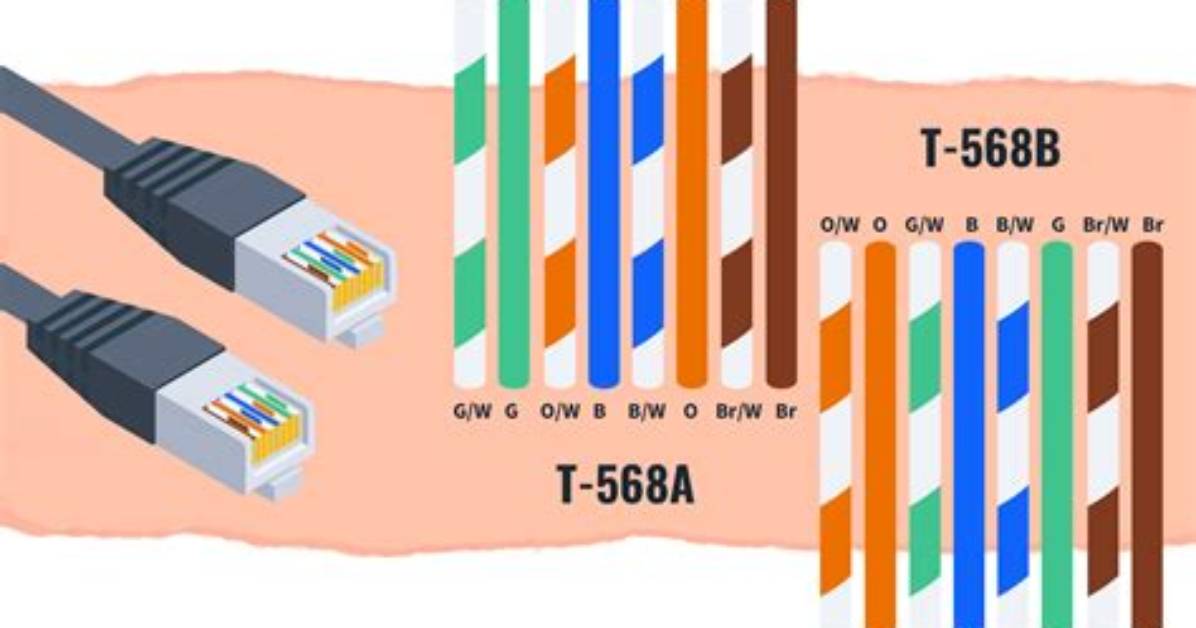

T568A and T568B are the two color codes used for wiring eight-position RJ45 modular plugs. … The only difference between T568A and T568B is that the orange and green pairs are interchanged.

Does it matter if I use 568A or B?

The 568A and 568B colour code schemes are used to wire the RJ45 eight position modular plugs correctly. … There is no difference between the two wiring schemes in connectivity or performance when connected form one device to another, so long as the devices are wired for the same scheme.

What is the purpose of T568A and T568B?

T568A and T568B are the wiring standards that define the pinout (connection order) for terminating twisted-pair network cable in eight-pin modular connector plugs and jacks. These wiring standards are one part of the TIA/EIA-568 telecommunications cabling standards.
