What Is the Minimum Bend Radius for a Bonding Conductor

At other locations, bends in the bonding conductors should be limited to the greatest practical inside bend radius with a minimum bend radius of 10 times the bonding conductor diameter recommended. In all cases, the minimum bend radius angle shall be 90° or greater.

What is the minimum size for a bonding conductor?

The bonding conductor or grounding electrode conductor shall not be smaller than 14 AWG. It shall have a current-carrying capacity not less than that of the grounded metallic member(s). The bonding conductor or grounding electrode conductor shall not be required to exceed 6 AWG.

What is the minimum bend radius for sheet metal?

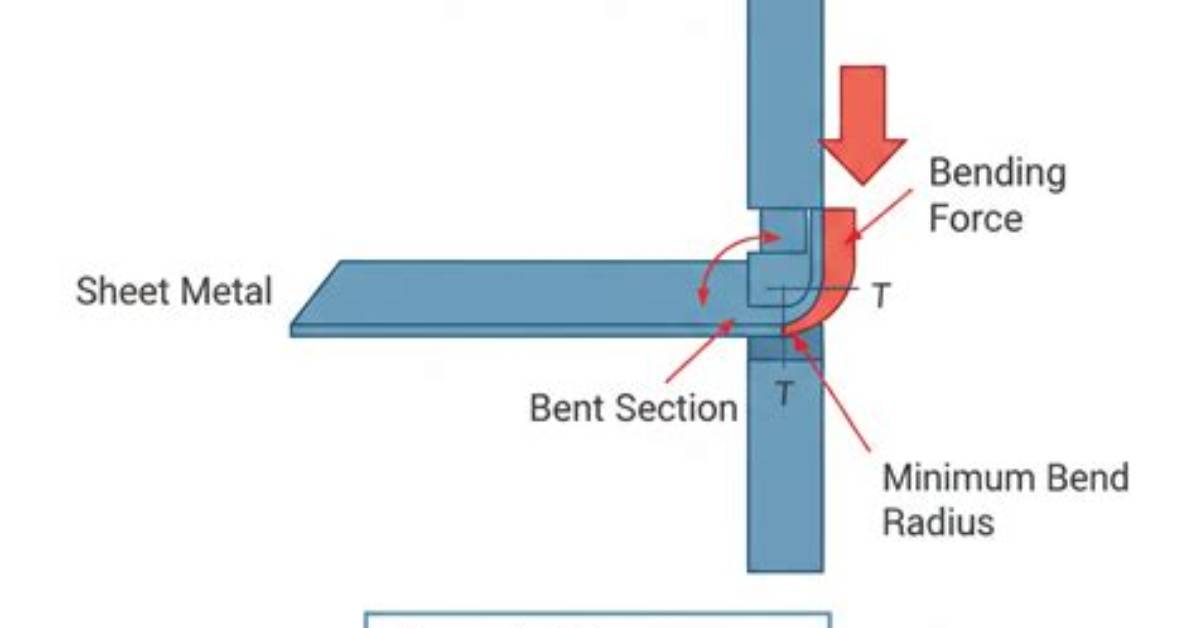

We recommend a minimum bend radius of 1t for all sheet metal parts. Thus the smallest radius of any bend in a sheet should be at least equal to the thickness of the sheet. For example, if the thickness of the sheet is 1 mm, the minimum bend radius should be 1 mm.
