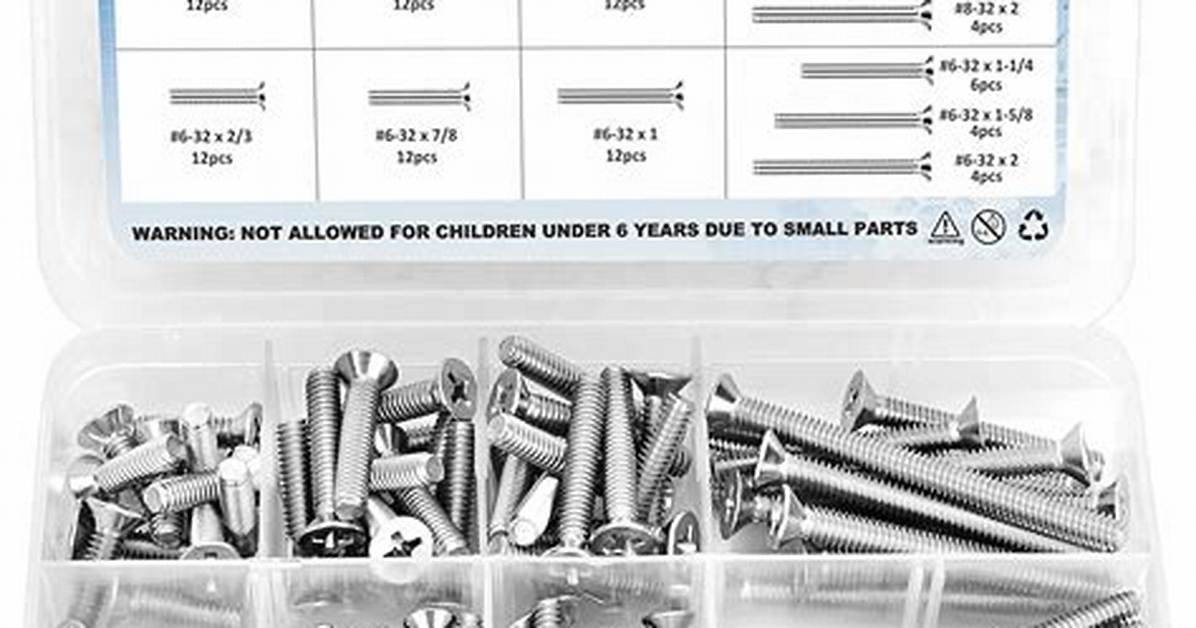

What Thread Are Electrical Socket Screws?
Electrical Socket Boxes Use a M3. 5 / 3.5Mm Thread Screw. . Likewise, What Thread Size Are Outlet Screws? the Screw That Holds the Device on Is a 6-32, Usually...
.
Likewise, what thread size are outlet screws?
the screw that holds the device on is a 6-32, usually about 1 inch. on steel boxes, the screw that holds the cover or plaster ring on is an 8-32, fairly short. trim plate screws are 6-32 but they are painted to match the plates. the screw that holds the device on is a 6-32, usually about 1 inch.
Beside above, what size screw goes in plastic electrical box? Typical coverplate screws are 6-32. If the box is a round type, as commonly used for ceiling lights, then an 8-32 screw would be appropriate. If the box is rectangular, as used for wiring devices (switch, outlet, etc) then a 6-32 screw is what you will need.
Beside above, what are socket screws?
Socket Screws. A wide range of socket screws, useful in a variety of applications requiring a strong bolt or screw where access is limited. Socket screws are also known as Allen head screws or bolts, and are fastened using a hexagonal or shaped wrench, requiring a key to tighten and remove.
What size is a #10 screw?
US Machine Screw Diameters
| Size | Thread Diameter | |
|---|---|---|
| Decimal | Nearest Fractional | |
| #10 | 0.19" | 3/16" |
| #12 | 0.21" | 7/32" |
| #14 | 0.24" | 1/4" |
