What's the Difference Between Psig and Psid?

Psig (Gauge Pressure): a measure of pressure in psi that is referenced to ambient pressure. ... Psid (Pressure Differential): a measure of the difference between two pressures.

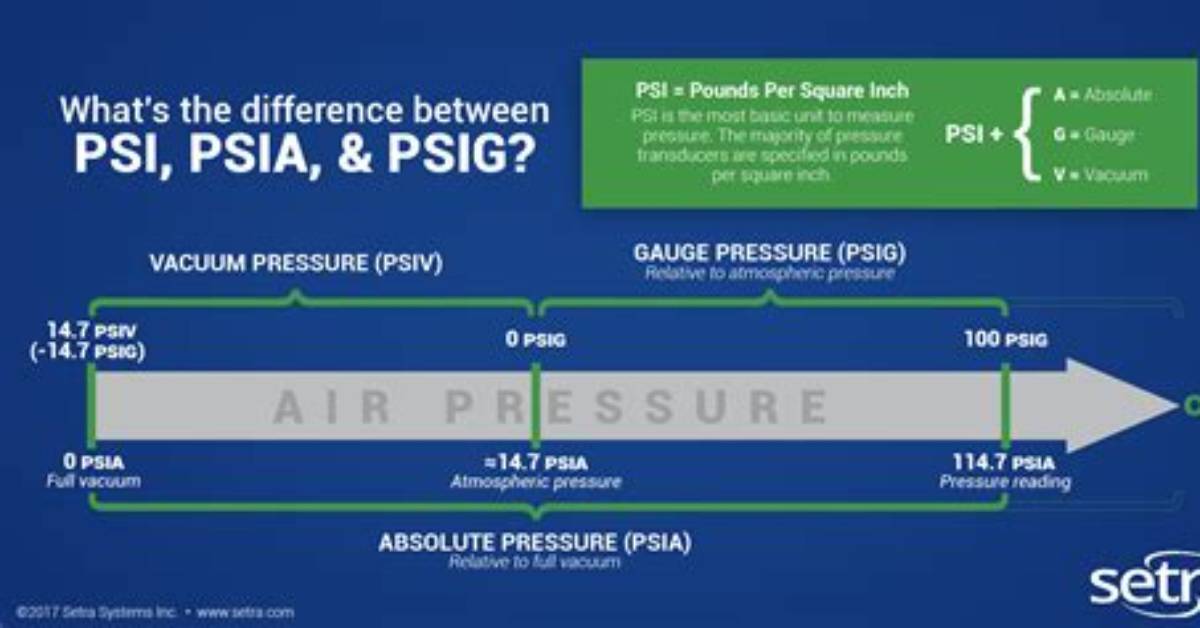

Is there a difference between PSI and PSIG?

PSI: This term is short for “pound-force per square inch,” typically referring to gas or liquid. ... PSIG: This is the term used for PSI in relation to atmospheric pressure. PSIG is also known as Gauge Pressure. The ambient pressure at sea level is about 14.7 PSIA, but ambient PSIG is always 0.

What PSIG means?

PSIG -PSI Gauge

Gauge pressure is measured relative to ambient atmospheric pressure. A vessel completely void of any air molecules (at sea level) would be roughly -14.7 PSIG, and ambient air pressure is always measured as 0 PSIG, regardless of whatever current barometric pressure is.
