When Maximum Power Transfer?

The maximum power theorem, better known as the maximum power transfer theorem, is an essential tool for ensuring successful system design. Put simply, this theorem states that the maximum power that can be transferred from source to load is 50%, which occurs when source impedance is exactly matched to load impedance.

What is maximum power transfer and when does it occur?

Electrically, “Maximum power transfer” occurs when the internal resistance of the source device is equal to the resistance of the load device. In this simple circuit, we have a variety of loads, (1 ohm, 2 ohms, 3 ohms etc.) that can be connected across a 6 volt source with a constant internal resistance of 3 ohms.

What is condition for maximum power transfer?

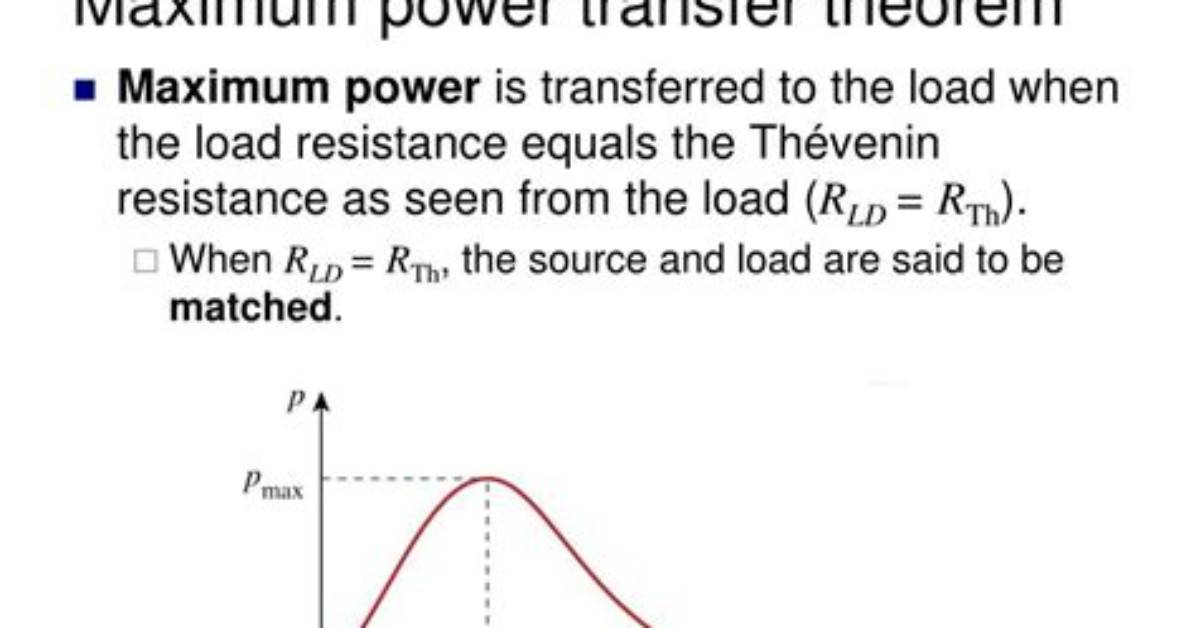

In electrical engineering, the maximum power transfer theorem states that, to obtain maximum external power from a source with a finite internal resistance, the resistance of the load must equal the resistance of the source as viewed from its output terminals.
