Where Do Weldment Profiles Go in Solidworks

The default location for weldment profiles is install_dir \lang\ language \weldment profiles. You can file your custom profile in the folder structure that SOLIDWORKS provides, or you can create a separate folder structure.

How do I add a weldment profile in SOLIDWORKS 2021?

1. Open a new part.

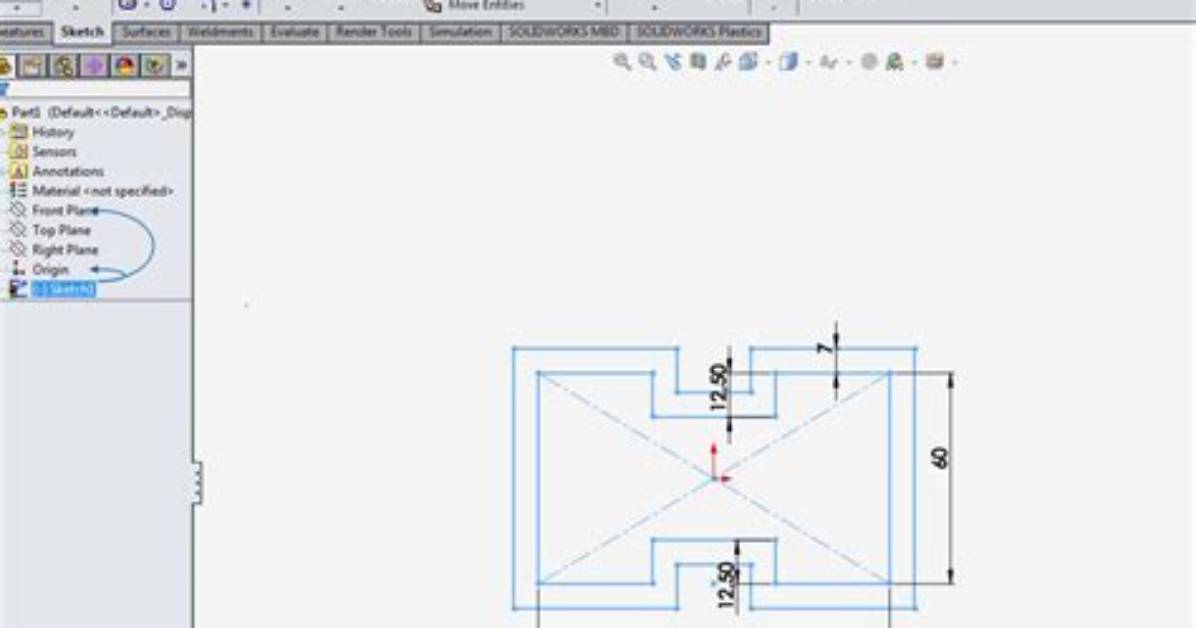

2. Sketch a profile. …
3. Close the sketch.
4. In the FeatureManager design tree, select Sketch1.
5. Click File > Save As.

How do I add a weldment in SOLIDWORKS?

First, start by adding the “Weldment” tool to your Command Manager. To turn this feature on, simply right click on the Command Manager and choose “Weldments” from the extended dropdown menu that appears on the left side of your screen. This will allow you to start putting structural members in your design.
