Where Do You Put Drip Edge

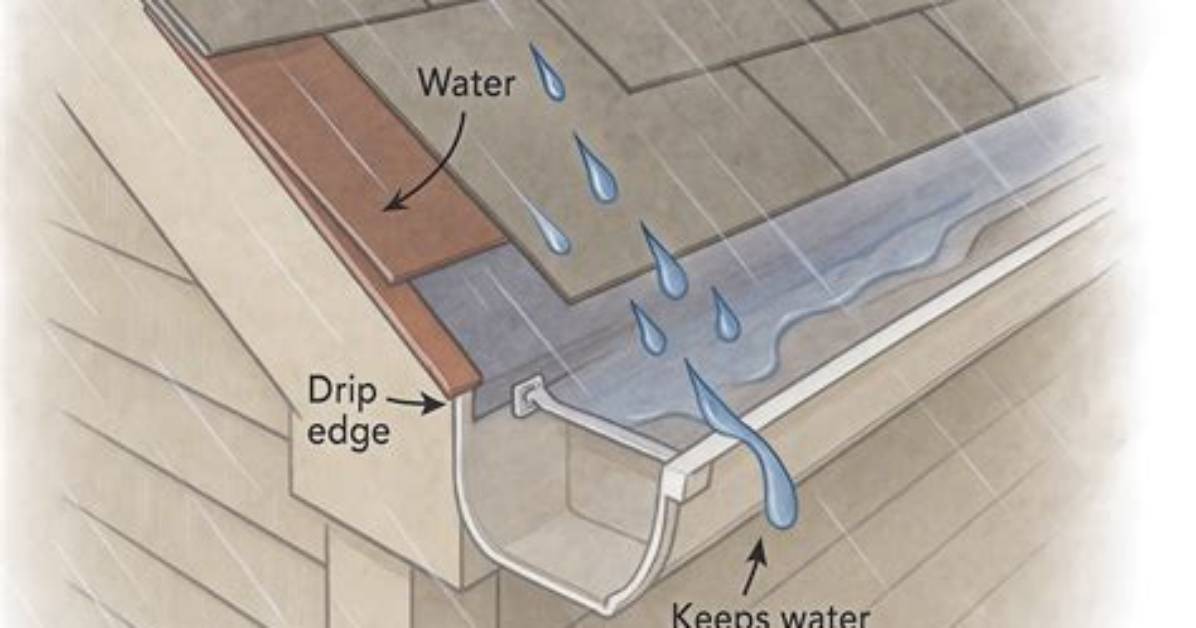

Drip edge is installed around the whole perimeter of the roof. It is used to hold the underlayments down and create a watertight seal around the edge of the roof. Only the face of the metal is seen and is usually just white one to one and half inch stripe located right under the shingles and above the fascia.

Does Ice and water Shield go over or under drip edge?

(The drip edge will be installed over the ice and water protector and other underlayments at roof rake edges.) You should install ice and water protector before other underlayments, including roof felt. Around roof features like dormers and chimneys, you should place ice and water protector below flashing.

Where does the nail drip edge go?

Nail the drip edge to the roof deck with minimum 12-gage roofing nails spaced 8 to 10-inches on center and 1-½ to 3-inches from the edge of the sheathing. Adjacent drip edge pieces should be lapped minimum 2 inches. Asphalt shingles should overhang the exterior edge of the drip edge by ¼ to ¾-inch.
