Where Is the Illuminator on a Microscope?

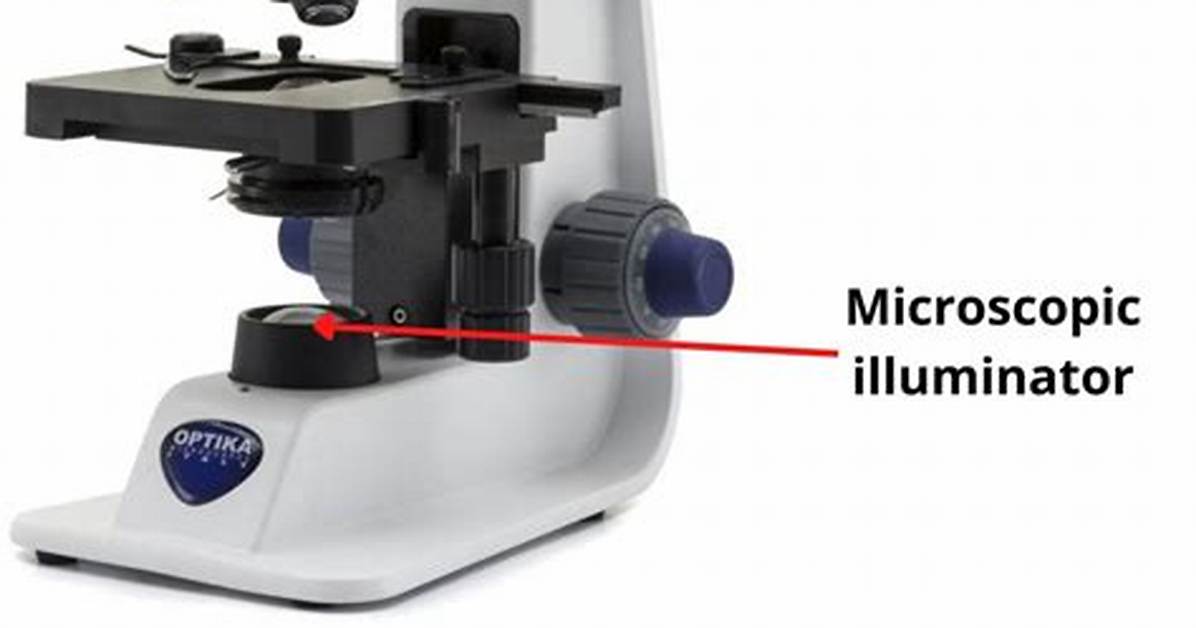

Illuminator. is the light source for a microscope, typically located in the base of the microscope. Most light microscopes use low voltage, halogen bulbs with continuous variable lighting control located within the base.

What is the illuminator on a microscope?

Illuminator. There is an illuminator built into the base of most microscopes. The purpose of the illuminator is to provide even, high intensity light at the place of the field aperture, so that light can travel through the condensor to the specimen.

Which parts of the microscope is in illuminating part?

It consists of mainly three parts: Mechanical part - base, c-shaped arm and stage. Magnifying part - objective lens and ocular lens. Illuminating part - sub stage condenser, iris diaphragm, light source.
